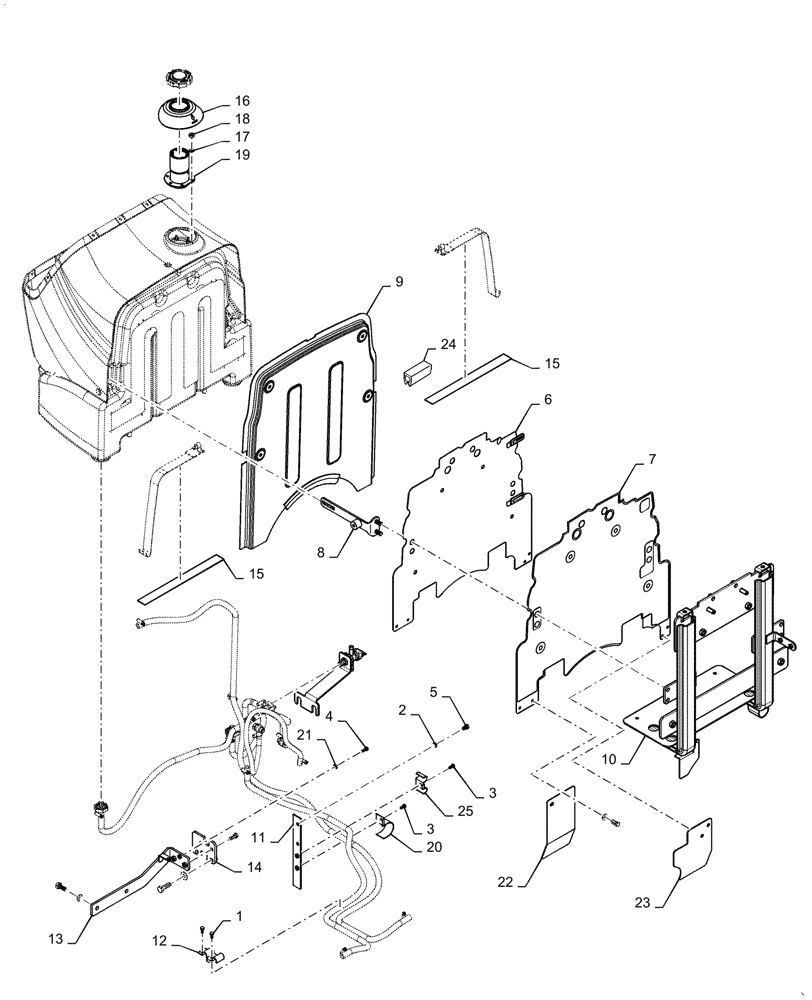

Запчасти Case IH FARMALL 60A (10.216.AI[02]) - FUEL TANK (10) - ENGINE

1

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

3

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

4

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

5

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

6

47814536

BRACKET

Shield Assy, Firewall

1шт.

7

47904129

SHIELD

Shield, Heat, Firewall

1шт.

8

47718860

BRACKET

Assy, Fuel Tank Strap

2шт.

9

47723219

SEAL

Seal, Rubber, Fire Wall

1шт.

10

47814568

BRACKET

Assy, H Frame

1шт.

11

47751523

BRACKET

Fuel Line

1шт.

12

47803086

BRACKET

U - Fuel Line

2шт.

13

47738841

BRACKET

Assy, Prefilter Downdraft

1шт.

14

47738842

BRACKET

Assy, Prefilter

1шт.

15

87732465

PAD

Fuel Cock

1шт.

16

47754504

GROMMET

Fuel Tank

1шт.

17

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

6шт.

18

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

6шт.

19

87644816

NECK FILLER

Assy - Fuel Tank

1шт.

20

47751521

CLAMP

Harness Support

1шт.

21

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

4шт.

22

47814590

HEAT SHIELD

RH, Heat Shield

1шт.

23

47814591

HEAT SHIELD

LH, Heat Shield

1шт.

24

82000807

MOLDING

Channel, Fuel Tank Abutment

1шт.

25

47726788

BRACKET

U, Fuel Tank

1шт.
