(55.100.BQ[01]) - HARNESS MAIN, VM_ALT_65/75HP, WITHOUT CCV HEATER

Запчасти Case IH FARMALL 60A (55.100.BQ[01]) - HARNESS MAIN, VM_ALT_65/75HP, WITHOUT CCV HEATER (55) - ELECTRICAL SYSTEMS

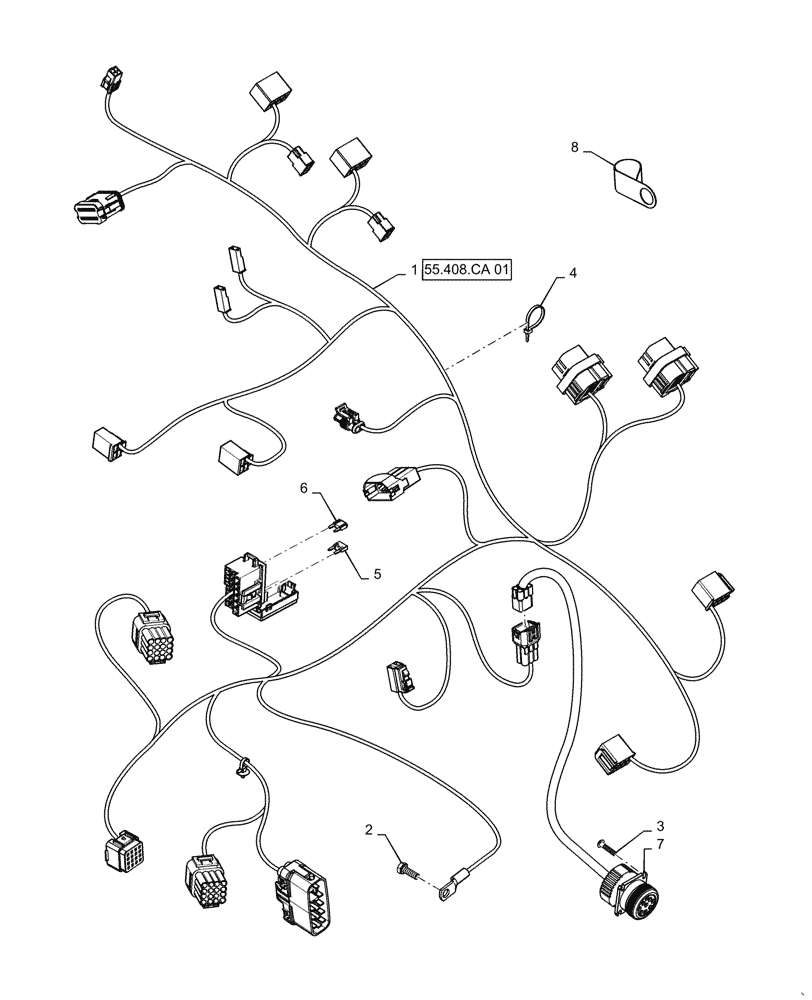

Схема запчастей Case IH FARMALL 60A - (55.100.BQ[01]) - HARNESS MAIN, VM_ALT_65/75HP, WITHOUT CCV HEATER (55) - ELECTRICAL SYSTEMS
55.408.ca 01
8
1
7
3
4
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47795382

WIRE HARNESS

Main, Without CCV Heater

1шт.

2

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

3

47814622

SCREW

Tapping, Flat Head

4шт.

4

14560187

COLLAR,199mm L

3шт.

5

84127702

FUSE,10A, Mini, Red

Mini

4шт.

6

84182879

FUSE

Minival, 15A

4шт.

7

47739499

WIRE HARNESS

Diagnostic Connector

1шт.

8

87583439

COLLAR

Clamp, Wiring Harness

3шт.
