Запчасти Case IH FARMALL 60A (37.120.AX[01]) - VAR - 337558 - THREE POINT HITCH WITH FLEX LINK ENDS, ARM LINK AND LIFTING ROD ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

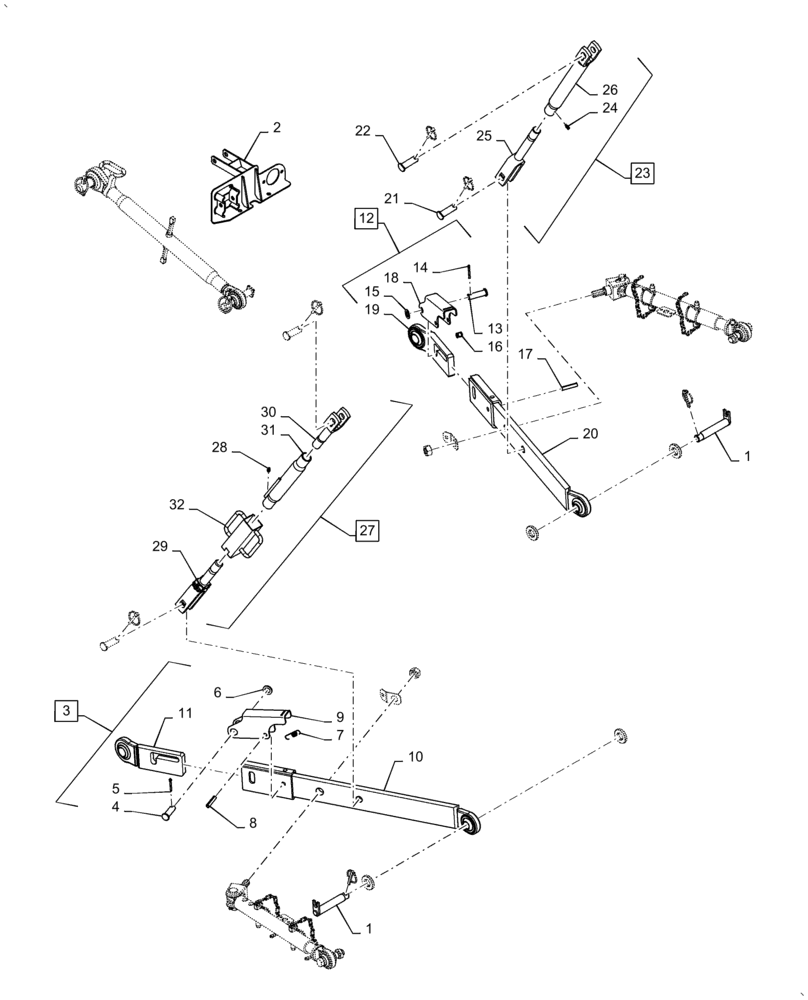

Схема запчастей Case IH FARMALL 60A - (37.120.AX[01]) - VAR - 337558 - THREE POINT HITCH WITH FLEX LINK ENDS, ARM LINK AND LIFTING ROD ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
26
28
10
11
2
1
12
21
27
14
19
25
22
7
16
24
29
4
31
17
5
18
23
3
13
15
1
30
20
32
8
6
9

Артикул

Название

Примечание

Количество

1

84296970

PIN,22mm OD x 133mm L

Assy, Lower Link Mounting

2шт.

2

84176149

BRACKET

Assy, Rear Auxilary Valve

1шт.

3

84180552

ARM

Link Assy, Telescopic Lower RH, Incl 4 - 11

1шт.

4

381928

ROLL PIN,10mm OD x 50mm L, Slotted

Slotted Spring

1шт.

5

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

6

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

7

86532826

SPRING,Extension, 60.7mm L

Link Cover

1шт.

8

84535109

CLEVIS PIN

Flex Lower Link

1шт.

9

86402627

COVER

Link

1шт.

10

84403492

LOWER LINK

RH Telescopic

1шт.

11

84403493

TRACK ROD END ASSY

RH Telescopic

1шт.

12

84180543

ARM

Link Assy, Telescopic Lower LH, Incl 13 - 20

1шт.

13

381928

ROLL PIN,10mm OD x 50mm L, Slotted

Spring

1шт.

14

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

15

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

16

86532826

SPRING,Extension, 60.7mm L

Link Cover

1шт.

17

84535109

CLEVIS PIN

Flex Lower Link

1шт.

18

86402627

COVER

Link

1шт.

19

84403495

TRACK ROD END ASSY

LH Telescopic

1шт.

20

84403494

LOWER LINK

LH Telescopic

1шт.

21

87571328

PIN

Lower

2шт.

22

87571327

PIN

Upper

2шт.

23

87560630

ROD

Lift LH, Incl 24 - 26

1шт.

24

933756R1

LUBE NIPPLE,M6 x 1

Fitting

1шт.

25

84366625

FORK

Assy

1шт.

26

84366623

TUBE

Assy, Lift Rod

1шт.

27

87738495

LIFTING ROD

RH, Incl 28 - 32

1шт.

28

933756R1

LUBE NIPPLE,M6 x 1

Fitting

2шт.

29

84366641

FORK

Assy, Upper Part Lift Rod

1шт.

30

84366633

FORK

Assy

1шт.

31

84366632

TUBE

Assy, Lift Rod

1шт.

32

84266170

HANDLE

Right Lift Link

1шт.

Выбрано товаров: 32
