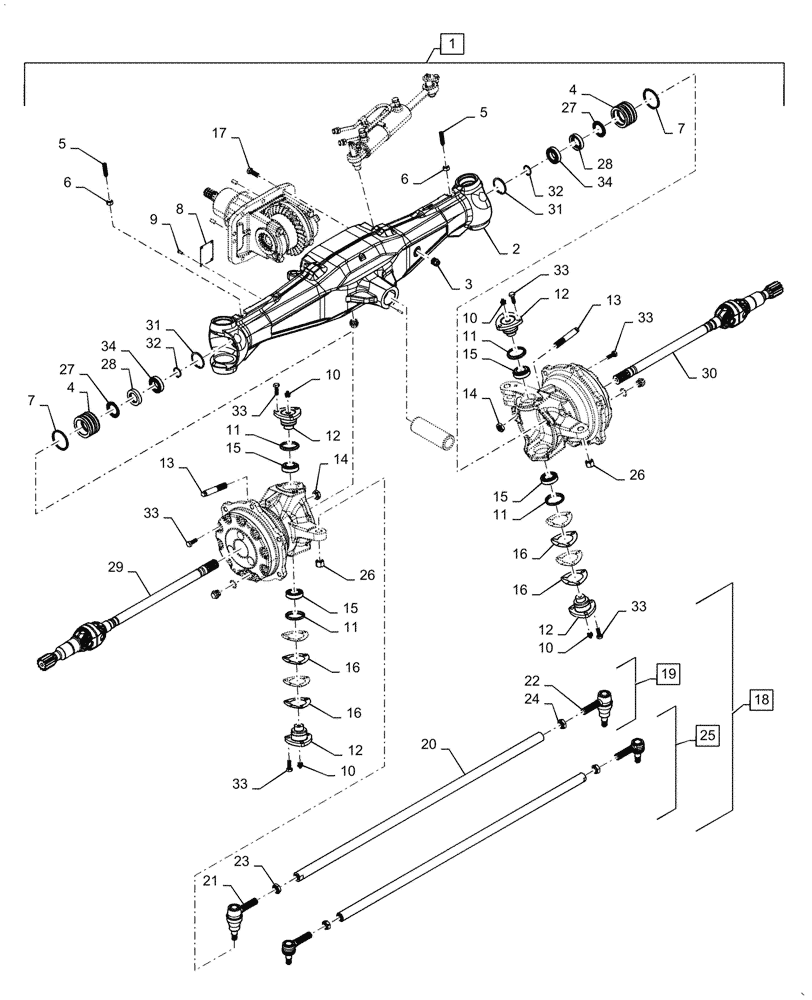

Запчасти Case IH FARMALL 60A (21.182.AG[04]) - FRONT AXLE HOUSING, TIE-ROD ASSY (21) - TRANSMISSION

1

84256094

FRONT AXLE

Incl 2 - 34

1шт.

2

84121549

AXLE HOUSING

Front

1шт.

3

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

Pipe

1шт.

4

84357059

RETAINER

Axle Half Shaft

2шт.

5

84217038

SET SCREW,M12 x 1.25 x 47.5mm, Cl 10.9

2шт.

6

16101511

NUT,M12 x 1.25, Cl 8

2шт.

7

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

8

87489988

NAMEPLATE

Front Axle

1шт.

9

13683801

RIVET,Flat, 2.9mm OD x 5.35mm L

Name Plate

4шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

Fitting

4шт.

11

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

Single Lip

4шт.

12

5165271

BALL STUD,M14 x 1.5 x 46mm

Pin Steering Knuckle

4шт.

13

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

14

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

15

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

4шт.

16

84284234

SHIM

1mm

1шт.

16

84284233

SHIM

0.5mm

1шт.

16

5100793

SHIM,.30mm Thk

Knuckle

1шт.

16

5100792

SHIM,.25mm Thk

Knuckle

1шт.

16

5100791

SHIM,.20mm Thk

Knuckle

1шт.

16

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

Knuckle

1шт.

16

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

Knuckle

1шт.

17

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

8шт.

18

47505479

TRACK ROD ASSY

Incl 19, 25

1шт.

19

84483305

ELASTIC TIE ROD

Track Assy, Incl 20 - 24

1шт.

20

84483307

TUBE

Tie Rod

1шт.

21

84477735

BALL JOINT HEAD

LH

1шт.

22

84477736

BALL JOINT HEAD

RH

1шт.

23

84477737

NUT

Tie Rod

1шт.

24

84477738

NUT

Tie Rod

1шт.

25

84543102

TRACK ROD ASSY

Incl 26 - 30

1шт.

26

12575911

NUT,M16 x 1.5, Cl 8

2шт.

27

4997436

RETAINER,35.2mm ID x 55mm OD

Disc

2шт.

28

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

Oil

2шт.

29

84295293

HALF SHAFT

Articulated Axle, RH

1шт.

30

84295295

HALF SHAFT

Articulated Axle, LH

1шт.

31

11060676

CIRCLIP,M55, Int

4шт.

32

11067876

SNAP RING,M30, Ext

2шт.

33

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

32шт.

34

84263835

BALL BEARING,30mm ID x 50mm OD x 13mm W

2шт.
