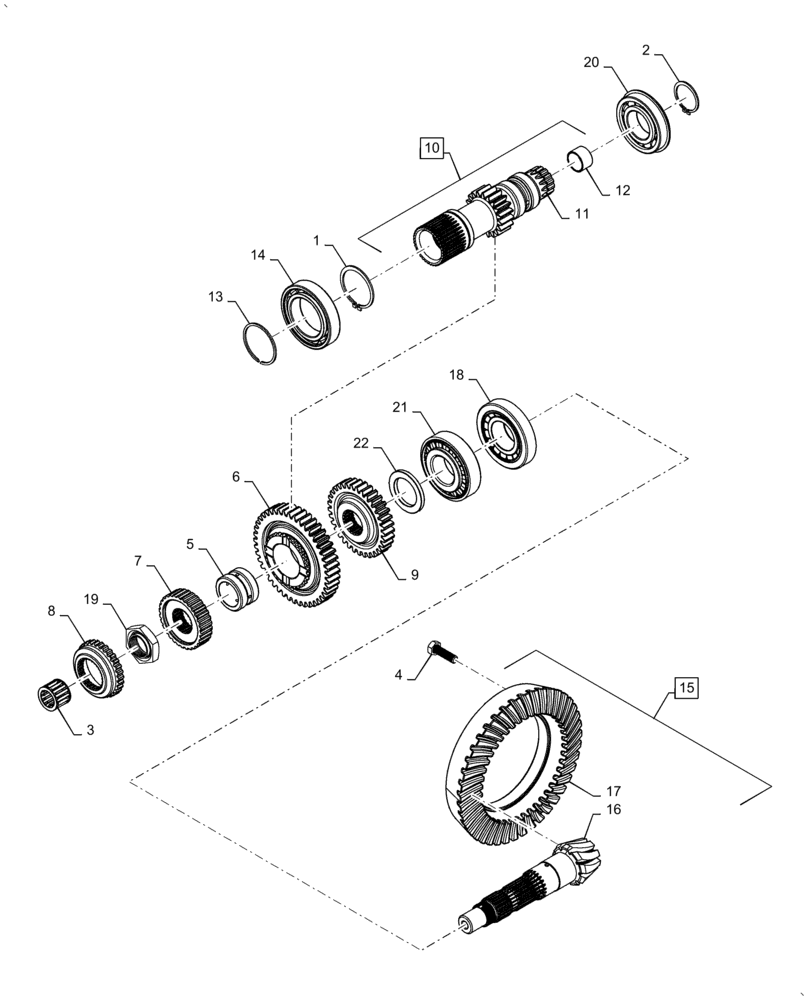

Запчасти Case IH FARMALL 60A (21.168.AI[01]) - HI-LO TRANSMISSION GEARS & SHAFT, BEARING (21) - TRANSMISSION

1

11069576

SNAP RING,M55, Ext

Retaining

1шт.

2

11068876

SNAP RING,M40, Ext

Retaining

1шт.

3

87370425

NEEDLE BEARING,25.4mm ID x 33.34mm OD x 25.4mm W

Roller

1шт.

4

87747707

LOCK BOLT,Hex, M10 x 1.25 x 35mm

10шт.

5

87370382

BUSHING

Driven Gear Range

1шт.

6

87370385

GEAR

Low Range Output

1шт.

7

87370388

HUB

Range

1шт.

8

87370474

GEAR

High Direct

1шт.

9

87560546

SPACER

Driven Gear Range

1шт.

10

84319173

SHAFT

Assy Range with Bush, Incl 11, 12

1шт.

11

84319174

SHAFT

Drive Range

1шт.

12

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

13

84252237

RING

Snap, External

1шт.

14

28042510

BALL BEARING,55mm x 90mm x 18mm

1шт.

15

84367891

BEVEL PINION

Gear, Ring, Assy, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, Transmission Spline, Incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

Crown Wheel, Incl in 15

1шт.

18

84384239

BEARING ASSY

Roller

1шт.

19

87370422

NUT

Pinion Shaft Pre-Load

1шт.

20

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

21

84384241

SPH ROLLER BEARING

1шт.

22

84553146

SPACER

Pinion Shaft

1шт.
