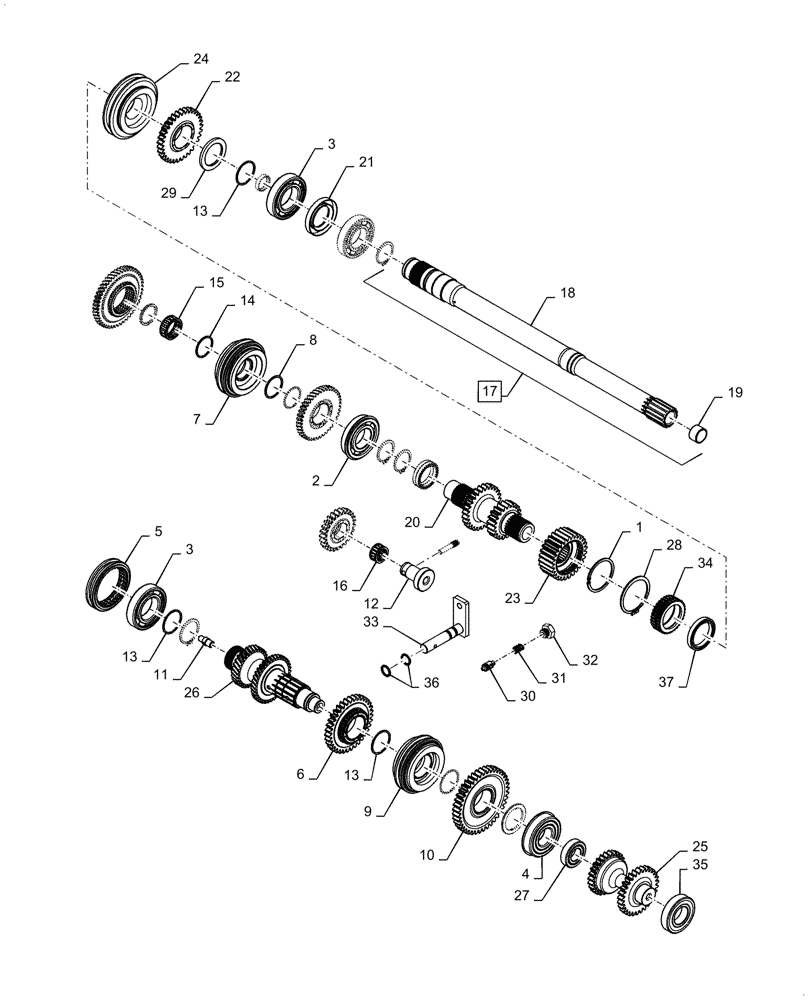

Запчасти Case IH FARMALL 60A (21.140.AE[02]) - TRANSMISSION GEAR, SHAFT AND BEARINGS (21) - TRANSMISSION

1

11068375

LOCKING RING

Circlip

1шт.

2

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

2шт.

4

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

5

87370421

SLEEVE,Z30

1шт.

6

84366606

GEAR

Synchromesh Driven 2nd Assembly

1шт.

7

84533334

SYNCHRONIZER

1шт.

8

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

9

84533333

SYNCHRONIZER

1шт.

10

84494576

GEAR

Synchromesh Driven 1st Assembly

1шт.

11

87482697

HYD CONNECTOR

1шт.

12

87554460

SHAFT

Reverse Gear Idler

1шт.

13

84151049

SNAP RING

4шт.

14

84129768

RING

Retaining

2шт.

15

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

Roller

1шт.

16

87370459

NEEDLE BEARING,25mm ID x 32mm OD x 16mm W

Roller

1шт.

17

84184438

SHAFT

Assy, Hollow Input Assembly Shuttle, Incl 18, 19

1шт.

18

87543026

SHAFT

Hollow Input

1шт.

19

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

20

84531164

SHAFT

Drive Speed Shuttle

1шт.

21

87542755

SEAL

Oil

1шт.

22

47699906

GEAR

Reverse Driving

1шт.

23

87542746

GEAR

Forward Driving

1шт.

24

87542748

SYNCHRONIZER

Single Cone

1шт.

25

87542750

GEAR

Cluster Lat Shaft

1шт.

26

84233054

DRIVEN SHAFT

Speed

1шт.

27

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

Deep Groove

1шт.

28

11070276

SNAP RING,M68, Ext

1шт.

29

87554461

SPACER

Hollow Shaft

1шт.

30

87631284

JOINING ELEMENT

Lock, Shuttle Position

1шт.

31

87631285

SPRING

Shuttle Interlock

1шт.

32

87631286

BOLT,Locking Shuttle, M8 x 1.25 x 20mm

1шт.

33

87676694

ROD

Lever Assy

1шт.

34

87543027

GEAR

Sleeve, Shuttle

1шт.

35

84179930

BALL BEARING

Deep Groove

1шт.

36

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

37

87558407

NEEDLE ROLLER,40mm ID x 52mm OD x 7mm W

2шт.
