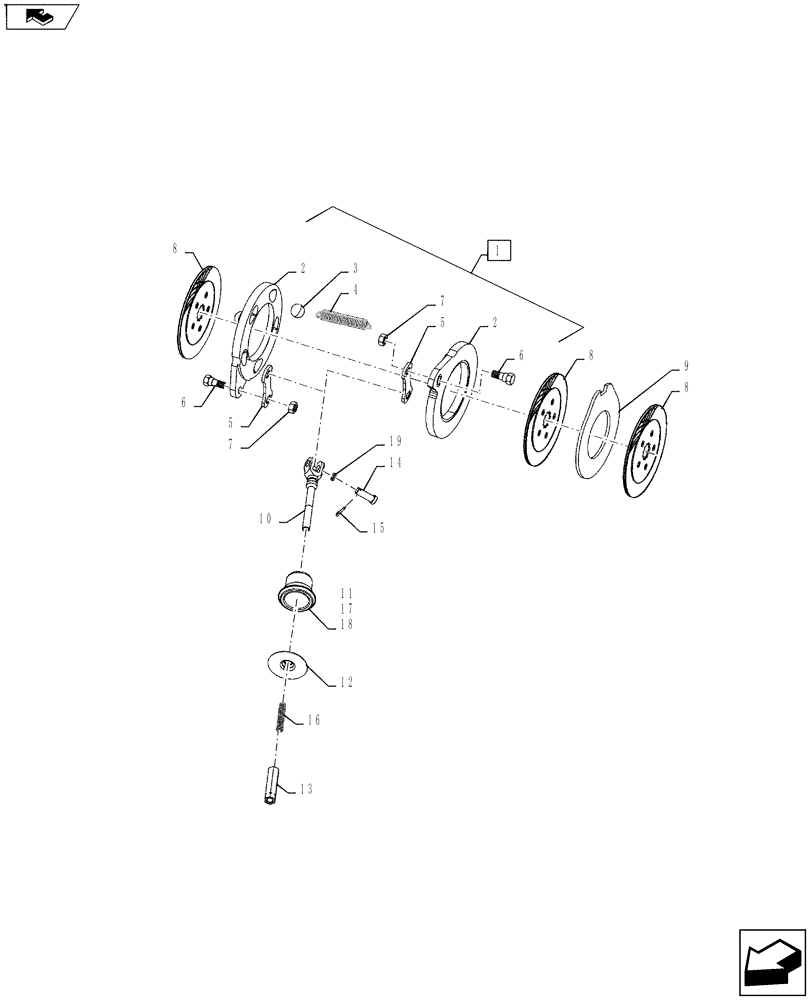

Запчасти Case IH FARMALL 55A (33.120.01[02]) - BRAKE DISCS - LH (33) - BRAKES & CONTROLS

1

5129473

BRAKE ASSY.

Includes Ref. 2-7

1шт.

2

5086161

BRAKE DISC

2шт.

3

20063060

BALL,M22

10шт.

4

5086612

SPRING,20.4mm OD x 24mm, Free Length

Extension

6шт.

5

5086609

LEVER

4шт.

6

5086610

PIN,12.3mm OD x 40.7mm L

Wheel Bolt

4шт.

7

5086611

NUT,3/8"-24 UNF

4шт.

8

87387603

BRAKE DISC

3шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

8

84386701

BRAKE DISC

3шт.

9

5119327

BRAKE DISC,94.3mm ID x 171.1mm OD x 2.65mm Thk

Stator

1шт.

10

5117517

TIE-ROD

1шт.

11

5117518

BELLOWS

Includes Ref. 17-18

1шт.

12

87387625

GUARD

For Brake, Tie Rod Bellow

1шт.

13

44904471

ADJUSTING SLEEVE,M12 x 1.5

M12 x 1

1шт.

14

5145473

PIN

1шт.

15

10796401

COTTER PIN,M3.2 x 18

1шт.

16

5117515

SPRING

DO=16, DW=1.5, L=63

1шт.

17

NSS

NOT SOLD SEPARAT

Insert (Order Ref. 11)

1шт.

18

NSS

NOT SOLD SEPARAT

Seal, (Order Ref. 11)

1шт.

19

5111199

WASHER,11.2mm ID x 17mm OD x 1.5mm Thk

M11

1шт.
