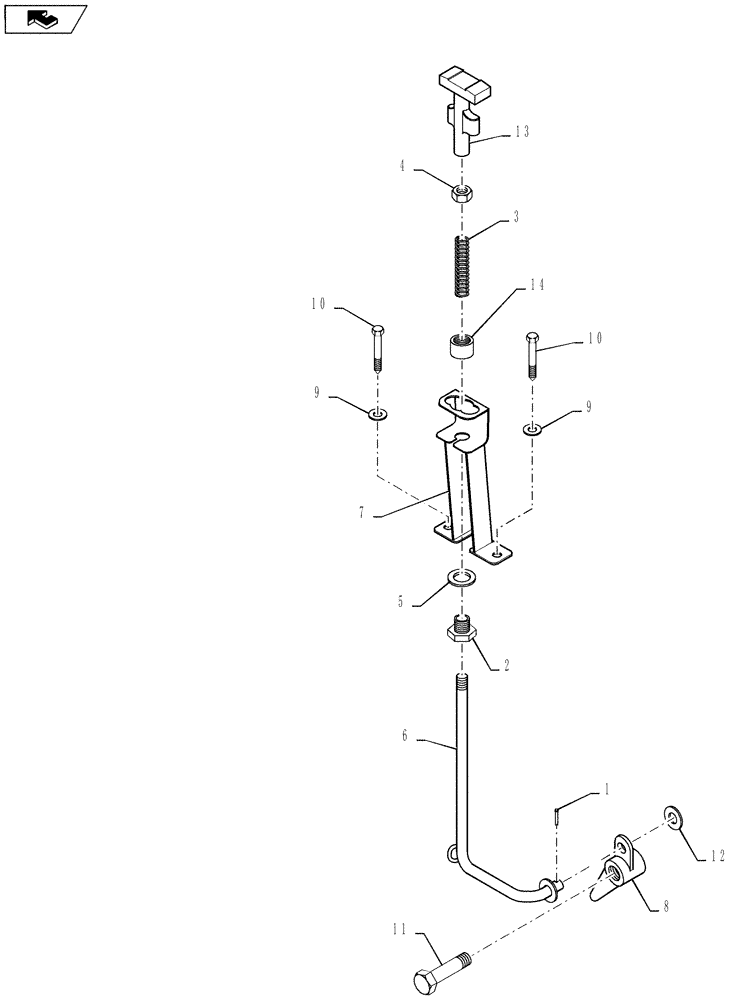

Запчасти Case IH FARMALL 55A (33.110.01) - PARKING BRAKE CONTROL (33) - BRAKES & CONTROLS

1

10734401

COTTER PIN,M2 x 22

1шт.

2

82822977

BOLT,M14 x 1.5 x 11mm

M4 x 1.5

1шт.

3

82822974

SPRING

Parking Brake

1шт.

4

82824279

NUT

Parking Brake Rod, M6 x 1

1шт.

5

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

6

84181083

HAND BRAKE

Rod

1шт.

6

84331228

ROD

1шт.

EFFECTIVE 9/1/11 IN PRODUCTION

1шт.

7

84181082

BRACKET

Assy., Parking Brake Lever

1шт.

8

84279137

PAWL

Assy., Parking Brake

1шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

10

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

11

82825621

PIN

Parking Pawl

1шт.

12

12649601

WASHER,6.15mm ID x 11.5mm OD x 2.5mm Thk

6.15 x 11.5 x 2.5

1шт.

13

84293171

KNOB

Knob Includes: Ref. 14

1шт.

14

NSS

NOT SOLD SEPARAT

Parking Brake Bushing

1шт.
