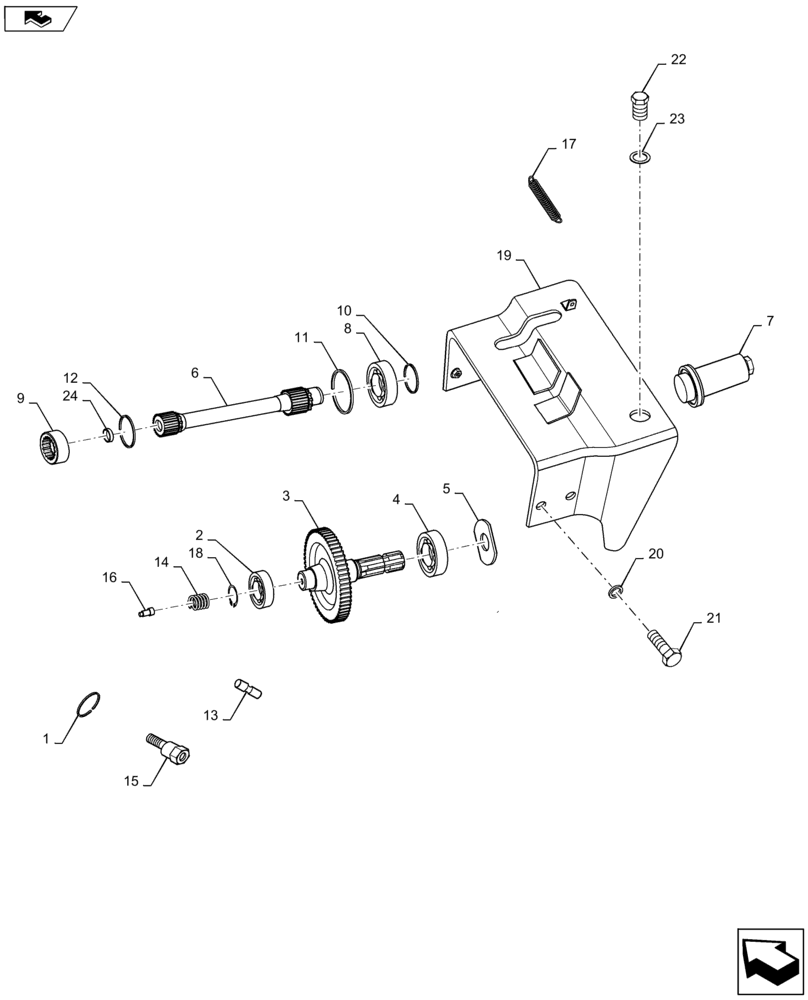

Запчасти Case IH FARMALL 55A (31.110.02) - PTO - SHAFTS AND GEARS (31) - IMPLEMENT POWER TAKE OFF

1

14459580

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

2

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

3

84548134

PTO SHAFT

Shaft, PTO Output Single Speed, NAR ISM E

1шт.

4

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

1шт.

5

87377447

SPACER

1шт.

6

87597610

SHAFT

1шт.

7

87370472

COVER

Cover PTO Shaft

1шт.

8

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

1шт.

9

84178650

COUPLING

1шт.

10

11067876

SNAP RING,M30, Ext

1шт.

11

11061576

SNAP RING,M72, Int

1шт.

12

11059476

SNAP RING,M35, Int

1шт.

13

5198711

PIN,10mm OD x 35mm L

2шт.

14

47127604

SPRING,Compression, 31mm OD x 33.3mm L

1шт.

15

47130774

PIN,13.5mm OD x 22mm L

1шт.

16

84178649

SHAFT

1шт.

17

NS

NOT SERVICED

Spring, PTO Shield (87363141)

1шт.

18

11067276

SNAP RING,M24, Ext

1шт.

19

87560069

SHIELD

1шт.

20

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

21

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

22

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

23

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

24

87370525

RUBBER SEAL

1шт.

25

84216795

OIL SEAL

PTO Double Lip

1шт.

NOT ILLUSTRATED

1шт.
