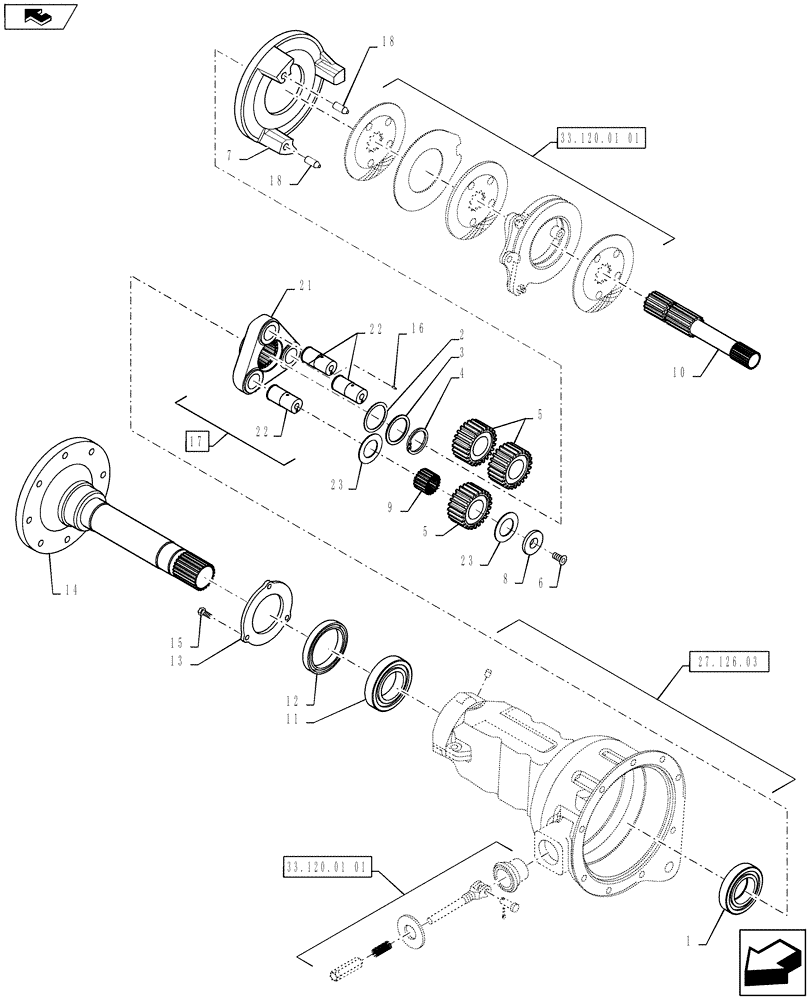

Запчасти Case IH FARMALL 55A (27.126.04[02]) - FINAL DRIVE - RH (27) - REAR AXLE SYSTEM

1

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

FARMALL 45A

1шт.

1

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

FARMALL 55A

1шт.

2

87387607

SHIM

1шт.

3

87387605

SPACER

2шт.

4

5138419

SNAP RING,M50

1шт.

5

87387596

PINION

Sprocket, Driven, FARMALL 45A

3шт.

5

87387887

DRIVEN SPROCKET

FARMALL 55A

3шт.

6

16323321

BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND

FARMALL 45A, Serial Range: -`0

3шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

6

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

FARMALL 45A

3шт.

6

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

FARMALL 55A

3шт.

7

87387589

SUPPORT

Body, Brake, FARMALL 45A

1шт.

7

87387885

BODY

Brake, Support, FARMALL 55A

1шт.

8

87654057

SPACER

3шт.

9

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

10

87370377

SHAFT

RH

1шт.

11

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

D= 60 x 110 x 22, FARMALL 45A

1шт.

11

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

D= 60 x 110 x 22, FARMALL 55A

1шт.

12

5131916

SEAL,85mm ID x 110mm OD x 16mm Thk

D= 85 x 110 x 16, FARMALL 45A

1шт.

12

87387890

SEAL

D= 85 x 110 x 16, FARMALL 55A

1шт.

13

87387599

CAP

Wheel Shaft Cover

1шт.

13

84544666

COVER,4mm Thk

SEAL, OIL, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

14

87387591

WHEEL SHAFT

Axle , FARMALL 45A

1шт.

14

87387886

WHEEL ASSY

Axle Shaft, FARMALL 55A

1шт.

14

84486181

AXLE

Axle Shaft, FARMALL 55A, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

15

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

16

584787

DOWEL

2шт.

17

87387592

PLANETARY GEAR

Carrier, Planetary Assy., Includes: Ref. 22 & 23

2шт.

17

84408518

PLANET CARRIER

Carrier, Planetary Assy., Includes Ref. 22 & 23 (EUR ONLY)

2шт.

18

87590370

DOWEL

1шт.

19

87661597

SCREW

M16 x 1.5 x 44 Used To Bolt Wheel To Ref. 14, FARMALL 45A, Serial Range: -`0

8шт.

NOT ILLUSTRATED

1шт.

19

87661597

SCREW

M16 x 1.5 x 44 Used To Bolt Wheel To Ref. 14, FARMALL 55A, Serial Range: -`0

8шт.

NOT ILLUSTRATED

1шт.

19

84513079

STUD

STUD, M16 x 1.5 x 47 Used to Bolt Wheel To Ref. 14, FARMALL 55A, Serial Range: -`0

8шт.

NOT ILLUSTRATED,REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

20

87758385

NUT

M16 x 1.5 Flange, Used With Ref. 19 To Bolt Wheel, FARMALL 45A, Serial Range: -`0

8шт.

NOT ILLUSTRATED

1шт.

20

87758385

NUT

M16 x 1.5 Flange, Used With Ref. 19 To Bolt Wheel, FARMALL 55A, Serial Range: -`0

8шт.

NOT ILLUSTRATED

1шт.

20

84513076

NUT

NUT, M16 x 1.5, Used With Ref. 19 To Bolt Wheel, FARMALL 55A, Serial Range: -`0

8шт.

NOT ILLUSTRATED,REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

21

87387593

PLANETARY GEAR

1шт.

21

84408275

Carries, Planetary, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

22

87387595

PIN

Final Drive

3шт.

22

84408277

Pin, Final Drive

3шт.

23

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.
