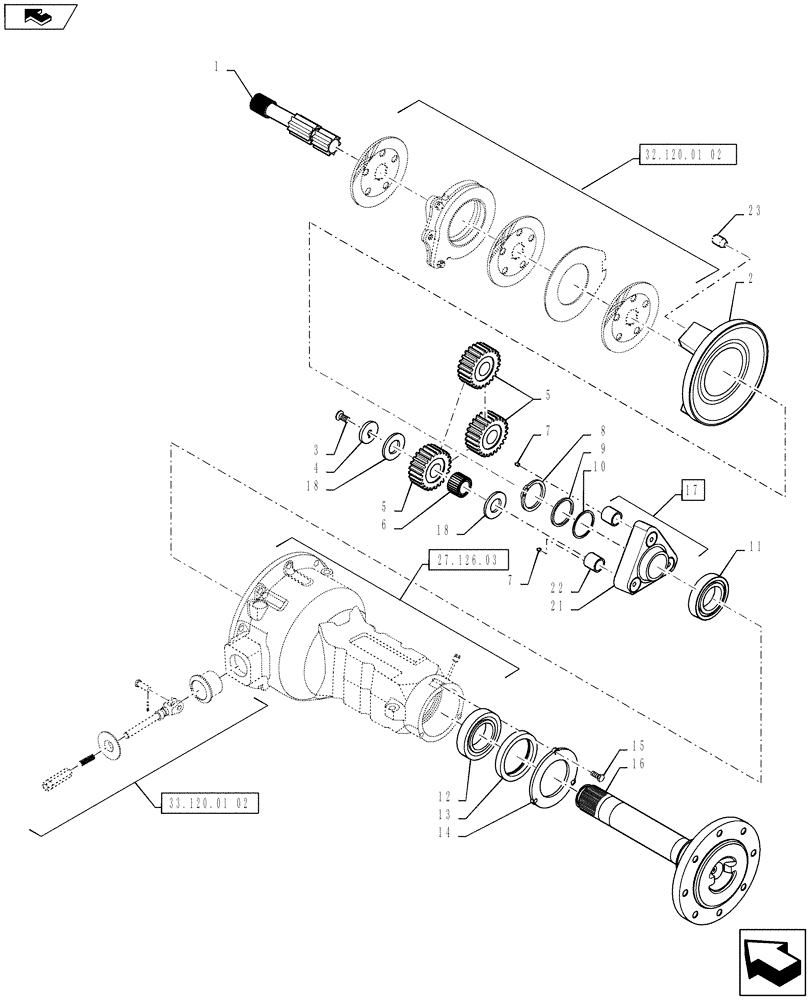

Запчасти Case IH FARMALL 55A (27.126.04[01]) - FINAL DRIVE - LH (27) - REAR AXLE SYSTEM

1

87370376

SHAFT

LH

1шт.

2

87387589

SUPPORT

Brake, FARMALL 45A

1шт.

2

87387885

BODY

Support Brake, FARMALL 55A

1шт.

3

16323321

BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND

FARMALL 45A

3шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

3

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

FARMALL 45A

3шт.

4

87654057

SPACER

3шт.

3

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

FARMALL 55A

3шт.

5

87387596

PINION

Sproket, Driven, FARMALL 45A

3шт.

5

87387887

DRIVEN SPROCKET

Pinion, FARMALL 55A

3шт.

6

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

7

584787

DOWEL

3шт.

8

5138419

SNAP RING,M50

1шт.

9

87387605

SPACER

Rear Axle

2шт.

10

87387607

SHIM

1шт.

11

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

FARMALL 45A

1шт.

11

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

FARMALL 55A

1шт.

12

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

D=60 x 110 x 22, FARMALL 45A

1шт.

12

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

D=60 x 110 x 22, FARMALL 55A

1шт.

13

5131916

SEAL,85mm ID x 110mm OD x 16mm Thk

D= 85 x 110 x 16, FARMALL 45A

1шт.

13

87387890

SEAL

D= 85 x 110 x 16, FARMALL 55A

1шт.

14

87387599

CAP

Wheel Shaft Cover

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

14

84544666

COVER,4mm Thk

SEAL, OIL

1шт.

15

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

16

87387591

WHEEL SHAFT

Assy., Axle, FARMALL 45A

1шт.

16

87387886

WHEEL ASSY

Axle Shaft, FARMALL 55A

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

16

84486181

AXLE

Axle Shaft, FARMALL 55A

1шт.

17

87387592

PLANETARY GEAR

2шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

17

84408518

PLANET CARRIER

Carrier, Planetary Assy., Includes Ref. 21-22

2шт.

18

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

19

87661597

SCREW

M16 x 1.5 x 44 Used To Bolt Wheel To Ref. 16, FARMALL 45A

8шт.

Not Illustrated

1шт.

19

87661597

SCREW

M16 x 1.5 x 44 Used To Bolt Wheel To Ref. 16, FARMALL 55A

8шт.

Not Illustrated

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

19

84513079

STUD

STUD, M16 x 1.5 x 47 Used to Bolt Wheel To Ref. 16, FARMALL 55A

8шт.

Not Illustrated

1шт.

Implement In Production After 12/11/11

1шт.

20

87758385

NUT

M16 x 1.5 Flange, Used With Ref. 19 To Bolt Wheel, FARMALL 45A

8шт.

Not Illustrated

1шт.

20

87758385

NUT

M16 x 1.5 Flange, Used With Ref. 19 To Bolt Wheel, FARMALL 55A

8шт.

Not Illustrated

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

20

84513076

NUT

NUT, M16 x 1.5, Used With Ref. 19 To Bolt Wheel, FARMALL 55A

8шт.

Not Illustrated

1шт.

Implement In Production After 12/11/11

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

21

87387593

PLANETARY GEAR

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

21

84408275

Carries, Planetary

1шт.

22

87387595

PIN

3шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

22

84408277

Pin, Final drive Planet

3шт.

23

87590370

DOWEL

12 x 30, Serial Range: -23

2шт.
