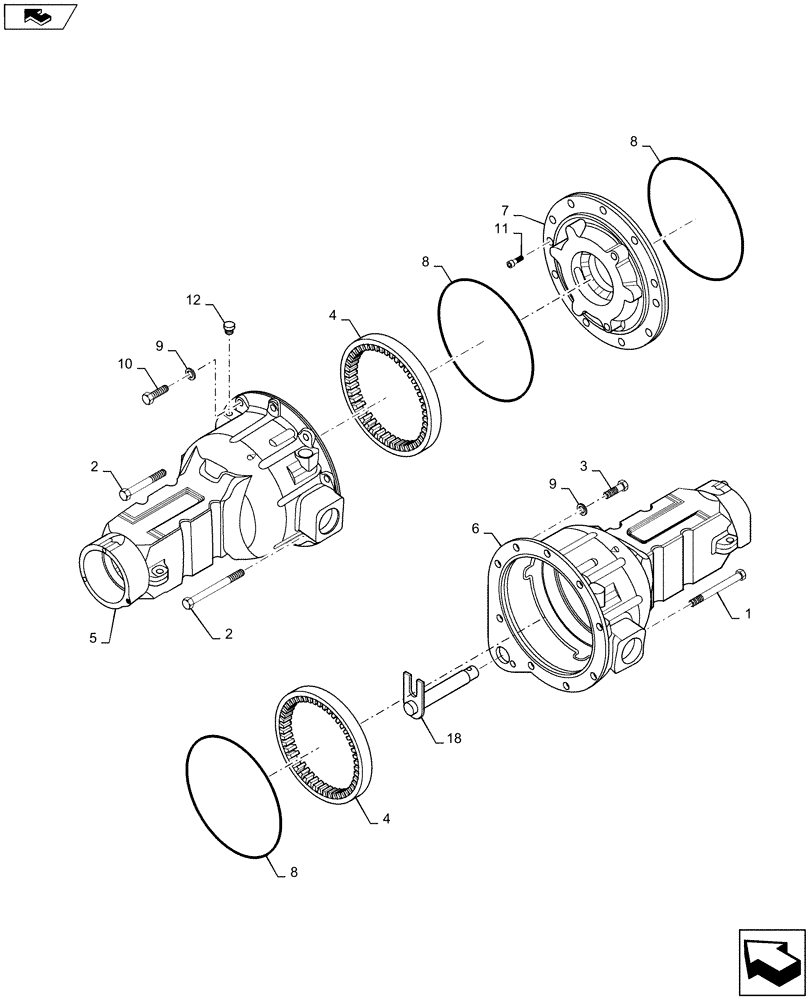

Запчасти Case IH FARMALL 55A (27.126.03) - FINAL DRIVE - HOUSING & RING GEAR (27) - REAR AXLE SYSTEM

1

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

2шт.

2

15542021

SCREW,Hex, M12 x 1.25 x 140mm, Cl 8.8

2шт.

3

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

7шт.

4

87387597

GEAR

Final Drive Internal Gear

2шт.

5

87589153

BOX

Trumpet LH, With Ring Gear, FARMALL 45A Includes Ref 4, Serial Range: -`0

1шт.

284mm DIA At The Center

1шт.

5

84262258

HOUSING

Trumpet LH, With Ring Gear, FARMALL 45A Includes Ref 4, Serial Range: -`0

1шт.

USED ON & ABOVE PIN # 6174570 2WD, 7181227 4WD,294mm DIA At The Center

1шт.

5

87589151

HOUSING

Trumpet LH, With Ring Gear, FARMALL 55A Includes Ref 4, Serial Range: -`0

1шт.

294mm DIA At The Center

1шт.

5

84262256

HOUSING

Trumpet LH, With Ring Gear, FARMALL 55A Includes Ref 4, Serial Range: -`0

1шт.

USED ON & ABOVE PIN # 7181227 2WD, 7169064 4WD|1|,294mm DIA At The Center

1шт.

6

87589154

BOX

Trumpet RH, With Ring Gear, FARMALL 45A Includes Ref 4, Serial Range: -`0

1шт.

284mm DIA At The Center

1шт.

6

84262259

HOUSING

Trumpet RH, With Ring Gear, FARMALL 45A Includes Ref 4, Serial Range: -`0

1шт.

USED ON & ABOVE PIN # 6174570 2WD, 7181227 4WD,294mm DIA At The Center

1шт.

6

87589152

BOX

Trumpet RH, With Ring Gear, FARMALL 55A Includes Ref 4, Serial Range: -`0

1шт.

284mm DIA At The Center

1шт.

6

84262257

HOUSING

Trumpet RH, With Ring Gear, FARMALL 55A Includes Ref 4, Serial Range: -`0

1шт.

USED ON & ABOVE PIN # 7181227 2WD, 7169064 4WD|1|,294mm DIA At The Center

1шт.

7

87387590

SPACER

RH, Serial Range: -`0

1шт.

284mm DIA At The Center

1шт.

7

84262446

SPACER

RH, Serial Range: -`0

1шт.

USED ON & ABOVE PIN # 6174570 2WD, 7181227 4WD,USED ON & ABOVE PIN # 7181227 2WD, 7169064 4WD|1|,294mm DIA At The Center

1шт.

8

87616310

O-RING,245mm ID x 3.53mm Width

3.53 x 245.6

2шт.

9

11198670

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

M12

14шт.

10

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

5шт.

11

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

2шт.

12

84293167

PLUG

12

4шт.

13

87387624

BUSHING

4шт.

14

87370424

DOWEL

, Serial Range: -`0

4шт.

NOT ILLUSTRATED

1шт.

17

84351730

FITTING,M10 x 1

Lube, Straight M10 x 1, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

18

84296969

PIN

1шт.
