(27.106.02) - DIFFERENTIAL

Запчасти Case IH FARMALL 55A (27.106.02) - DIFFERENTIAL (27) - REAR AXLE SYSTEM

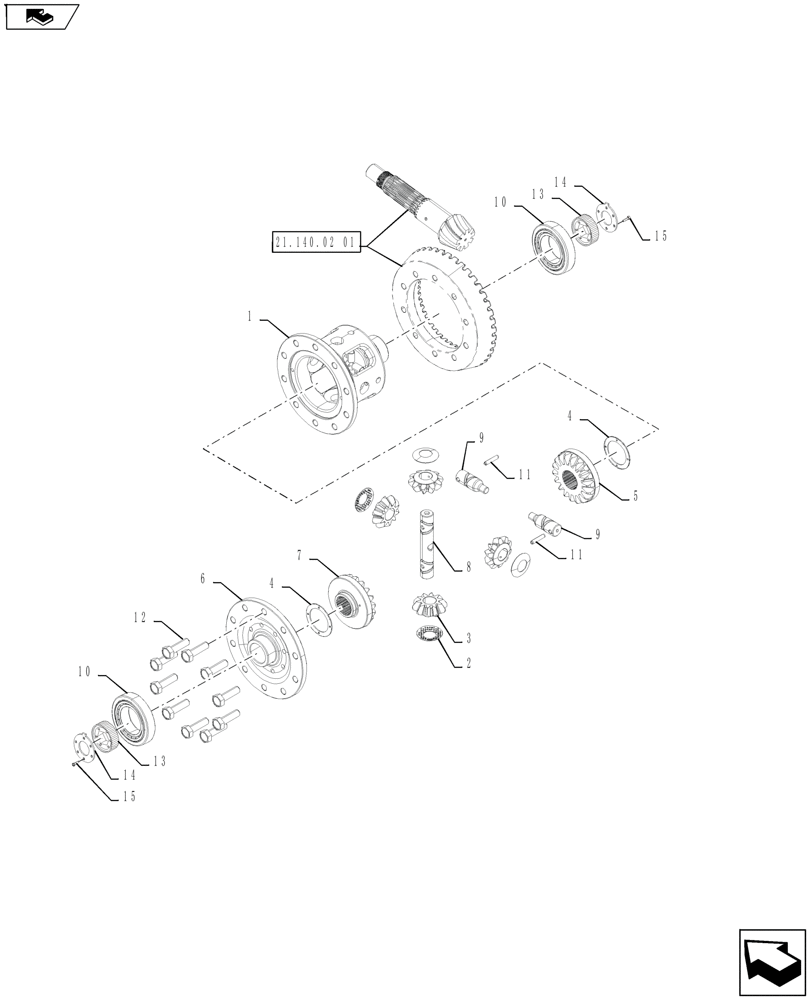

Схема запчастей Case IH FARMALL 55A - (27.106.02) - DIFFERENTIAL (27) - REAR AXLE SYSTEM
12
6
14
5
home
15
9
13
15
13
2
10
7
9
10
14
11
8
21.140.02 01
4
1
11
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47943098

HOUSING

Differential Housing, LH

1шт.

2

47938243

WASHER

Differential

4шт.

3

87370356

GEAR

Differential Pinion

4шт.

4

87370367

SEALING WASHER

Differential Bevel

2шт.

5

87370352

GEAR

Differential Side Bevel, LH

1шт.

6

87370350

BOX

Differential Housing, RH

1шт.

7

87370351

GEAR

Differential Side Bevel, RH

1шт.

8

87370353

PIN

Differential-Packed

2шт.

9

87370354

PIN

Differential Small

1шт.

10

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

D=50 x 90 x 21.75, Alternate Part 24903440

2шт.

11

14168370

LOCK PIN,M6 x 30, Slotted

2шт.

12

87747707

LOCK BOLT,Hex, M10 x 1.25 x 35mm

M10 x 35

10шт.

13

82824282

LOCK NUT

2шт.

14

5087674

LOCKING RING

2шт.

15

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

Hex.

4шт.
