(23.101.02) - FRONT AXLE DRIVESHAFT - SHIELD - 4WD

Запчасти Case IH FARMALL 55A (23.101.02) - FRONT AXLE DRIVESHAFT - SHIELD - 4WD (23) - FOUR WHEEL DRIVE SYSTEM

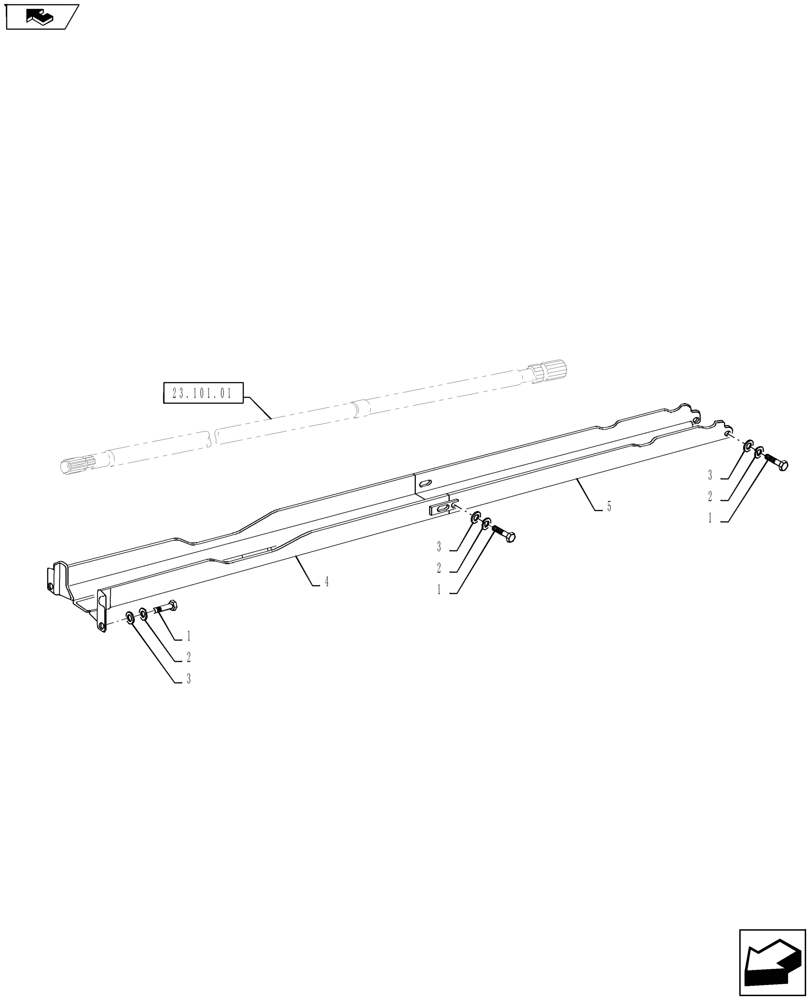

Схема запчастей Case IH FARMALL 55A - (23.101.02) - FRONT AXLE DRIVESHAFT - SHIELD - 4WD (23) - FOUR WHEEL DRIVE SYSTEM
5
23.101.01
2
3
4
2
3
1
1
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

3

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

4

87617217

COVER

1шт.

5

87617216

COVER

1шт.

Выбрано товаров: 5
