(23.101.01) - FRONT AXLE DRIVESHAFT - 4WD

Запчасти Case IH FARMALL 55A (23.101.01) - FRONT AXLE DRIVESHAFT - 4WD (23) - FOUR WHEEL DRIVE SYSTEM

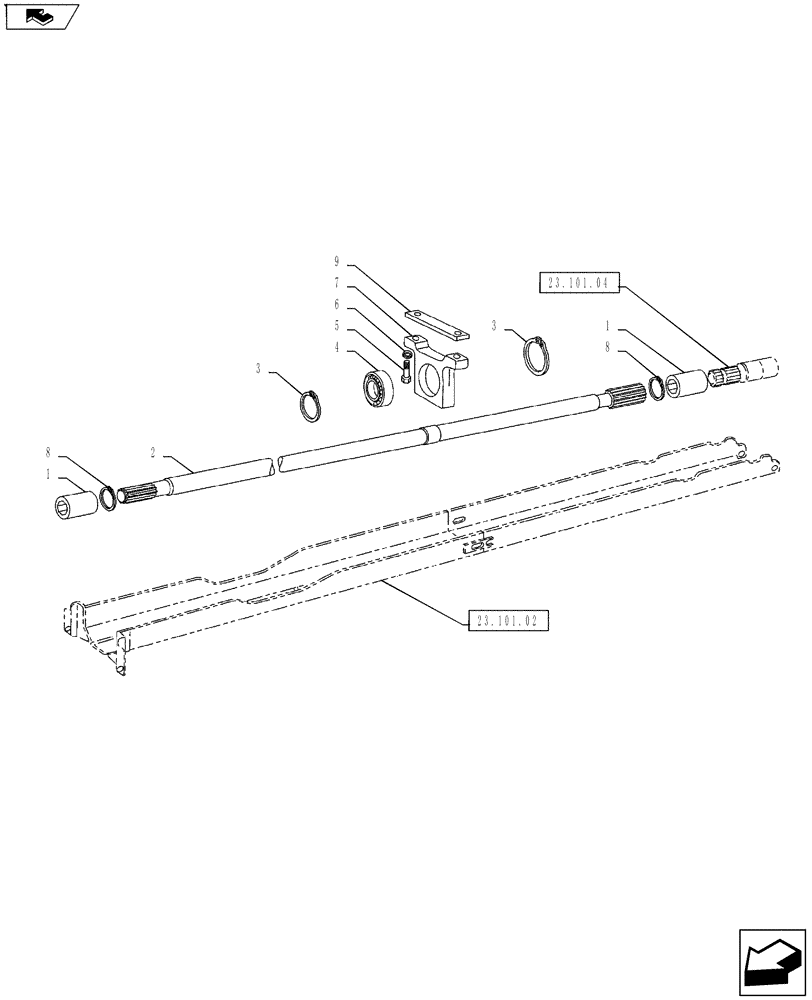

Схема запчастей Case IH FARMALL 55A - (23.101.01) - FRONT AXLE DRIVESHAFT - 4WD (23) - FOUR WHEEL DRIVE SYSTEM
23.101.02
5
3
23.101.04
6
9
8
8
1
7
3
1
2
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199243

SPLINED COUPLING

2шт.

2

84172951

SHAFT

1шт.

3

11061576

SNAP RING,M72, Int

2шт.

4

28996680

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.

5

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

2шт.

6

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

2шт.

7

5124328

SUPPORT

1шт.

8

11067776

SNAP RING,M29, Ext

2шт.

9

84180784

SPACER

1шт.
