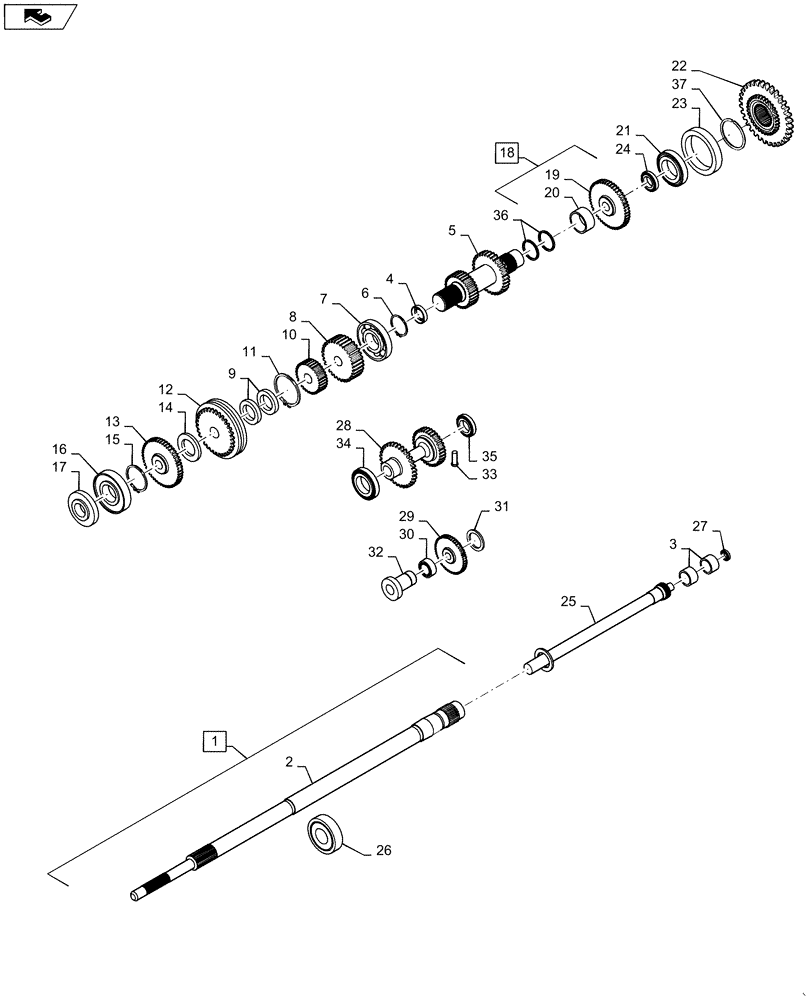

Запчасти Case IH FARMALL 55A (21.140.02[03]) - TRANSMISSIONS AND GEARS-CONSTANT MESH (21) - TRANSMISSION

1

84184438

SHAFT

Inc. Ref. 2

1шт.

2

87543026

SHAFT

1шт.

3

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

2шт.

4

4985295

SEAL

Single lip, D=25X31X7

1шт.

5

87536883

SHAFT

Drive 1st and 2nd

1шт.

6

11068876

SNAP RING,M40, Ext

2шт.

7

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

8

87542746

GEAR

1шт.

9

87558407

NEEDLE ROLLER,40mm ID x 52mm OD x 7mm W

2шт.

10

87543027

GEAR

1шт.

11

11070276

SNAP RING,M68, Ext

1шт.

12

87542748

SYNCHRONIZER

FORWARD/REVERSE

1шт.

13

87542747

GEAR

1шт.

14

87554461

SPACER

Hollow Shaft

1шт.

15

11069076

SNAP RING,M45, Ext

1шт.

16

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

17

87542755

SEAL

42x72x8

1шт.

18

84219519

GEAR

3rd speeed driving with bushing (41T)

1шт.

19

84219519

GEAR

3rd speeed driving without bushing (41T)

1шт.

20

84217387

BUSHING

1шт.

21

84252230

GEAR,25T Internal / 30T External

3rd and 4th gear

1шт.

22

84207028

GEAR

1шт.

23

87370421

SLEEVE,Z30

1шт.

24

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

1шт.

25

87536887

SHAFT

Input double clutch

1шт.

26

87345332

BEARING ASSY

1шт.

27

87370460

ROLLER CAGE BEARING

1шт.

28

87542750

GEAR

Clusster

1шт.

29

87370492

GEAR

Reverse idler (25T)

1шт.

30

87370459

NEEDLE BEARING,25mm ID x 32mm OD x 16mm W

Needle - B 25 32 16 Q

1шт.

31

87370521

WASHER

1шт.

32

87554460

SHAFT

1шт.

33

87370495

PIN

Lock, Reverse Gear

1шт.

34

84179930

BALL BEARING

Deep Groove

1шт.

35

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

Deep Groove

1шт.

36

84129768

RING

2шт.

37

84252237

RING

Snap, External

1шт.
