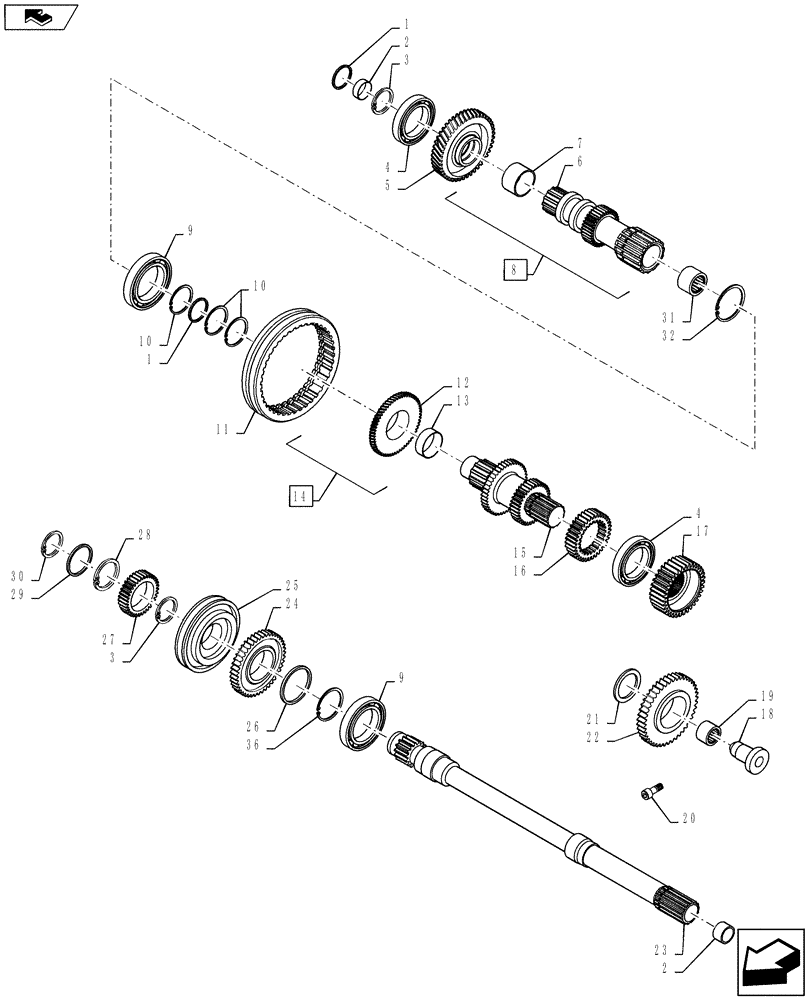

Запчасти Case IH FARMALL 55A (21.140.02[02]) - TRANSMISSION GEARS AND SHAFTS (21) - TRANSMISSION

1

84129768

RING

2шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

2шт.

3

11068876

SNAP RING,M40, Ext

2шт.

4

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

5

84495486

BEVEL GEAR

Gear Synchromesh Drive 4th

1шт.

6

87548334

SHAFT

45A, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

6

84319174

SHAFT

45A

1шт.

6

87554478

SHAFT

55A

1шт.

7

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

8

84164064

SHAFT

SHAFT 45A, Includes Ref 6,7, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

8

84319173

SHAFT

45A, Includes Ref 6,7

1шт.

8

84171773

SHAFT

SHAFT, 55A, Includes ref 6,7

1шт.

9

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

2шт.

10

84151049

SNAP RING

3шт.

11

87370421

SLEEVE,Z30

1шт.

12

84207026

GEAR

1шт.

13

84217387

BUSHING

2шт.

14

84366610

GEAR

Gear Synchromesh Drive 3rd Assy., Includes Ref. 13-14

1шт.

15

87536883

SHAFT

1шт.

16

87370436

HUB

1шт.

17

87542746

GEAR

1шт.

18

87554460

SHAFT

1шт.

19

87370459

NEEDLE BEARING,25mm ID x 32mm OD x 16mm W

Needle - B 25 32 16 Q

1шт.

20

87370495

PIN

1шт.

21

87370521

WASHER

1шт.

22

87370492

GEAR

1шт.

23

87543026

SHAFT

1шт.

24

87542747

GEAR

1шт.

25

87542748

SYNCHRONIZER

FORWARD/REVERSE

1шт.

26

87554461

SPACER

1шт.

27

87543027

GEAR

1шт.

28

11070276

SNAP RING,M68, Ext

1шт.

29

87558407

NEEDLE ROLLER,40mm ID x 52mm OD x 7mm W

2шт.

30

11068375

LOCKING RING

3шт.

31

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

1шт.

32

11068876

SNAP RING,M40, Ext

2WD

1шт.

32

84252237

RING

Snap Ring, 4WD

1шт.

33

84533333

SYNCHRONIZER

Synchronizer 1/2

1шт.

Not Illustrated

1шт.

34

84472854

SPACER

Speed Synchro

1шт.

Not Illustrated

1шт.

35

84148356

TUBE SPACER,35mm ID x 42mm OD x 3.2mm L

Oil Retainer

1шт.

Not Illustrated

1шт.

36

11069076

SNAP RING,M45, Ext

1шт.
