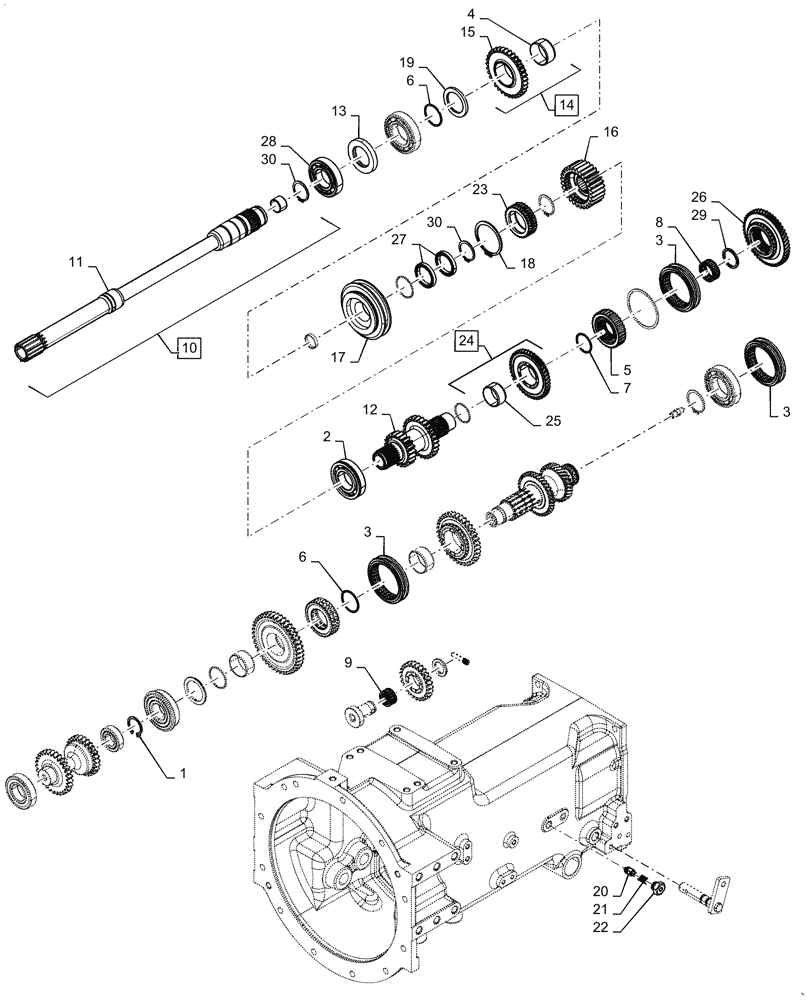

Запчасти Case IH FARMALL 55A (21.140.02[02]) - GEAR AND SHAFT ASSY, CONSTANTMESH TRANSMISSION, 8X8 SHUTTLE (21) - TRANSMISSION

1

11068375

LOCKING RING

Circlip

1шт.

2

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

87370421

SLEEVE,Z30

1шт.

4

NSS

NOT SOLD SEPARAT

Bushing

1шт.

5

84252230

GEAR,25T Internal / 30T External

Hub

1шт.

6

84151049

SNAP RING

2шт.

7

84129768

RING

Retaining

2шт.

8

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

Roller

1шт.

9

87370459

NEEDLE BEARING,25mm ID x 32mm OD x 16mm W

Roller

1шт.

10

84184438

SHAFT

Assy, Hollow Input Assy Shuttle, Incl 11

1шт.

11

87543026

SHAFT

Hollow Input

1шт.

12

84531164

SHAFT

Drive Speed Shuttle

1шт.

13

87542755

SEAL

Oil

1шт.

14

47699906

GEAR

Incl 26, 8

1шт.

15

47699904

Gear

1шт.

16

87542746

GEAR

Forward Driving

1шт.

17

87542748

SYNCHRONIZER

Single Cone

1шт.

18

11070276

SNAP RING,M68, Ext

Reg External

1шт.

19

87554461

SPACER

Hollow Shaft

1шт.

20

87631284

JOINING ELEMENT

Lock, Shuttle Position

1шт.

21

87631285

SPRING

Shuttle Interlock

1шт.

22

87631286

BOLT,Locking Shuttle, M8 x 1.25 x 20mm

Locking Shuttle

1шт.

23

87543027

GEAR

Sleeve, Shuttle

1шт.

24

84219519

GEAR

Assy 3rd Speed Driving 41teeth, Incl 25

1шт.

25

84217387

BUSHING

1шт.

26

84207028

GEAR

1шт.

27

87558407

NEEDLE ROLLER,40mm ID x 52mm OD x 7mm W

Bearing, Ball

2шт.

28

87345332

BEARING ASSY

Deep Groove Ball

1шт.

29

84148356

TUBE SPACER,35mm ID x 42mm OD x 3.2mm L

Oil Retainer

1шт.

30

11068876

SNAP RING,M40, Ext

Retaining

3шт.
