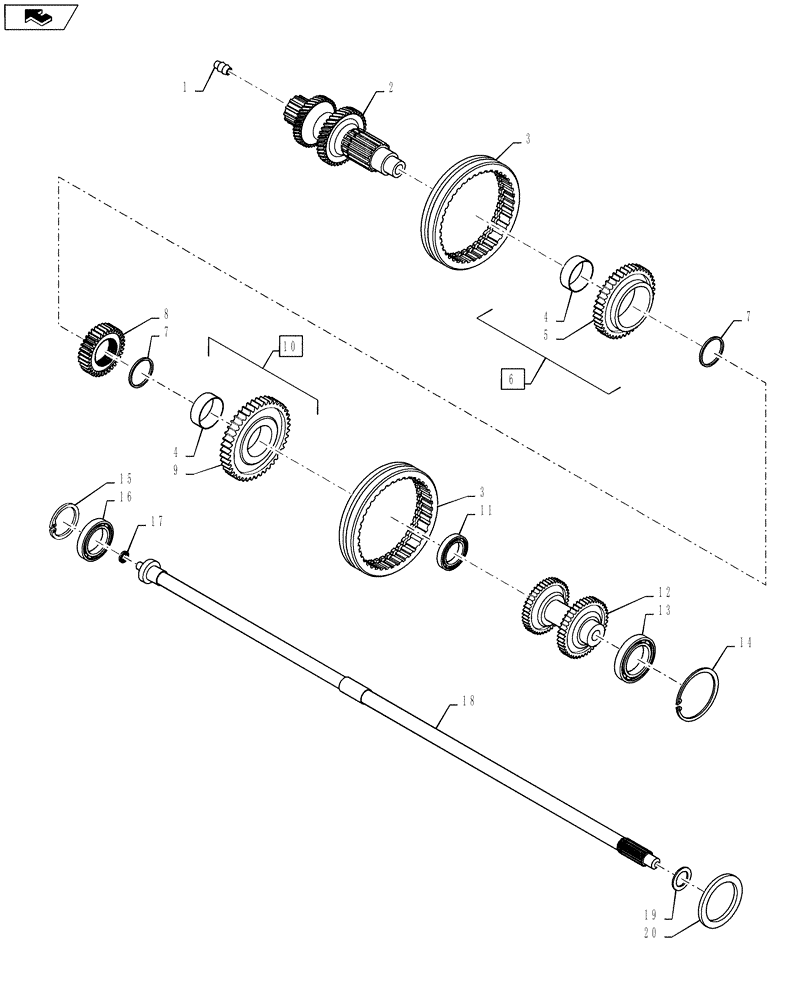

Запчасти Case IH FARMALL 55A (21.140.02[01]) - TRANSMISSION GEARS AND SHAFTS (21) - TRANSMISSION

1

87482697

HYD CONNECTOR

2шт.

2

84233054

DRIVEN SHAFT

1шт.

3

87370421

SLEEVE,Z30

3шт.

4

84217386

BUSHING

BUSHING, p/n 84217386

2шт.

5

87370428

GEAR

, Serial Range: -`0

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR, p/n 84366609

1шт.

6

84217851

GEAR

Gear,Synchromesh Driven 1st Assy., Includes Ref. 4,5, Serial Range: -`0

1шт.

6

84366606

GEAR

Gear,Synchromesh Driven 1st Assy., Includes Ref. 4,5

1шт.

7

NS

NOT SERVICED

SEAL

2шт.

8

84192939

SYNCHRONIZER

SYNCHRONIZER, 3/4, Serial Range: -`0

1шт.

8

84533334

SYNCHRONIZER

SYNCHRONIZER, 3/4

1шт.

9

NSS

NOT SOLD SEPARAT

Gear Synchromesh Driven 1st

1шт.

9

NSS

NOT SOLD SEPARAT

Gear,Synchromesh Driven 1st Assy., Includes Ref. 4,5, Serial Range: -`0

1шт.

10

84366603

GEAR

Gear Synchromesh Driven 1st Assy., Includes Ref. 4,9, Serial Range: -`0

1шт.

10

84494576

GEAR

Gear Synchromesh Driven 1st Assy., Includes Ref. 4,9

1шт.

11

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

12

87542750

GEAR

1шт.

13

84179930

BALL BEARING

1шт.

14

11070276

SNAP RING,M68, Ext

1шт.

15

11066376

SNAP RING,M15, Ext

1шт.

16

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

17

84182973

NEEDLE BEARING,Needle, 14mm ID x 20mm OD x 12mm W

1шт.

18

87536887

SHAFT

1шт.

18

84591234

SHAFT

1шт.

19

4985295

SEAL

1шт.

20

87542755

SEAL

1шт.
