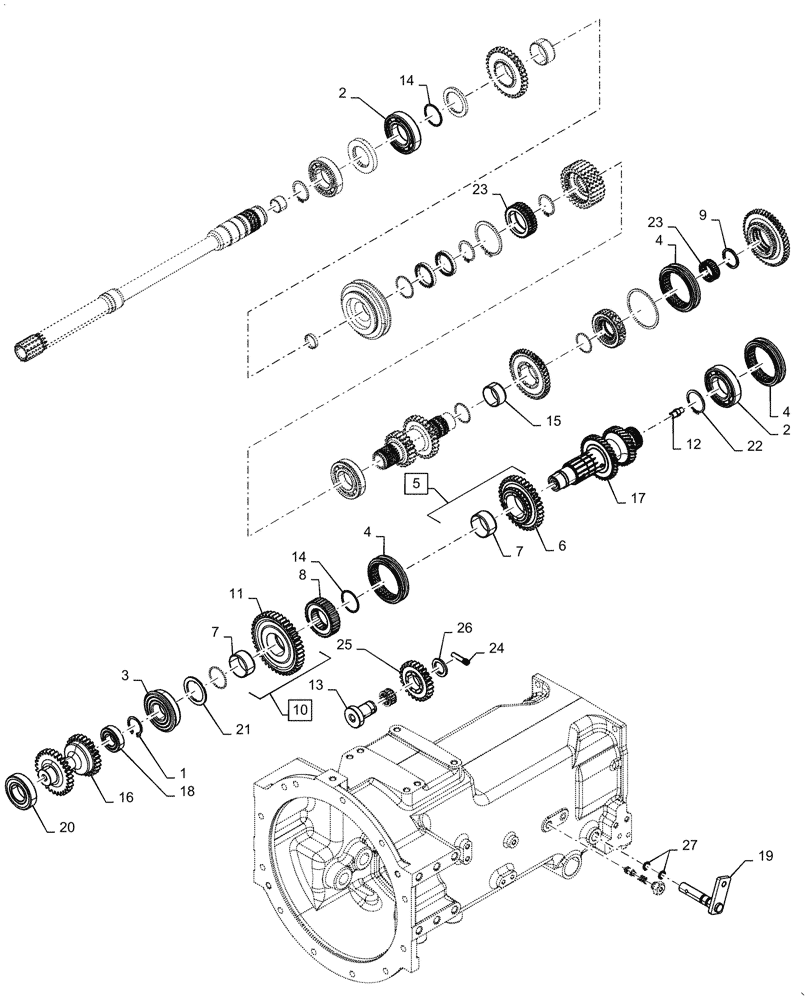

Запчасти Case IH FARMALL 55A (21.140.02[01]) - GEAR AND SHAFT ASSY, CONSTANTMESH TRANSMISSION, 8X8 SHUTTLE (21) - TRANSMISSION

1

11068375

LOCKING RING

Circlip

1шт.

2

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

2шт.

3

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

4

87370421

SLEEVE,Z30

2шт.

5

84217851

GEAR

Bushing Assy, 2nd, 35Teeth, Incl 6, 7

1шт.

6

87370428

GEAR

Driven 2nd 35Teeth

1шт.

7

NSS

NOT SOLD SEPARAT

Bushing, Incl in 5

2шт.

8

87370429

HUB

1шт.

9

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

10

84217871

BUSHING

Assy, Gear Driven 1st 41Teeth, Incl 7, 11

1шт.

11

87370485

GEAR

Driven 1st Speed 41Teeth

1шт.

12

87482697

HYD CONNECTOR

Hydraulic

1шт.

13

87554460

SHAFT

Rev Gear Idler

1шт.

14

84151049

SNAP RING

2шт.

15

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

16

87542750

GEAR

Cluster Shaft

1шт.

17

84233054

DRIVEN SHAFT

Speed

1шт.

18

84188095

BALL BEARING,25mm ID x 52mm OD x 15mm W

Deep Groove

1шт.

19

47957326

LEVER

Lever Assy

1шт.

20

84179930

BALL BEARING

Deep Groove

1шт.

21

84252054

THRUST WASHER,42mm ID x 60mm OD x 3mm Thk

1шт.

22

11069076

SNAP RING,M45, Ext

Circlip, External

1шт.

23

84182973

NEEDLE BEARING,Needle, 14mm ID x 20mm OD x 12mm W

Roller

1шт.

24

87370495

PIN

Lock Reverse Gear

1шт.

25

87370492

GEAR

Reverse Idler 25Teeth

1шт.

26

87370521

WASHER

Reverse Idler Gear

1шт.

27

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.
