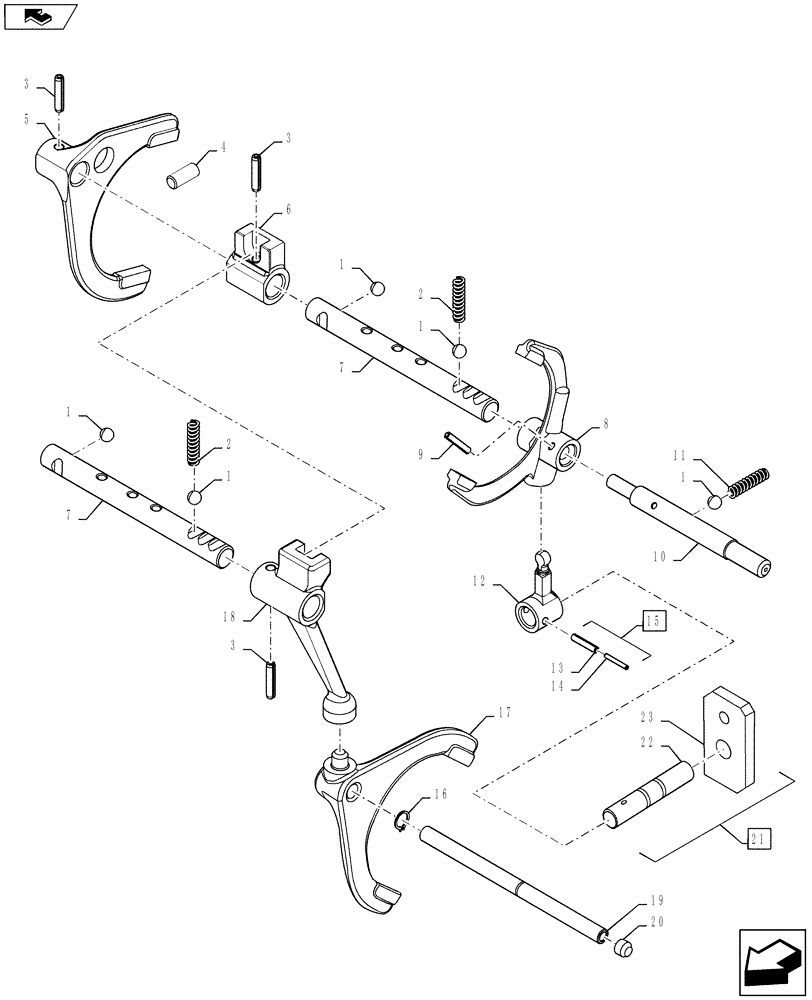

Запчасти Case IH FARMALL 55A (21.140.01 [01]) - 8X8 GEARSHIFT FORKS.(NON-SYNCHRO) 8X8 GEAR SHIFT FORKS. (SYNCHRO) (21) - TRANSMISSION

1

20063390

BALL,8.73mm OD

6шт.

1

20063390

BALL,8.73mm OD

, Serial Range: -`0

5шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

2

583582

SPRING

DO8,9 DW1,9 L35,5

2шт.

3

14166170

ROLL PIN

5 x 30, Slotted

5шт.

3

14166170

ROLL PIN

5 x 30, Slotted, Serial Range: -`0

3шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

4

87388159

PIN

Safety Start Switch

1шт.

5

87370444

SHIFTER FORK

Fork 3/4 ( Non-Synchro)

1шт.

5

84192938

SHIFTER FORK

Fork 3/4 (Synchro)

1шт.

6

87558406

CONTAINER

Lever, Gate 3/4 Shuttle Version

1шт.

7

87370443

SHIFT RAIL

1/2/3/4 (Non-Synchro)

2шт.

7

84490771

SHIFT RAIL

Rail, 1/2/3/4 (Synchro)

2шт.

8

87542749

YOKE

Fork, shuttle

1шт.

9

14166370

LOCK PIN,M5 x 30, Slotted

1шт.

10

87554462

SIDE RAIL

Shuttle

1шт.

11

4994342

SPRING,8mm OD x 30mm OAL

Compression

1шт.

12

87676789

SHIFTER FORK

Fork, 8 x 8 Secondary

1шт.

13

14168370

LOCK PIN,M6 x 30, Slotted

1шт.

14

NSS

NOT SOLD SEPARAT

Roll Pin 3.5 x 30 (P/N 84181971)

1шт.

15

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

15

84181970

ROLL PIN

Includes Ref 13 and 14, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

16

84183117

CIRCLIP

Fits over Shaft Ref. 19

1шт.

17

87370507

SHIFTER FORK

Fork 1/2 (Non-Synchro)

1шт.

17

84192937

SHIFTER FORK

Fork 1/2 (Synchro)

1шт.

18

87370450

SHIFTER FORK

1шт.

18

87370446

ARM

Lever, Gate 1/2

1шт.

19

84137451

SIDE RAIL

Nar, 1/2 Bottom 8x8

1шт.

20

14328301

PLUG,M12, Tapered

2шт.

21

87676694

ROD

Actuator Assy., Includes Ref.22 and 23

1шт.

22

87676693

SHAFT

Shaft, Link Rod Shuttle, Serial Range: -`0

1шт.

Use O-Ring 5146468

1шт.

23

87671203

LEVER

Shuttle

1шт.
