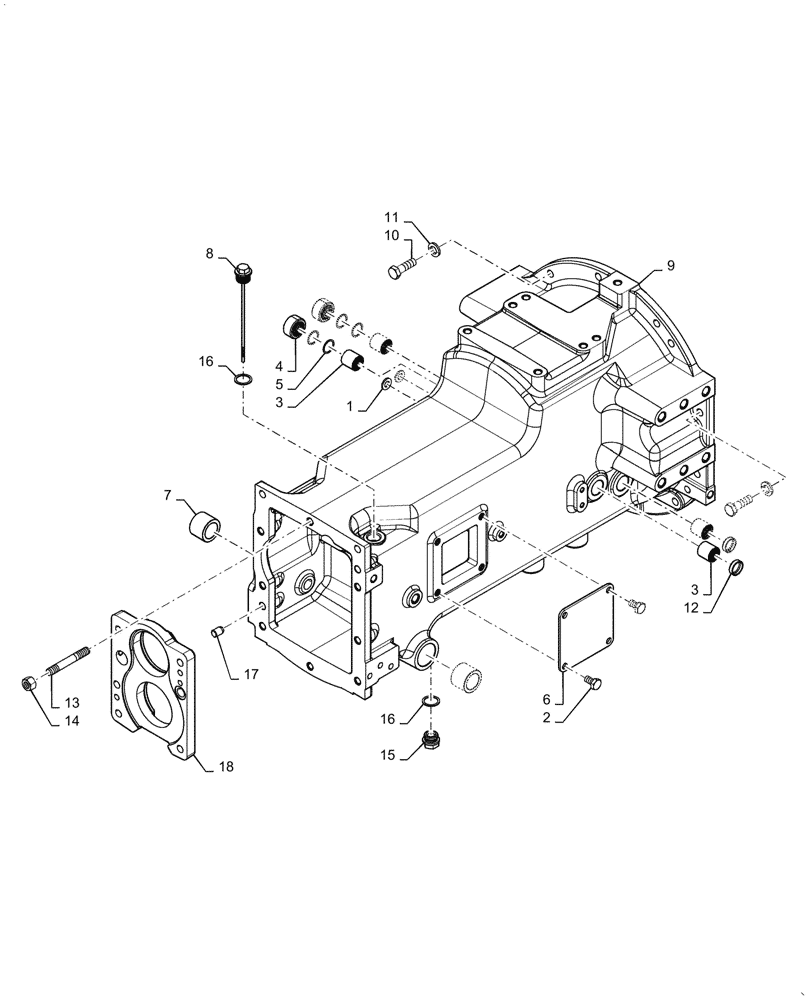

Запчасти Case IH FARMALL 55A (21.112.01[02]) - MASTER CLUTCH HOUSING AND RELATED PARTS (21) - TRANSMISSION

1

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

2

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

3

82833778

BUSHING,23.89mm ID x 25.74mm OD x 25mm L

Clutch Cross Shaft

4шт.

4

82824101

BUSHING,24.15mm ID x 34.95mm OD x 18mm L

O Ring Clutch Fork Shaft

2шт.

5

14463180

O-RING,0.921" ID x 0.139" Width

Seal

4шт.

6

87544411

COVER

Side Plate, Master Clutch Housing

1шт.

7

82824335

BUSHING

Brake Pedal - Shaft

2шт.

8

47996417

DIPSTICK

Assy, Transmission Oil

1шт.

9

47957340

Housing, Clutch, Master D-Clutch

1шт.

10

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

12шт.

11

11198670

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

12шт.

12

82833791

PLUG

Clutch Housing

2шт.

13

82834165

STUD

1шт.

14

10790311

NUT

1шт.

15

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

Hex

1шт.

16

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

17

82823038

DOWEL

Master Clutch Housing

3шт.

18

84395774

PLATE

Intermediate

1шт.
