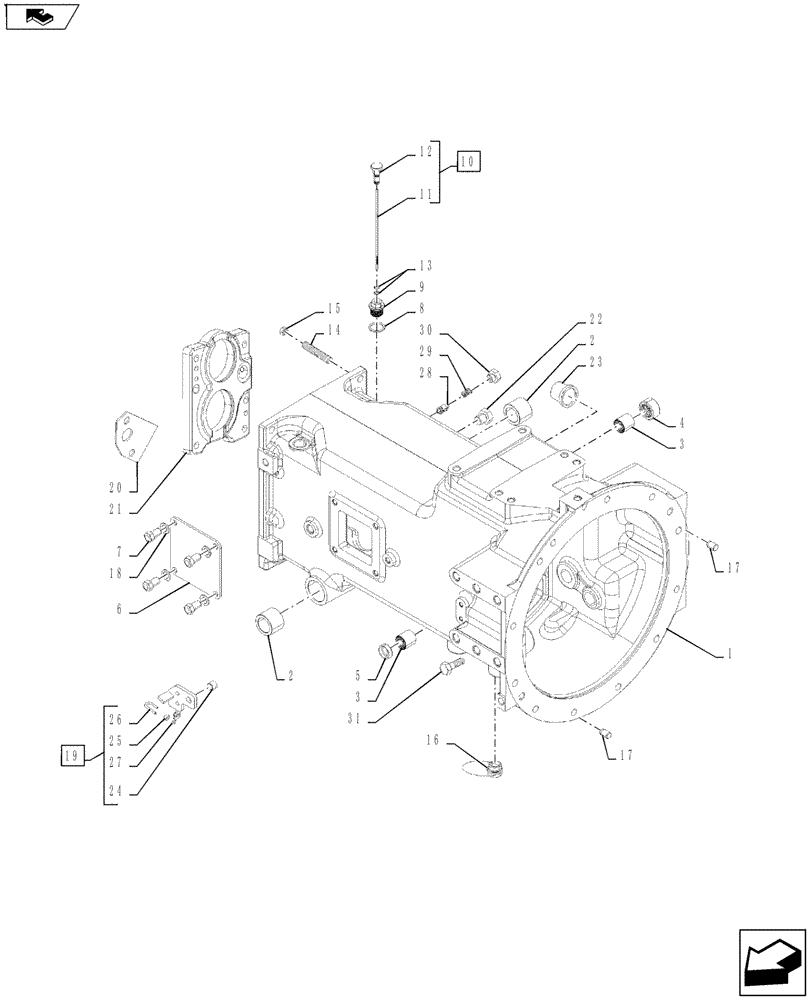

Запчасти Case IH FARMALL 55A (21.112.01[01]) - 8X8 SHUTTLE - HOUSING (21) - TRANSMISSION

1

87554477

HOUSING

1шт.

2

82824335

BUSHING

1шт.

3

82833778

BUSHING,23.89mm ID x 25.74mm OD x 25mm L

4шт.

4

82824101

BUSHING,24.15mm ID x 34.95mm OD x 18mm L

2шт.

5

82833791

PLUG

2шт.

6

87544411

COVER

4шт.

7

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

6шт.

9

87370528

PLUG

10шт.

10

87671917

DIPSTICK,201mm L

Includes Ref 11 and 12

1шт.

11

87671703

ROD

1шт.

12

87671702

BUSHING

support

1шт.

13

14452780

O-RING,0.239" ID x 0.07" Width

4шт.

14

82834165

STUD

2шт.

15

10790311

NUT

M10 x 20

2шт.

16

14326540

MAGNETIC PLUG

M22 x 1.5

1шт.

17

82823038

DOWEL

3шт.

18

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

19

84176142

RUBBER BUMPER

Includes Ref. 24-27

1шт.

20

87638133

BRACKET

1шт.

21

87542757

BRACKET

Plate, Intermediate 8x8 (Will Sub To 84395788)

1шт.

21

84395788

PLATE

Intermediate 8x8

1шт.

22

84183546

SCREW

1шт.

23

87370543

PLUG

4шт.

24

NSS

NOT SOLD SEPARAT

Clutch Pedal Stopper {84176144}

1шт.

25

NSS

NOT SOLD SEPARAT

Clutch Pedal Lock {87664164}

2шт.

26

NSS

NOT SOLD SEPARAT

Rod, Clutch Pedal Lock {87664272}

1шт.

27

12637801

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

28

87631284

JOINING ELEMENT

1шт.

29

87631285

SPRING

1шт.

30

87631286

BOLT,Locking Shuttle, M8 x 1.25 x 20mm

1шт.

31

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

12шт.
