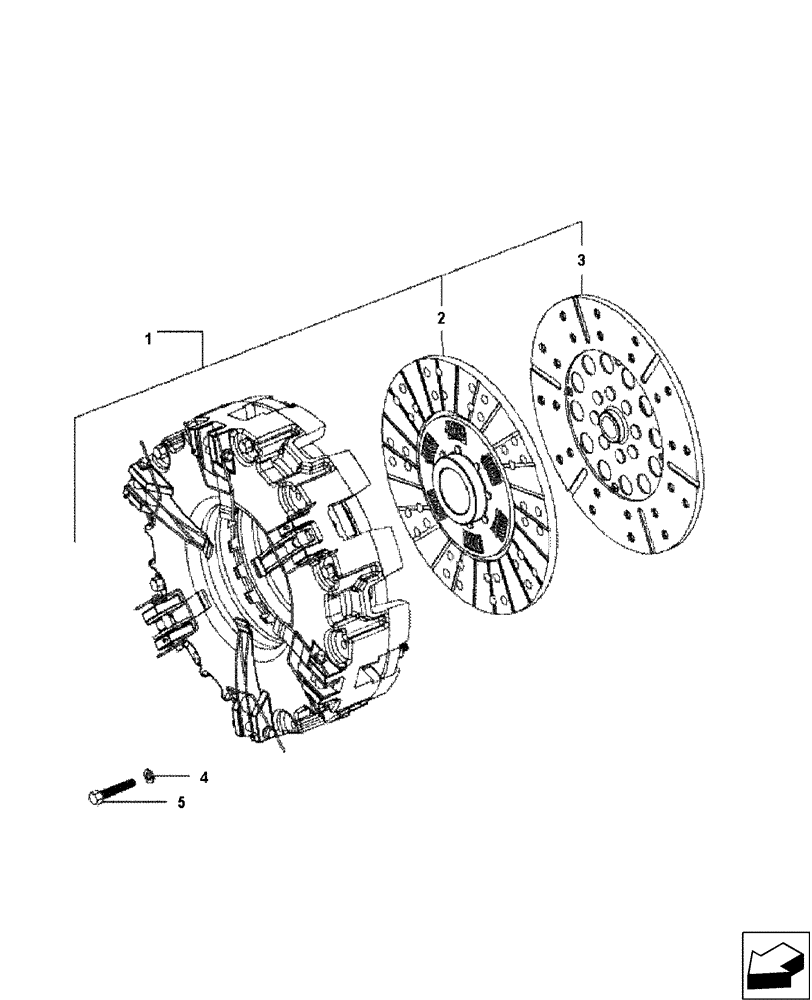

Запчасти Case IH FARMALL 55A (18.100.01[01]) - CLUTCH ASSEMBLY (18) - CLUTCH

1

87371463

CLUTCH

Includes: Ref. 2-3, Serial Range: -`0

1шт.

Component parts not serviced.

1шт.

87371463R

REMAN-CLUTCH ASSY

FARMALL 45A, FARMALL 55A, Both Serial Range: -0 (3/10-)

1шт.

87371463C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

2

87371465

CLUTCH PLATE

Main Drive

1шт.

3

87371464

CLUTCH PLATE

PTO Drive

1шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

5

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

6шт.
