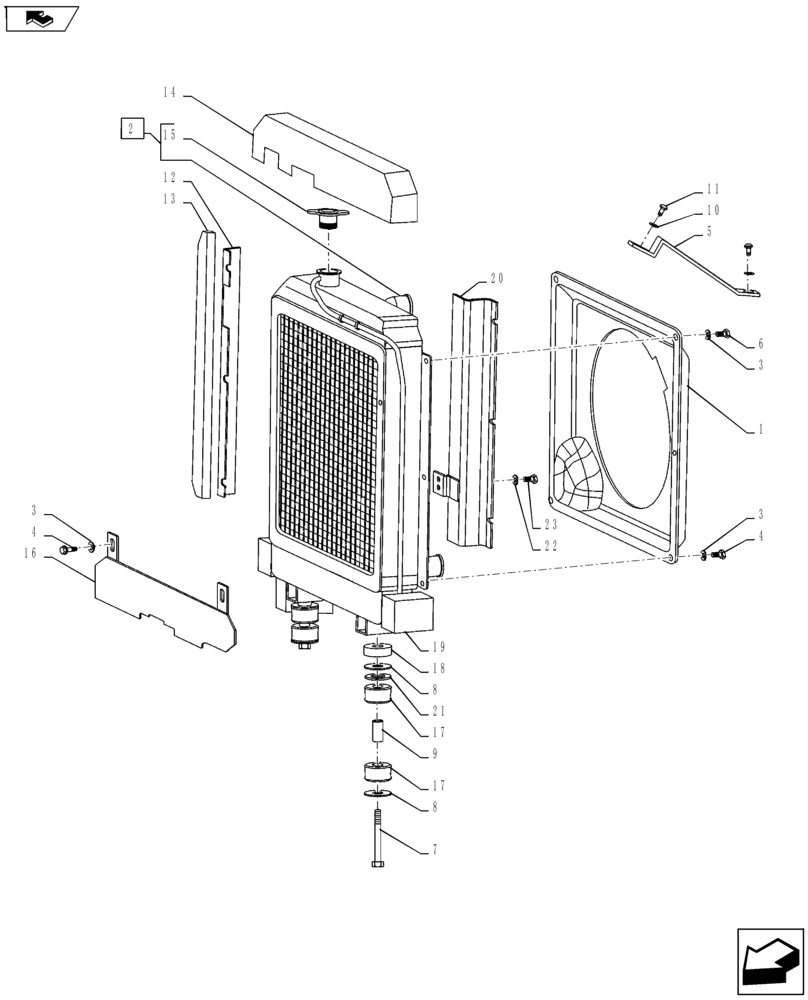

Запчасти Case IH FARMALL 55A (10.406.01[02]) - RADIATOR ASSEMBLY (10) - ENGINE

1

84297821

RADIATOR

1шт.

2

84293170

RADIATOR

Shroud, Includes Ref. 15

1шт.

3

10571579

LOCK WASHER,M6

8шт.

4

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

4шт.

5

87572060

BRACKET

4шт.

6

14433124

SCREW,M6 x 18mm, Cl 8.8

2шт.

7

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

4шт.

8

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

9

82824303

SPACER

2шт.

10

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

12

84298314

BRACKET

1шт.

13

84300629

SEALING STRIP,35mm W x 485mm L x 18mm Thk

Top

2шт.

14

84295273

SEAL

2шт.

15

82834117

PLUG

1шт.

16

84298316

BRACKET

1шт.

17

5108225

RUBBER MOUNTING

2шт.

18

NS

NOT SERVICED

Spacer

2шт.

84279235

1шт.

19

87541591

INSULATOR

Radiator

2шт.

20

84298315

BRACKET

Guard

1шт.

21

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

2шт.

22

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

23

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.
