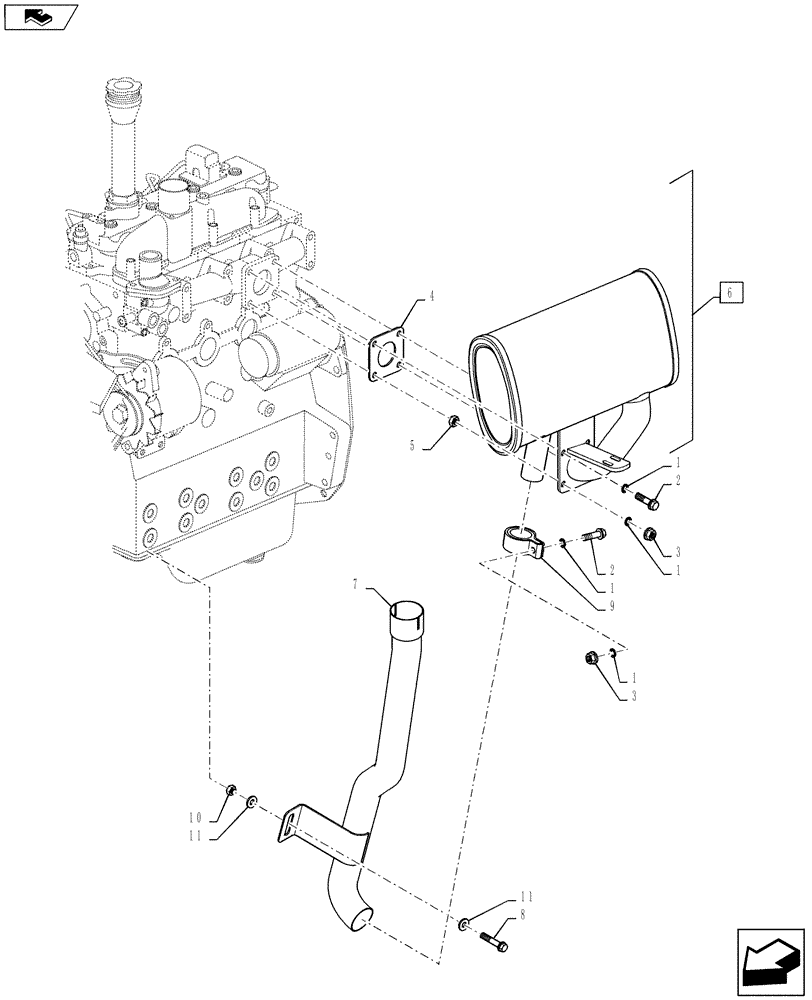

Запчасти Case IH FARMALL 55A (10.254.04[02]) - EXHAUST SYSTEM - MUFFLER W/VERTICAL EXHAUST (10) - ENGINE

1

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

4

84199324

GASKET,0.2mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

WELD NUTS

2шт.

6

87614675

MUFFLER,W/ Spark Arrester

Inc. Ref 5

1шт.

7

86400941

EXHAUST SYSTEM PIPE

Pipe Assy., Muffler Vertical - 45 H.P.

1шт.

8

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

ZND Din

1шт.

9

84249605

CLAMP

1шт.

10

10790111

NUT,M10 x 1.25, Cl 8

1шт.

11

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

2шт.
