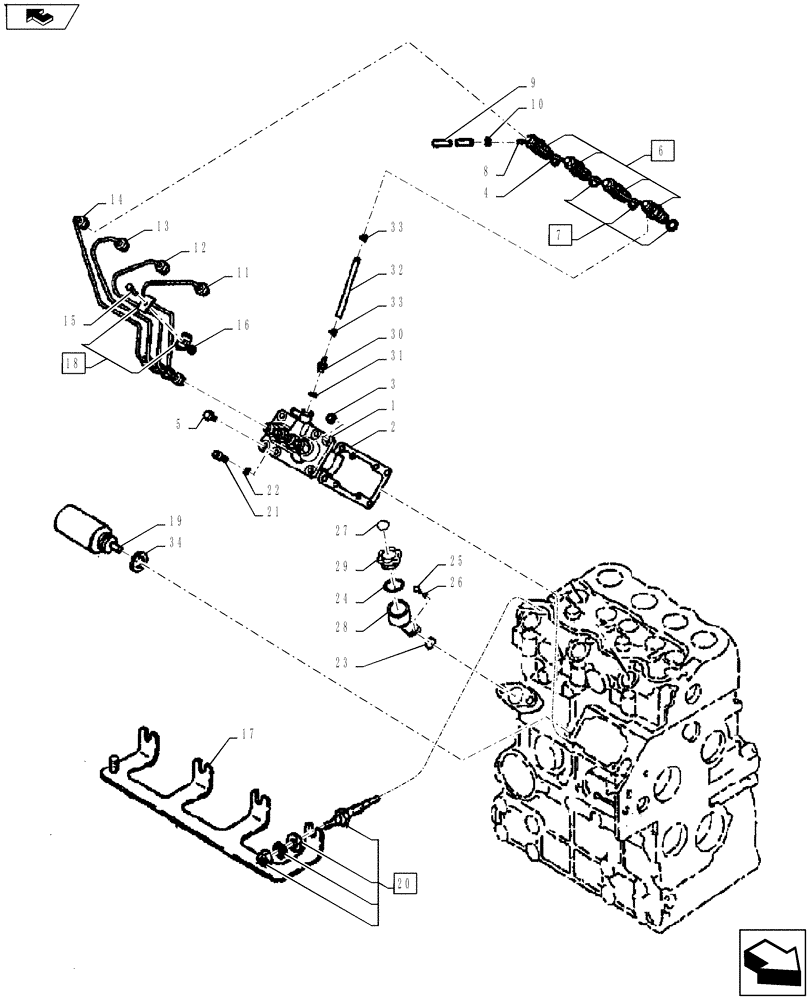

Запчасти Case IH FARMALL 55A (10.246.01[01]) - INJECTION PUMP - FUEL LINES (10) - ENGINE

1

SBA131011120

FUEL INJECTION PUMP

Components Not Serviced Separately, FARMALL 45A

1шт.

1

SBA131011120R

REMAN-FUEL INJ PUMP

FARMALL 45A 4 CYL (3/10-)

1шт.

1

SBA131011120C

CORE-FUEL INJ PUMP

Return Number

1шт.

1

SBA131011100

FUEL INJECTION PUMP

Components Not Serviced Separately, FARMALL 55A

1шт.

1

SBA131011100R

REMAN-FUEL INJ PUMP

FARMALL 55A (NA) (3/10-)

1шт.

1

SBA131011100C

CORE-FUEL INJ PUMP

Return Number

1шт.

2

SBA131426321

SHIM KIT

Includes: 0.2, 0.3, 0.4, & 0.5 Shims

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

4

SBA131426200

SEAL

1шт.

5

SBA011800820

BOLT

2шт.

6

SBA131406360

FUEL SYSTEM INJECTOR

FARMALL 45A

4шт.

6

87298764

REMAN-FUEL INJECTOR

FARMALL 45A

4шт.

6

87298765

CORE-FUEL INJECTOR

Return Number

4шт.

6

SBA131406520

FUEL SYSTEM INJECTOR

FARMALL 55A

4шт.

6

SBA131406520R

REMAN-INJECT NOZZLE

FARMALL 55A

4шт.

6

SBA131406520C

CORE-NOZZLE, INJECT

Return Number

4шт.

7

SBA131426200

SEAL

3шт.

8

SBA131606690

TUBE

FARMALL 45A

1шт.

8

SBA131606950

TUBE

FARMALL 55A

1шт.

9

SBA068209030

FLEXIBLE HOSE

1шт.

10

SBA067200078

HOSE CLAMP

1шт.

11

SBA131501030

RIGID TUBE

Injection

1шт.

12

SBA131501040

RIGID TUBE

Injection

1шт.

13

SBA131501050

RIGID TUBE

Injection

1шт.

14

SBA131501060

RIGID TUBE

Injection

1шт.

15

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

17

SBA185376150

BRACKET

1шт.

Not Included in Long Block

1шт.

18

SBA199106021

CLAMP

6шт.

19

SBA185206085

SOLENOID

1шт.

Not Included in Long Block

1шт.

20

SBA185366190

GLOW PLUG

4шт.

21

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

1шт.

22

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

23

SBA052400250

O-RING

1шт.

24

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

1шт.

25

SBA011310620

BOLT

2шт.

26

SBA026100006

WASHER

2шт.

27

SBA190297900

DECAL

1шт.

28

SBA110466210

NECK FILLER

1шт.

29

SBA198436010

FILLER CAP

1шт.

30

SBA198487920

HYD CONNECTOR

1шт.

31

SBA140996350

COPPER WASHER,8.36mm ID x 12.98mm OD x 1.02mm Thk

1шт.

32

SBA068204112

HOSE

1шт.

33

SBA067200078

HOSE CLAMP

1шт.

34

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.
