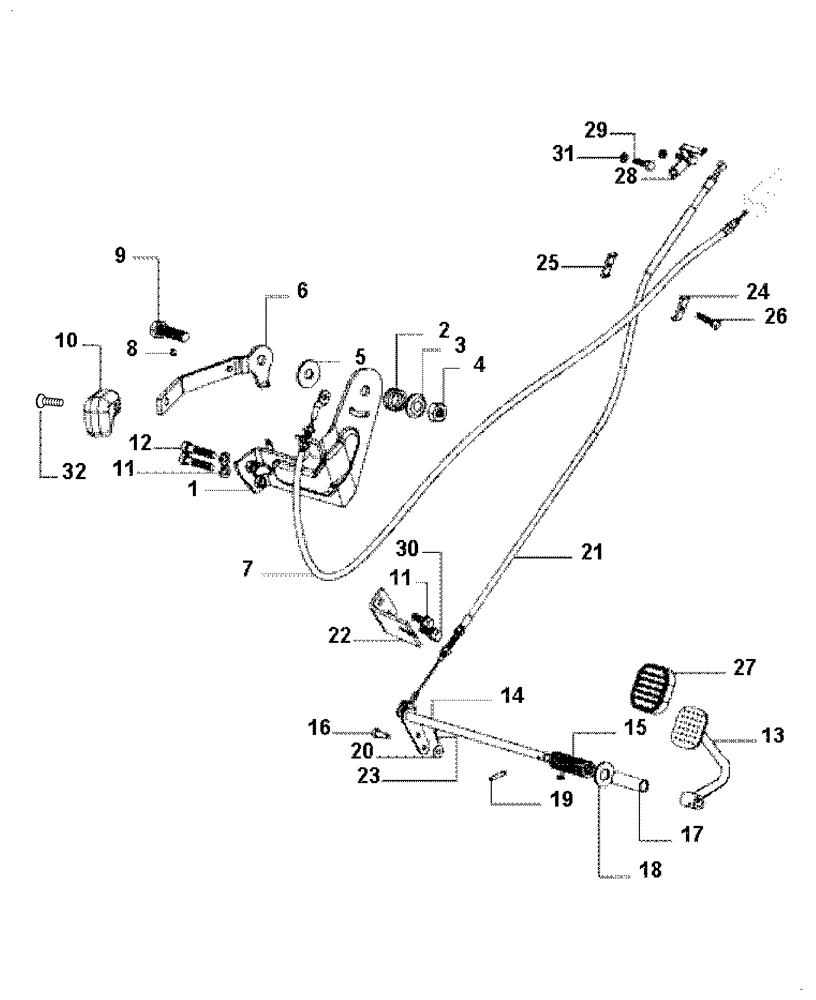

Запчасти Case IH FARMALL 55A (10.220.01) - THROTTLE CONTROL AND LINKAGE (10) - ENGINE

1

87598888

BRACKET

Hand Throttle, Assy.

1шт.

2

5118181

SPRING

DO=24, DW=3, L=13

1шт.

3

589743

CUP WASHER

Spring, Retaining

1шт.

4

16105011

NUT,Hex, M12 x 1.25, Cl 8

M12 x 1.25 8 ZND Din

1шт.

5

5152998

WASHER,12.5mm ID x 34mm OD x 2mm Thk

Accel, Control Lever Friction Plate

1шт.

6

87598863

LEVER

Hand Throttle Assy.

1шт.

6

87484815

LEVER

Hand Throttle Assy., Use With 84157377, Ref. 1

1шт.

7

87548336

CABLE,1325mm L

Hand Throttle Control

1шт.

8

11087676

CIRCLIP,M5

1шт.

9

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

10

87736793

KNOB

Hand Lever - Orange

1шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

12

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

2шт.

13

84181080

PEDAL

Throttle

1шт.

14

87657442

SHAFT

Throttle Lever

1шт.

15

82824398

SPRING

Return Pedal

1шт.

16

5126824

PIN,6.4mm OD x 21.5mm L

Hand Lever

1шт.

17

82824303

SPACER

1шт.

18

12638601

WASHER,M10 x 18 x 2

2шт.

19

82824379

PIN,4.4mm OD x 24mm L, Slotted

1шт.

20

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

1шт.

21

84259176

CABLE

Foot Throttle Control, Not Illustrated

1шт.

22

84259388

BRACKET

Foot Accle Cable

1шт.

23

10734304

COTTER PIN,M2 x 18

1шт.

24

607942

CLAMP

1шт.

25

4002890

CLAMP

1шт.

26

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

27

87530816

RUBBER PEDAL PAD

1шт.

28

84305806

BRACKET

Assy., Cable Guide

1шт.

29

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

30

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

31

10571579

LOCK WASHER,M6

2шт.

32

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.
