Запчасти Case IH FARMALL 55A (10.110.02) - BALANCER (10) - ENGINE

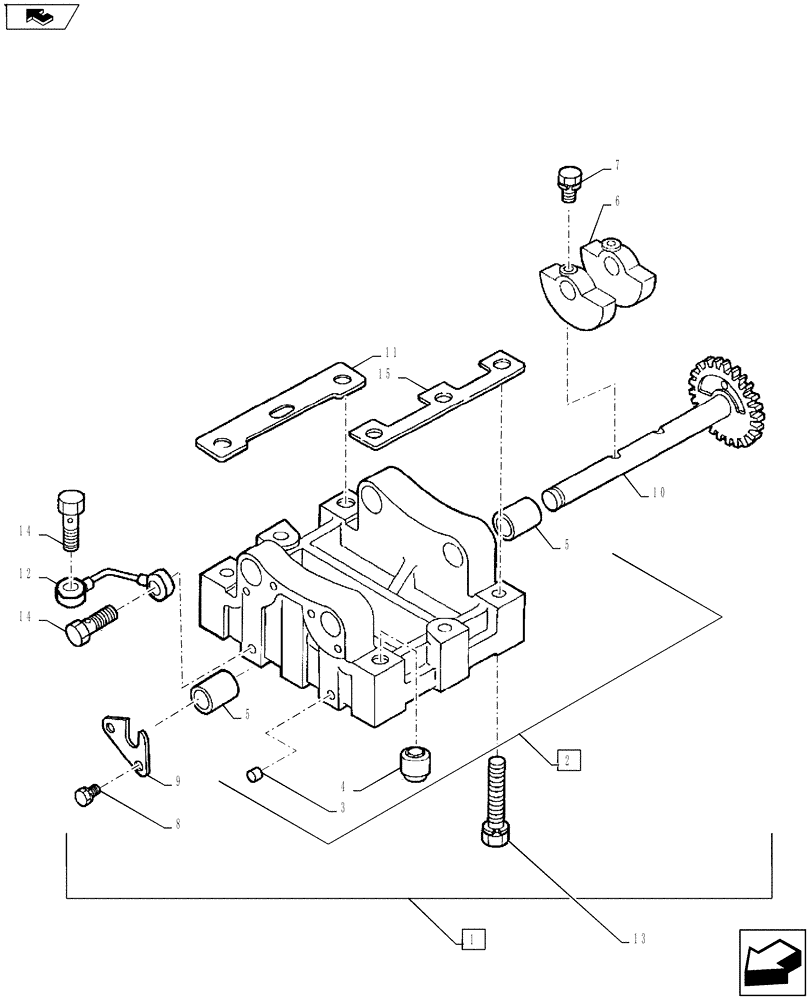

Схема запчастей Case IH FARMALL 55A - (10.110.02) - BALANCER (10) - ENGINE
4
9
5
5
7
home
1
13
3
6
2
14
8
10
12
11
14
15

Артикул

Название

Примечание

Количество

1

SBA165036160

COUNTERSHAFT

Balancer Assy., Includes Ref. 2-10

1шт.

2

SBA165326280

HOUSING

Complete, Includes Ref. 2-4

1шт.

3

SBA198466030

PLUG

Blank, 6.5 x 7mm

6шт.

4

SBA030509019

PIN

Dowel

2шт.

5

SBA198517480

BUSHING

4шт.

6

SBA165316210

WEIGHT

Balancer

4шт.

7

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

8

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

4шт.

9

SBA199566760

PLATE

2шт.

10

SBA165456180

SHAFT

Complete

2шт.

11

SBA199286320

SHIM

1шт.

12

SBA140607031

PIPE

Oil

1шт.

13

SBA011511070

BOLT,M10 x 70

6шт.

14

SBA198486780

BANJO BOLT

Eye

2шт.

15

SBA199286330

SHIM

1шт.

Выбрано товаров: 15
