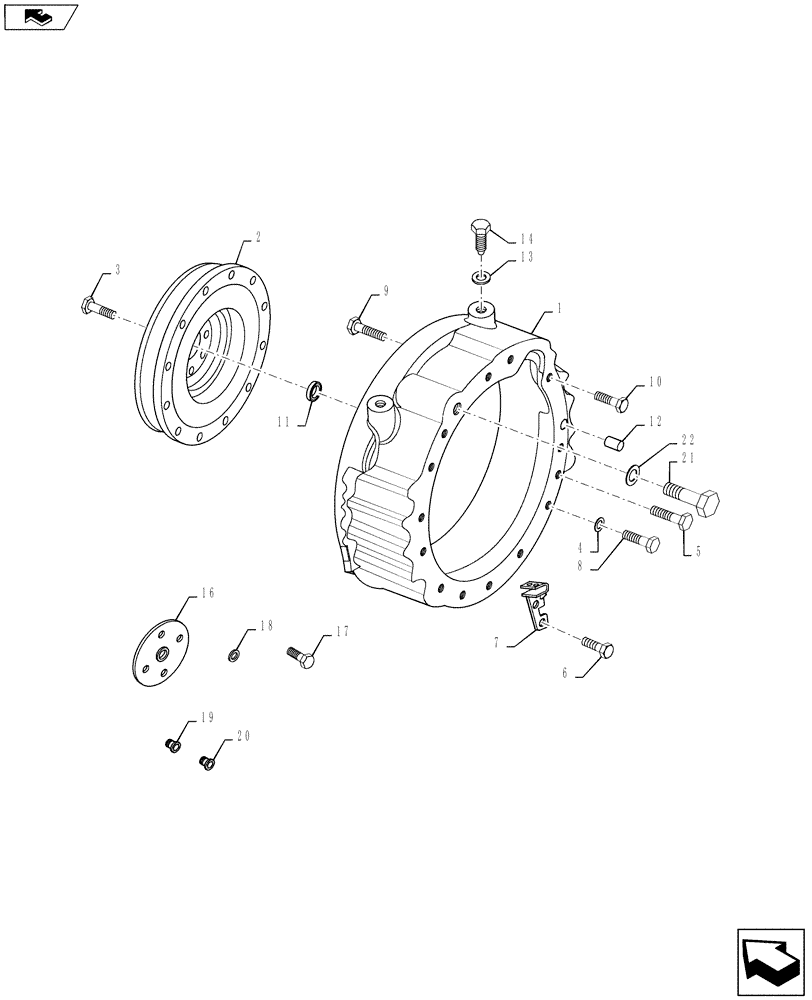

Запчасти Case IH FARMALL 55A (10.103.04) - FLYWHEEL - FLYWHEEL HOUSING (10) - ENGINE

1

87578288

HOUSING

Engine

1шт.

2

87579015

ENGINE FLYWHEEL

1шт.

2

84496155

ENGINE FLYWHEEL,329mm OD

ISM ENGINE, FLYWHEEL

1шт.

3

87581408

FLANGE BOLT,Hex, M10 x 1.25 x 48mm, Gr 12

M10 x 1.25 x 35

6шт.

4

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

14шт.

5

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

4шт.

Requires serial number break

1шт.

5

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

2шт.

Requires serial number break

1шт.

5

11288021

BOLT,Hex, M10 x 1.25 x 60, 8.8

Prevents Bolt Fouling

2шт.

6

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

HD

2шт.

Requires serial number break

1шт.

6

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

HD

4шт.

7

84259394

BRACKET

Filter Mounting

1шт.

(2) 14302821 Allen Screw and (2) 15540421 Washer Used to Mount Bracket.

1шт.

8

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

6шт.

9

11112321

BOLT,Hex, M12 x 28mm, Cl 8.8, Full Thd

2шт.

10

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

11

82822269

BALL BEARING,17mm ID x 40mm OD x 12mm W

Pilot

1шт.

12

82823038

DOWEL

12 x 20

2шт.

13

10571579

LOCK WASHER,M6

4шт.

14

10903421

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

15

87560711

ENGINE

Assy., 45 H.P Not Illustrated

1шт.

15

87645807

ENGINE

ISM Flywheel, not illustrated

1шт.

16

87583763

SPACER

1шт.

17

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

6шт.

18

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

19

87541594

PLUG

4шт.

20

84293166

PLUG

11шт.

21

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

1.25 Pitch

2шт.

22

11198670

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

M12X24X3.2

2шт.
