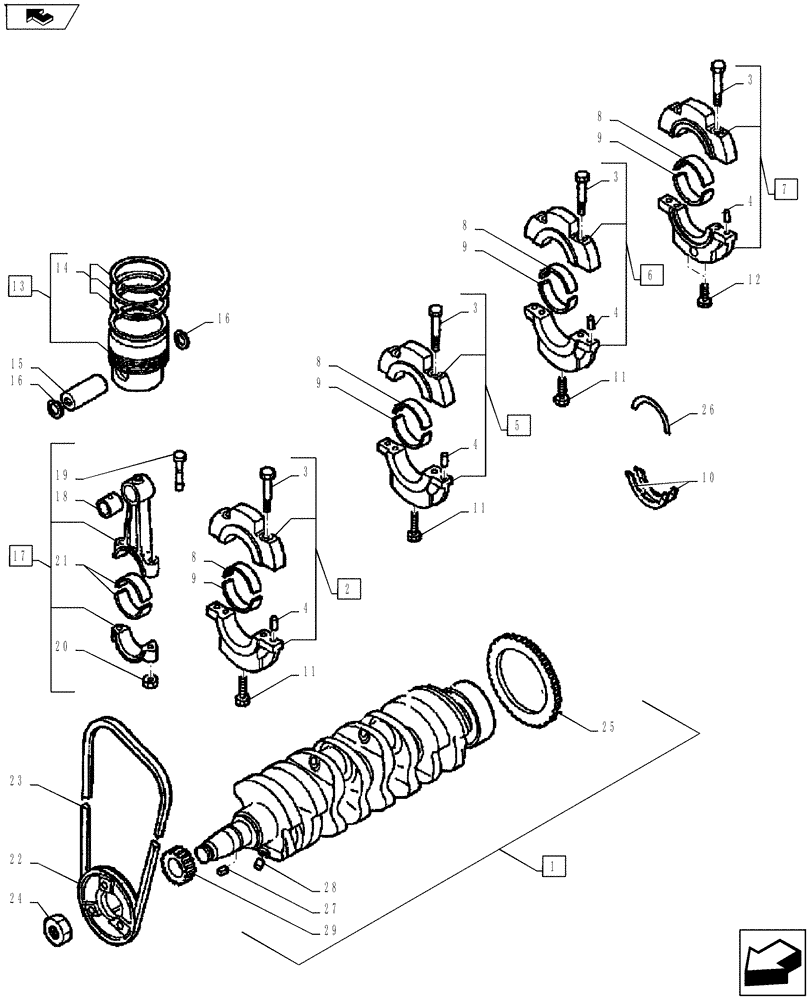

Запчасти Case IH FARMALL 55A (10.103.02) - CRANKSHAFT & PISTONS (10) - ENGINE

1

SBA115256841

CRANKSHAFT

Includes Ref. 25

1шт.

1

SBA115256841R

REMAN-CRANKSHAFT

FARMALL 45A, FARMALL 55A, Both 4 CYL TRACTOR (NA) (3/10-)

1шт.

1

SBA115256841C

CORE-CRANKSHAFT

Return Number

1шт.

2

SBA110156360

HOLDER

Bearing Assy., Includes Ref. 3-4

1шт.

3

SBA010109406

BOLT

8шт.

4

SBA030500612

DOWEL

8шт.

5

SBA110156370

BEARING CAP

Bearing, Includes Ref. 3-4

1шт.

6

SBA110156380

BEARING CAP

Bearing, Includes Ref. 3-4

1шт.

7

SBA110156390

BEARING CAP

Bearing Assy., Includes Ref. 3-4

1шт.

8

SBA198517232

BEARING LINER,Std., Upper

Bearing, Standard, FARMALL 45A & FARMALL 55A

4шт.

Not Included in Long Block

1шт.

8

SBA198517236

BEARING LINER,.010" U/S, Upper

Bearing, U.S, .010" or 0.25mm, FARMALL 45A

4шт.

Not Included in Long Block

1шт.

9

SBA198517242

BEARING LINER,Std., Lower

Bearing, Standard, FARMALL 45A & FARMALL 55A

4шт.

Not Included in Long Block

1шт.

9

SBA198517246

BEARING LINER,.010" U/S, Lower

Bearing, U.S, .010" or 0.25mm, FARMALL 45A & FARMALL 55A

4шт.

Not Included in Long Block

1шт.

9

SBA198517249

BEARING LINER,.020" U/S, Lower

Bearing, U.S, .020" or 0.50mm, FARMALL 45A & FARMALL 55A

2шт.

Not Included in Long Block

1шт.

10

SBA199266200

THRUST WASHER

2шт.

11

SBA011511070

BOLT,M10 x 70

3шт.

12

SBA010700860

BOLT

M8 x 60

2шт.

13

SBA115017491

PISTON & RINGS KIT

Standard, FARMALL 45A, Includes Ref. 14 SBA115017970

4шт.

13

SBA115017581

PISTON & RINGS KIT

Standard, FARMALL 55A

4шт.

14

SBA115107970

SET OF RINGS

FARMALL 45A, Contains a 3 MM Width Oil Ring Included In Kit SBA115017491 & SBA115017541

4шт.

14

SBA115104021

PISTON RINGS KIT

FARMALL 55A

4шт.

15

SBA115326220

PISTON PIN,33mm OD

4шт.

16

301642

SNAP RING,M28, Int

8шт.

17

SBA115026330

CONNECTING ROD

Includes Ref. 18-20

4шт.

SBA115026330R

REMAN-CONNECTING ROD

Farmall 45A, Farmall 55A, Both 4 Cyl. (3/10)

4шт.

SBA115026330C

CORE-ROD CONNECTING

Return Number

1шт.

18

SBA198517260

BUSHING

4шт.

19

SBA115176140

BOLT

Connecting Rod

8шт.

20

SBA020109120

NUT

8шт.

21

SBA198517252

BEARING LINER,Std.

Bearing, Standard, FARMALL 45A & FARMALL 55A

8шт.

21

SBA198517256

BEARING LINER,.25mm

Bearing, U.S, .010" or 0, FARMALL 45A & FARMALL 55A .25mm

8шт.

Not Included in Long Block

1шт.

21

SBA198517259

BEARING LINER,Piston Rod, .020"

Bearing, U.S, .020" or 0, FARMALL 45A & FARMALL 55A .50mm

8шт.

Not Included in Long Block

1шт.

22

SBA115391030

PULLEY

Crankshaft, FARMALL 45A

1шт.

23

301525A1

BELT,37.43” OAL

FARMALL 45A

1шт.

Not Included in Long Block

1шт.

23

86517954

V-BELT,0.50" W x 37.54" L

Farmall 55A

1шт.

Not Included in Long Block

1шт.

24

SBA020109086

NUT

1шт.

25

SBA165416450

GEAR

Balancer

1шт.

26

SBA199266210

THRUST WASHER

1шт.

27

SBA034100508

KEY

1шт.

28

SBA030509020

PIN

Dowel

1шт.

29

SBA115276270

GEAR

Crankshaft

1шт.
