Запчасти Case IH FARMALL 55A (10.102.01) - TIMING GEAR CASE (10) - ENGINE

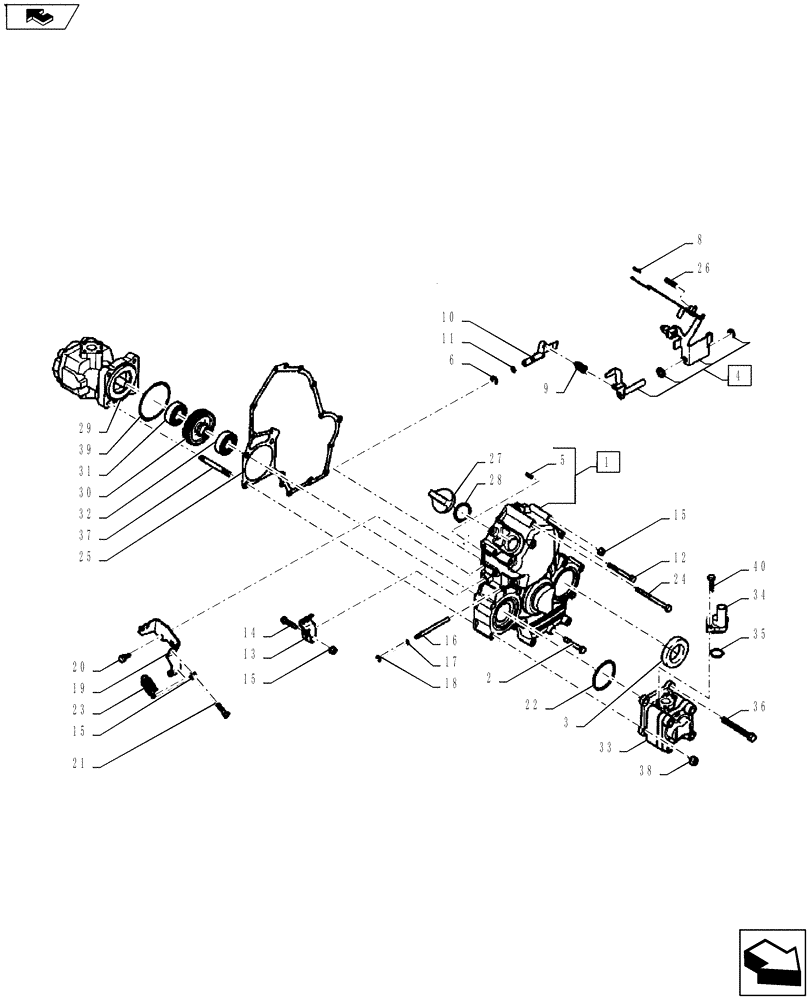

Схема запчастей Case IH FARMALL 55A - (10.102.01) - TIMING GEAR CASE (10) - ENGINE
9
30
3
4
14
18
15
37
38
22
15
17
35
20
6
19
29
16
31
12
2
40
25
32
5
39
13
24
34
10
21
36
23
8
26
15
33
1
11
28
home
27

Артикул

Название

Примечание

Количество

1

SBA165106770

CASING

Gear, Includes Ref. 5, FARMALL 45A

1шт.

2

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

7шт.

3

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

4

SBA125046510

LEVER

FARMALL 45A

1шт.

4

SBA125046520

LEVER

FARMALL 55A

1шт.

5

SBA030300414

PIN

Spring

1шт.

6

SBA036800008

SNAP RING

1шт.

7

NSS

NOT SOLD SEPARAT

Set, FARMALL 55A, Not Illustrated

1шт.

8

SBA031100004

SPRING

1шт.

9

SBA198217320

SPRING

FARMALL 45A

1шт.

9

SBA198217220

SPRING

FARMALL 55A

1шт.

10

SBA125156170

ARM

Throttle

1шт.

11

SBA052100070

O-RING

1шт.

12

SBA011310660

BOLT

5шт.

13

SBA125416090

LEVER

Throttle

1шт.

14

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

16

SBA125116141

ROD

1шт.

17

SBA052100030

O-RING

FARMALL 45A

1шт.

17

SBA052109108

O-RING

FARMALL 55A

2шт.

18

SBA036800005

SNAP RING

1шт.

19

SBA125976100

BRACKET

1шт.

20

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

21

SBA010109264

BOLT

1шт.

22

SBA052300600

O-RING,G60

1шт.

23

SBA398210070

SPRING

1шт.

24

SBA011310680

BOLT

M6 x 80

2шт.

25

SBA165996550

GASKET

1шт.

26

SBA198217420

SPRING

FARMALL 45A

1шт.

26

SBA198217500

SPRING

FARMALL 55A

1шт.

27

SBA398430630

CAP

1шт.

28

SBA052100280

O-RING

1шт.

29

SBA340451140

HYDRAULIC PUMP

1шт.

SBA340451140R

REMAN-HYD PUMP

FARMALL 45A, FARMALL 55A both (3/10-)

1шт.

SBA340451140C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

SBA340460240

GEAR

M6 x 80

1шт.

31

SBA040306004

BALL BEARING

1шт.

32

SBA040306005

BALL BEARING

1шт.

33

SBA340451020

HYDRAULIC PUMP

1шт.

SBA340451020R

REMAN-HYD PUMP

FARMALL 55A, FARMALL 45A BOTH (3/10-)

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

34

SBA340621610

FLANGE

1шт.

35

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

1шт.

36

SBA010310870

BOLT

2шт.

37

SBA012110865

STUD

2шт.

38

SBA021500008

NUT,M8

2шт.

39

SBA052300700

O-RING

1шт.

40

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

2шт.

Выбрано товаров: 48
