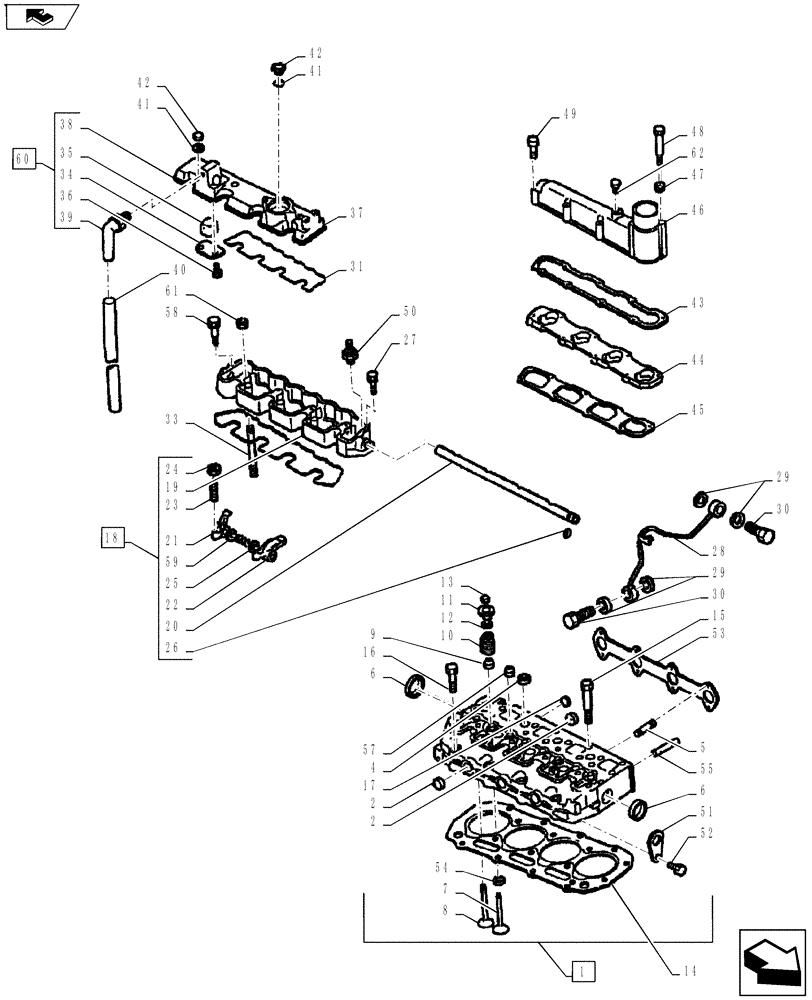

Запчасти Case IH FARMALL 55A (10.101.01[02]) - CYLINDER HEAD - VALVES - ROCKER SHAFT (10) - ENGINE

1

SBA111011060

CYLINDER HEAD

Includes Ref. 2, 4, 6-13, 16-17, 51-52, 54-55, 57

1шт.

2

SBA064210025

PLUG,25mm

5шт.

3

SBA198487901

CONNECTION

Not Illustrated

1шт.

4

SBA064210018

PLUG

Sealing

7шт.

5

SBA012110860

STUD

Bolt

2шт.

6

SBA064210030

PLUG,30mm

2шт.

7

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE Intake

4шт.

8

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Valve Guide

4шт.

9

SBA120406050

SEAL

4шт.

10

SBA198216700

SPRING

8шт.

11

SBA120186080

RETAINER

8шт.

12

SBA120226070

RETAINER

16шт.

13

SBA120216041

CAP

8шт.

14

SBA111147751

CYLINDER HEAD GASKET,1.1mm Thk

1.1 Thickness

1шт.

Head Gaskets Changed From Carbon Graphite to Steel Laminated

1шт.

14

SBA111147761

CYLINDER HEAD GASKET,1.2mm Thk

1шт.

Head Gaskets Changed From Carbon Graphite to Steel Laminated

1шт.

14

SBA111147771

CYLINDER HEAD GASKET,1.3mm Thk

4шт.

Head Gaskets Changed From Carbon Graphite to Steel Laminated

1шт.

15

SBA111136490

BOLT

1шт.

16

SBA111136490

BOLT

4шт.

17

SBA064210010

PLUG,10mm

3шт.

18

SBA120036810

ROCKER ARM

1шт.

19

NSS

NOT SOLD SEPARAT

Rocker Arm Housing

1шт.

Gasket SBA120996250

1шт.

20

SBA120316201

SHAFT

Rocker Arm

1шт.

21

SBA120356131

ROCKER ARM

4шт.

22

SBA120356141

ROCKER ARM

4шт.

23

SBA199486220

ADJUSTMENT SCREW

8шт.

24

SBA020109076

NUT

8шт.

25

SBA198217170

SPRING

3шт.

26

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

27

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

1шт.

28

SBA140606720

TUBE

1шт.

29

SBA140996260

SEAL

4шт.

30

SBA198486780

BANJO BOLT

2шт.

31

SBA052109072

O-RING,3mm Thk x 345mm ID, 70 Duro

1шт.

32

SBA052109074

O-RING,3mm Thk x 368mm ID, 70 Duro

Not Illustrated

1шт.

Attached on the frame of head cover

1шт.

33

SBA012109044

STUD

4шт.

34

SBA110666050

DEFLECTOR

1шт.

35

SBA110666060

FILTER SCREEN

1шт.

36

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

37

NSS

NOT SOLD SEPARAT

1шт.

38

SBA024600010

NUT

4шт.

39

SBA140986581

ELBOW

1шт.

40

SBA068209179

HOSE

1шт.

Not Included in Long Block

1шт.

41

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

1шт.

42

SBA198436010

FILLER CAP

1шт.

43

SBA135996880

MANIFOLD GASKET

1шт.

44

SBA135597580

SPACER

1шт.

45

SBA135996870

GASKET

1шт.

46

SBA135597700

MANIFOLD

Intake

1шт.

47

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

48

SBA010109119

BOLT

2шт.

49

SBA011310660

BOLT

6шт.

50

SBA185246060

SENDER UNIT

Oil Pressure

1шт.

51

SBA195816540

LIFTING EYE

2шт.

52

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

53

SBA135996780

MANIFOLD GASKET

1шт.

Not Included in Long Block

1шт.

54

SBA110136400

VALVE SEAT

4шт.

55

SBA012110645

STUD

Bolt

2шт.

56

SBA140996270

SEAL

4шт.

57

SBA120406070

SEAL

Valve

4шт.

58

SBA011310650

BOLT

1шт.

59

SBA199280300

SHIM,0.5mm Thk

6шт.

60

SBA111027160

COVER

Head Includes Ref. 34-37, 39

1шт.

61

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

62

SBA064500010

PLUG

1шт.
