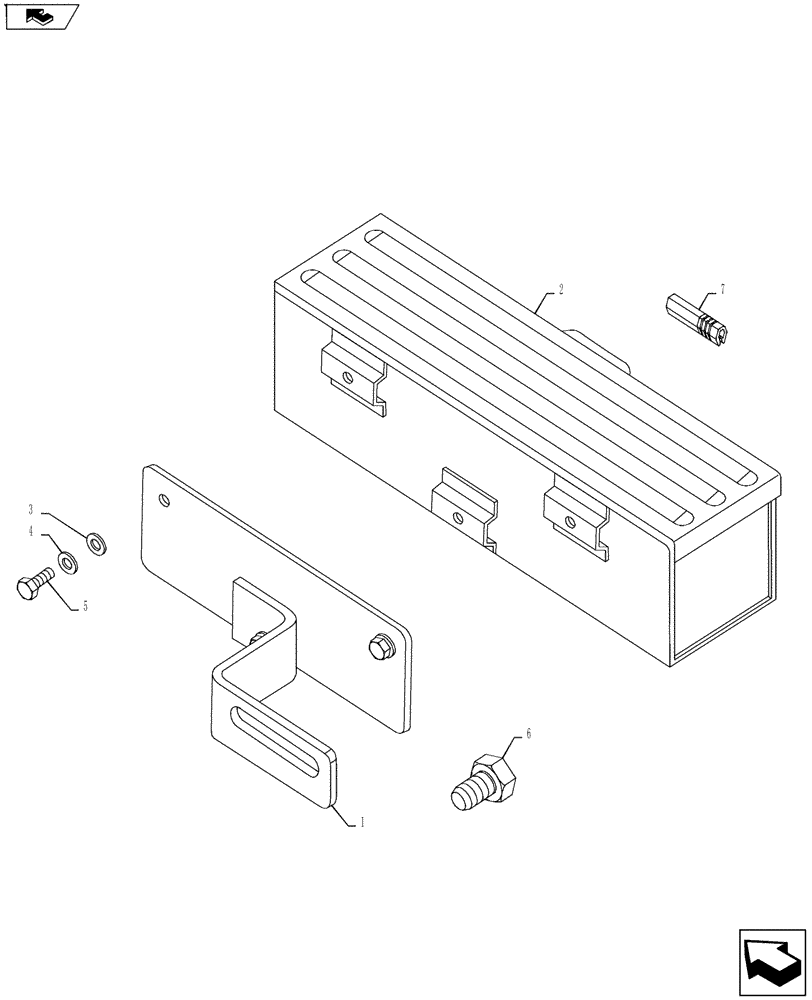

Запчасти Case IH FARMALL 55A (88.100.01) - TOOL BOX (88) - ACCESSORIES

1

82827089

BRACKET

Toolbox Mounting

1шт.

2

82822795

TOOL BOX

Assy.

1шт.

3

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

M8

3шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

6

15980321

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

7

85700513

MOLDING,3 1/2" L

3 1/2'' L

1шт.
