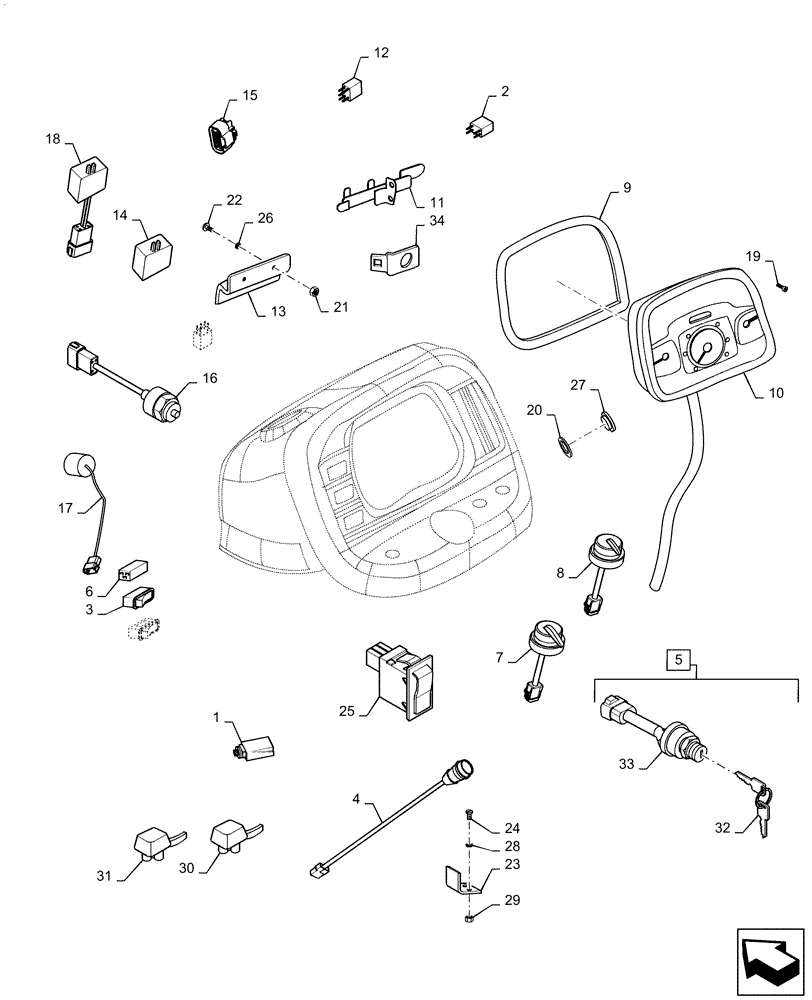

Запчасти Case IH FARMALL 55A (55.418.01) - DASHBOARD - ELECTRICAL COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87302334

SWITCH,Four Connectors

Plunger

1шт.

2

86529089

RELAY

SPDT, 12V

1шт.

3

87648927

FLASHER SWITCH

Hazard Warning

1шт.

4

82824863

SWITCH ASSY

Brake/Clutch

2шт.

5

84280150

IGNITION SWITCH

Includes Ref. 32 - 33

1шт.

6

5166218

PLUG,Switch

2шт.

7

82826727

SWITCH ASSY

Turn Signal

1шт.

8

82826728

SWITCH ASSY

Light

1шт.

9

5175371

GASKET,3mm Thk

1шт.

10

48048579

INSTRUMENT CLUSTER

1шт.

11

87396650

BRACKET

Assy Relay Mounting

1шт.

12

86509590

RELAY

Micro, 12V, 20 Amp

3шт.

13

87570942

BRACKET

1шт.

14

87494073

BUZZER

Time Delay

1шт.

15

86400241

CONTROL UNIT

Control Unit, Fuel

1шт.

16

48001150

NEUTRAL START SWITCH

1шт.

17

87308073

INDICATOR

1шт.

18

87494071

FLASHER UNIT,12V

1шт.

19

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

4шт.

20

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.

21

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

22

10977921

SCREW,Hex, M5 x 18mm, Cl 8.8, Full Thd

2шт.

23

82822911

BRACKET

Bracket, Stop Lamp Switch

2шт.

24

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

4шт.

25

84248812

SWITCH ASSY

Lamp Work

1шт.

26

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

27

87527719

PLUG

1шт.

28

10571379

LOCK WASHER,M4

4шт.

29

10794011

NUT,M4, Cl 8

4шт.

30

84130633

PARK BRAKE SWITCH

1шт.

31

84131152

SWITCH

Clutch Pedal Safety Includes Spring

1шт.

32

84280151

IGNITION KEY

Qty 2 Keys

1шт.

33

84280152

IGNITION SWITCH

1шт.

34

82834161

CABLE TERMINAL

Terminal-Male Blade

1шт.
