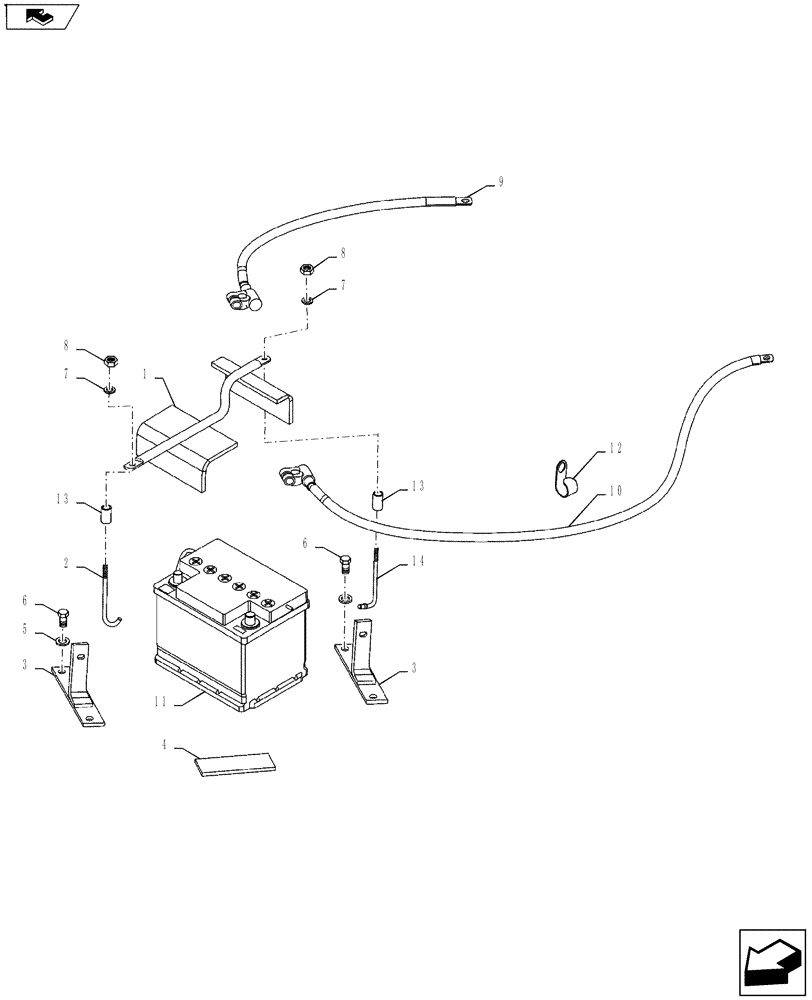

Запчасти Case IH FARMALL 55A (55.301.02) - BATTERY - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

84254007

CLAMP

Battery Mounting

1шт.

2

84254383

TIE-ROD

Battery Hold Down, Front 157mm Long

1шт.

3

84256429

BRACKET

Battery Mounting

2шт.

4

82823237

SLIDING PAD

Bottom Mounting

2шт.

5

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

4шт.

6

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

9

48018391

CABLE

Battery to ground

1шт.

9

84182910

TERMINAL

TERMINAL, Negative M6.-50

1шт.

10

48018440

CABLE

Battery to Starter Motor

1шт.

11

B4750W

WET BATTERY

US Only - Ship Direct Option

1шт.

11

CC4750W

WET BATTERY

CAN Only - Ship Direct Option

1шт.

12

87335288

COLLAR

1шт.

13

82824135

SPACER

2шт.

14

84298827

ROD

Battery Hold Down, Back 230mm Long

1шт.
