Запчасти Case IH FARMALL 55A (55.301.01) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

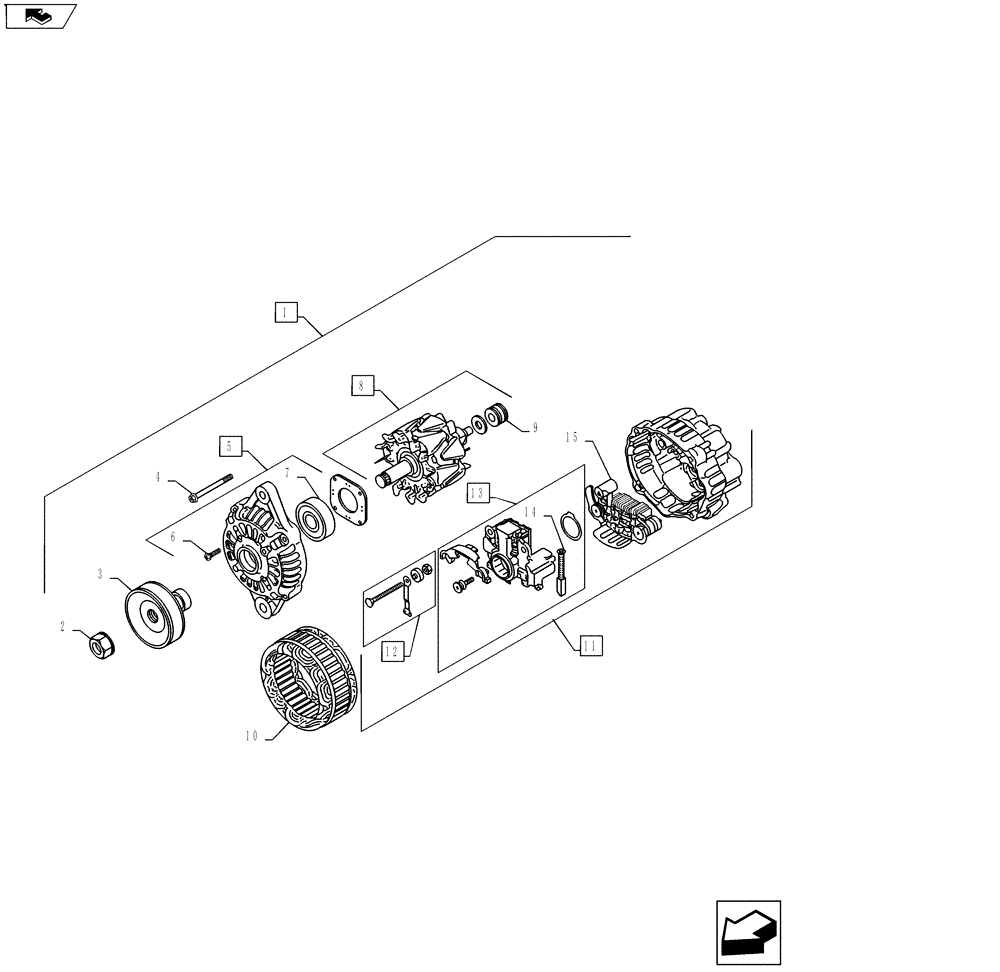

Схема запчастей Case IH FARMALL 55A - (55.301.01) - ALTERNATOR (55) - ELECTRICAL SYSTEMS
5
10
13
4
12
home
2
8
11
6
3
15
14
9
1
7

Артикул

Название

Примечание

Количество

1

SBA185046320

ALTERNATOR

FARMALL 45A Includes: Ref. 2-15

1шт.

1

SBA185046320R

REMAN-ALTERNATOR

FARMALL 45A

1шт.

1

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

1

SBA185046380

ALTERNATOR

FARMALL 55A Includes: Ref. 2-15

1шт.

1

SBA185046380R

REMAN-ALTERNATOR

FARMALL 55A

1шт.

1

SBA185046380C

CORE-ALTERNATOR

Return Part Number

1шт.

1

SBA185046320GV

ALTERNATOR

Value

1шт.

2

SBA185446269

NUT

1шт.

3

SBA185436180

PULLEY

1шт.

4

SBA185446270

SET OF SCREWS

1шт.

5

SBA185426210

COVER

Front, Includes Ref. 6-7

1шт.

6

SBA185446271

SET OF SCREWS

1шт.

7

NS

NOT SERVICED

Ball Bearing, FARMALL 45A

1шт.

7

SBA185446272

BALL BEARING

FARMALL 55A

1шт.

8

SBA185446292

ROTOR

Assy., FARMALL 55A

1шт.

8

SBA185446273

ARMATURE

Rotor Assy, FARMALL 45A

1шт.

9

SBA185446274

BALL BEARING,8mm ID x 23mm OD x 14mm W

1шт.

10

SBA185446275

ALTERNATOR STATOR

FARMALL 45A

1шт.

10

SBA185446293

ALTERNATOR STATOR

FARMALL 55A

1шт.

11

SBA185426220

COVER

Rear, Includes Ref. 12-15, FARMALL 45A

1шт.

11

SBA185426240

COVER

Rear, FARMALL 55A

1шт.

12

SBA185446278

KIT

Set

1шт.

13

SBA185446277

VOLTAGE REGULATOR

1шт.

14

SBA185416480

COMMUTATOR BRUSH

Spring

2шт.

15

SBA185446276

RECTIFIER

FARMALL 45A

1шт.

15

SBA185446294

RECTIFIER

FARMALL 55A

1шт.

Выбрано товаров: 26
