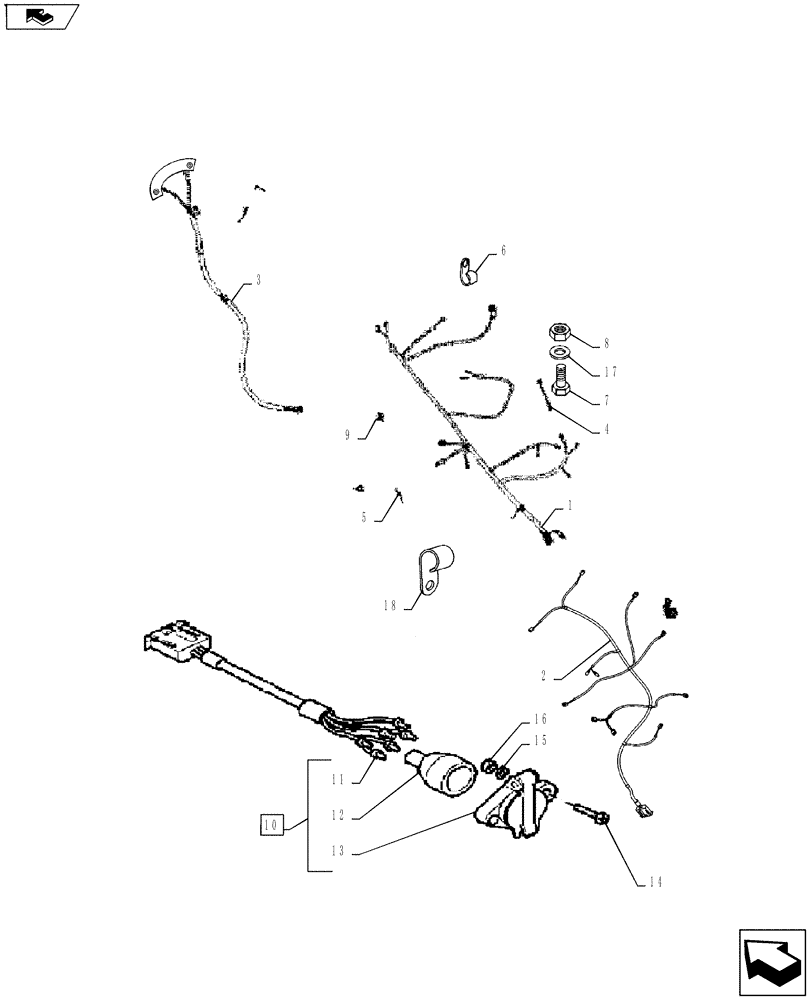

Запчасти Case IH FARMALL 55A (55.100.01) - WIRING HARNESS (55) - ELECTRICAL SYSTEMS

1

84248810

ELECTRIC CABLE

Main W/ Fusebox

1шт.

2

87645931

CABLE

Harness, Fender RH

1шт.

3

84248811

ELECTRIC CABLE

Head Lamp

1шт.

4

87316995

WIRE HARNESS

Fusible Link

1шт.

5

14560187

COLLAR,199mm L

7шт.

6

87335288

COLLAR

3шт.

7

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

M5

3шт.

8

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

9

82823137

HOSE CLIP

1шт.

10

5196943

WIRE HARNESS

Trailer Socket, Includes Ref. 11-13

1шт.

11

5189716

WIRE HARNESS

1шт.

12

5186014

CAP

1шт.

13

5186012

SOCKET/RECEPTACLE

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

9706690

NUT,M8 x 1.25, Cl 8

2шт.

17

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

3шт.

18

NS

NOT SERVICED

Collar, Clamp (87583439)

3шт.

19

82834107

COLLAR

Clamp (Engineering Not Available)

1шт.

NOT ILLUSTRATED

1шт.

20

47717383

DIA KIT, TRACTOR

Diode, 4 Spade, 3A

1шт.

NOT ILLUSTRATED

1шт.

20

84209114

DIODE,3A

2 Spade

1шт.

NOT ILLUSTRATED

1шт.

21

47453152

WIRE HARNESS

FENDER RH

1шт.

NOT ILLUSTRATED

1шт.
