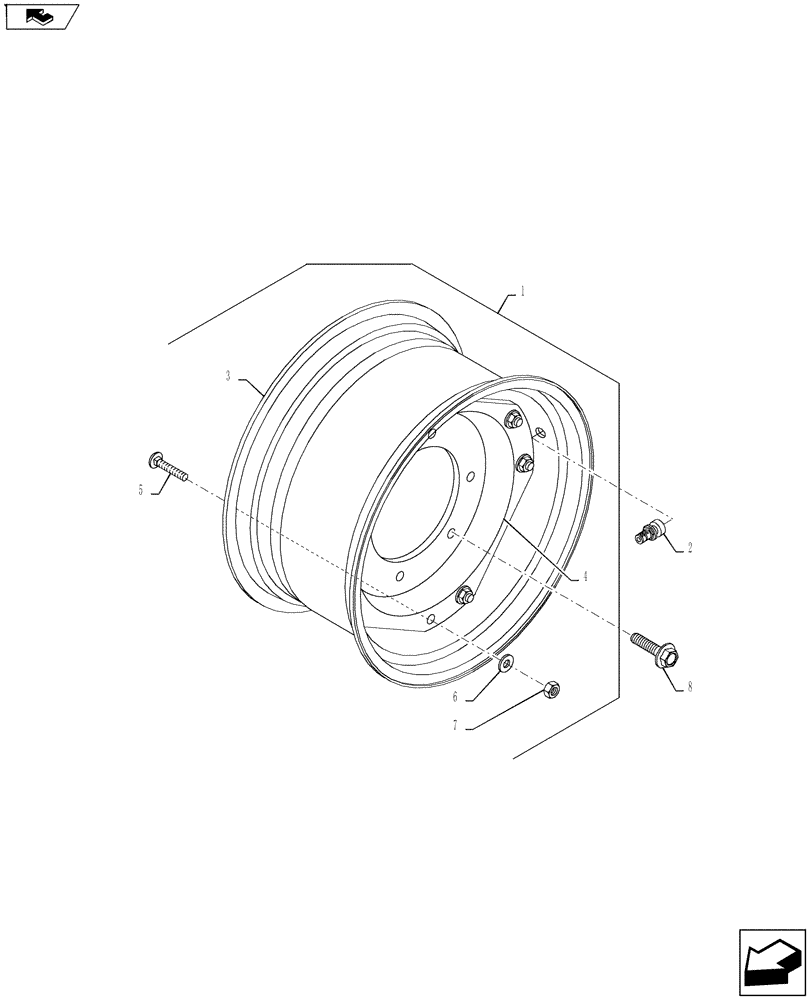

Запчасти Case IH FARMALL 55A (44.511.03) - REAR WHEELS (44) - WHEELS

1

84281339

WHEEL

11" x 28", Fits Tire Size 12.4 x 28, 2WD, FARMALL 45A

2шт.

1

84281339

WHEEL

11" x 28", Fits Tire Size 13.6 x 28, 4WD, FARMALL 45A

2шт.

1

84272919

WHEEL

12" x 28", Fits Tire Size 14.9 x 28, 2WD, FARMALL 55A

2шт.

1

84272919

WHEEL

12" x 28", Fits Tire Size 14.9 x 28, 4WD, FARMALL 55A

2шт.

1

84555383

Wheel Assy., Rear F - Orgn Painted 13 x 28. FARMALL 55A, Includes Ref 9,10

2шт.

2

86507333

VALVE STEM

2шт.

3

NSS

NOT SOLD SEPARAT

Rim, 2WD, FARMALL 45A/55A

2шт.

3

NSS

NOT SOLD SEPARAT

Rim, 4WD, FARMALL 45A/55A

2шт.

3

82824696

RIM

Wheel Assy Rear Rim W13 x 28. FARMALL 55

2шт.

4

NSS

NOT SOLD SEPARAT

Disc, 2WD, FARMALL 45A/55A

2шт.

4

NSS

NOT SOLD SEPARAT

Disc, 4WD, FARMALL 45A/55A

2шт.

4

84493452

Wheel Disc Rear - 2wd & 4wd, FARMALL 55A

2шт.

5

82822390

SCREW

Bolt, M16 x 1.5 x 80

16шт.

6

82822391

WASHER

M16

16шт.

7

15501421

NUT,Hex, M16 x 1.5

M16 x 1.5

16шт.

8

NS

NOT SERVICED

Screw, Hex. flange, M16 x 1.5 x 30, (84303241)

16шт.

9

84493517

WHEEL ASSY

Wheel Assy., Rear Blanco, W13 x 28 - 2wd & 4wd, FARMALL 55A. Not Illustrated

1шт.

10

84550717

WHEEL ASSY

Wheel Assy., Rear Silver, W13 x 28 - 2wd & 4wd, FARMALL 55A. Not Illustrated

1шт.

11

82834949

PAINT

Disc and Rim, Paint - Bianco. Not Illustrated

1шт.

12

87544942

PAINT

Disc and Rim, Case Silver. Not illustrated

1шт.
