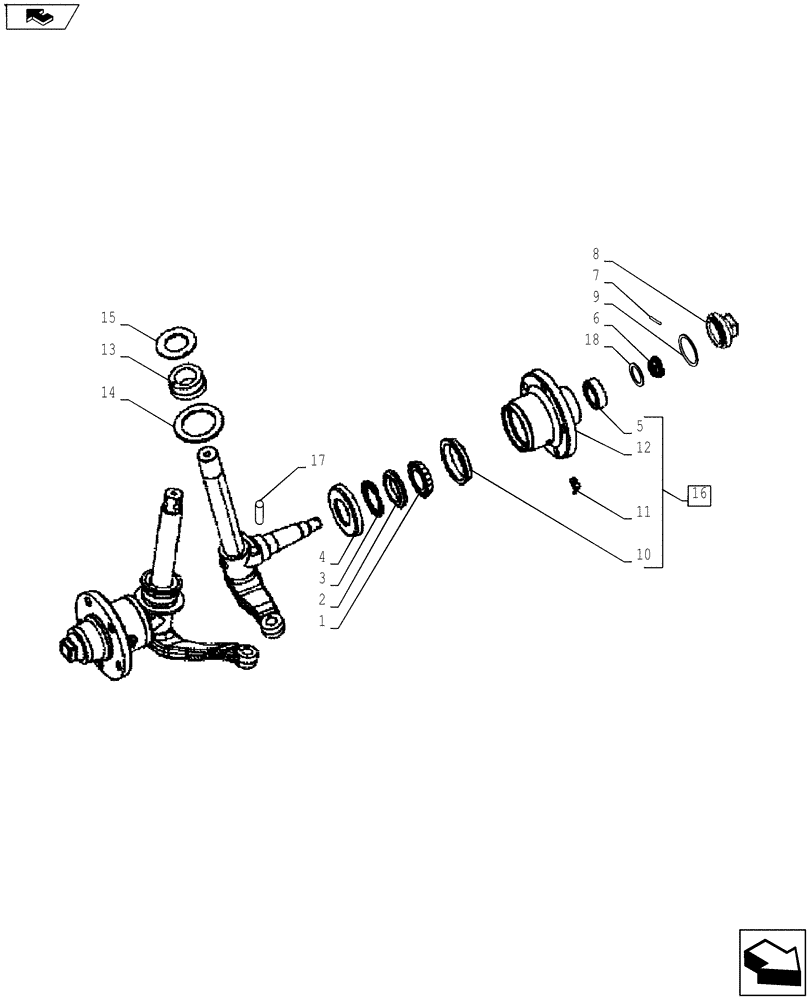

Запчасти Case IH FARMALL 55A (44.101.04[04]) - WHEEL HUB - 2WD (44) - WHEELS

1

82827043

TAPERED BEARING

Alternate Part {5132342}

2шт.

2

82834181

SEAL,50mm ID x 74mm OD x 10mm Thk

74 x 50 x 10

2шт.

3

82827173

SHIELD

Mud Cover

2шт.

4

82827172

COVER,50.1mm ID x 73.3mm OD x 4mm Thk

Mud Shield

2шт.

5

87480083

ROLLER BEARING,28.575 mm ID x 57.15 mm OD x 19.845 mm

Outer, Serial Range: -`0

2шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

5

84346529

ROLLER BEARING,28.57mm ID x 57.15mm OD x 19.84mm W

Outer, Tapered

2шт.

6

10724720

SLOTTED NUT,M20 x 1.5

M20 x 1.5

2шт.

7

10733801

COTTER PIN,M4 x 36

2шт.

8

82833551

PLUG,Cap hub front AXLE

Hub Cap

2шт.

9

14460180

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

10

87304741

SLEEVE,74mm ID x 90mm OD x 13.8mm L

Hub Front Wheel

2шт.

12

NS

NOT SERVICED

Front Wheel Hub {87699322}

2шт.

11

13407211

LUBE NIPPLE,M10 x 1

18 mm High, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

11

84351730

FITTING,M10 x 1

M10x1

2шт.

13

82833897

SEAL,57mm ID x 68mm OD x 9.8mm Thk

2шт.

14

82833509

SEAL,59mm ID x 85.4mm OD x 5mm Thk

Dust Cover Lower

2шт.

15

82824201

THRUST WASHER,38mm ID x 62mm OD x 27mm Thk

Gasket

2шт.

16

84168695

HUB

Assy., Sleeve, Includes Ref. 5, 10-12 The Outer Hub Is NSS

2шт.

17

82822563

PIN,4mm OD x 13mm L

Kunckle

2шт.

18

87692069

WASHER,20.5 mm ID x 49 mm OD x 3.4 mm

Bearing Steering Knuckle

2шт.
