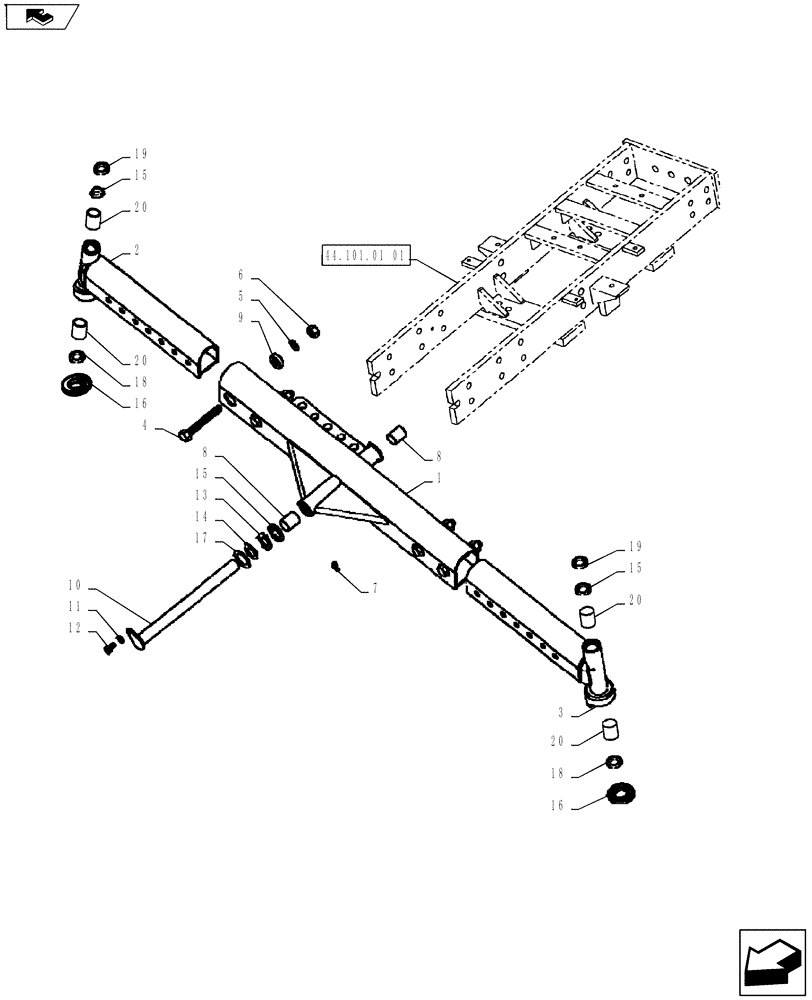

Запчасти Case IH FARMALL 55A (44.101.03) - FRONT AXLE - 2WD (55 H.P) (44) - WHEELS

1

82834070

BODY

1шт.

2

87645934

TRACK ROD END ASSY

RH (Includes Ref 21)

1шт.

3

87645961

TRACK ROD END ASSY

LH (Includes Ref 21)

1шт.

4

15981821

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

4шт.

5

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

M16

4шт.

6

15502611

NUT,Hex, M16 x 1.5

M16 x 1.5

4шт.

7

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

2шт.

8

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

2шт.

9

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

16.2 x 40 x 15

4шт.

10

87303683

PIN

Pivot Axle Assy.

1шт.

11

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

12

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

82833507

THRUST WASHER

2шт.

14

82833511

THRUST WASHER,38mm ID x 60mm OD x 2mm Thk

2шт.

15

82833544

SEAL,36.4mm ID x 50.9mm OD x 6mm Thk

30 x 40 x 7

4шт.

16

82833546

SEAL,59.9mm ID x 86mm OD x 10mm Thk

30 x 40 x 7

2шт.

17

82824584

SHIM

0.22 mm

1шт.

17

82824838

SHIM

0.125 mm

1шт.

17

82833727

SHIM

0.37 mm

1шт.

17

82833728

SHIM

0.32 mm

1шт.

17

82833729

SHIM

0.74 mm

1шт.

18

82833512

THRUST WASHER,38mm ID x 71.5mm OD x 4mm Thk

2шт.

19

82833508

SEAL,38.2mm ID x 66mm OD x 1mm Thk

2шт.

20

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

4шт.

21

13407211

LUBE NIPPLE,M10 x 1

18 MM HIGH (ALT ZG91U02000), Serial Range: -`0

2шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

21

84351730

FITTING,M10 x 1

M10 x 1

2шт.
