Запчасти Case IH FARMALL 55A (44.101.01[02]) - FRONT AXLE SUPPORT - 4WD (44) - WHEELS

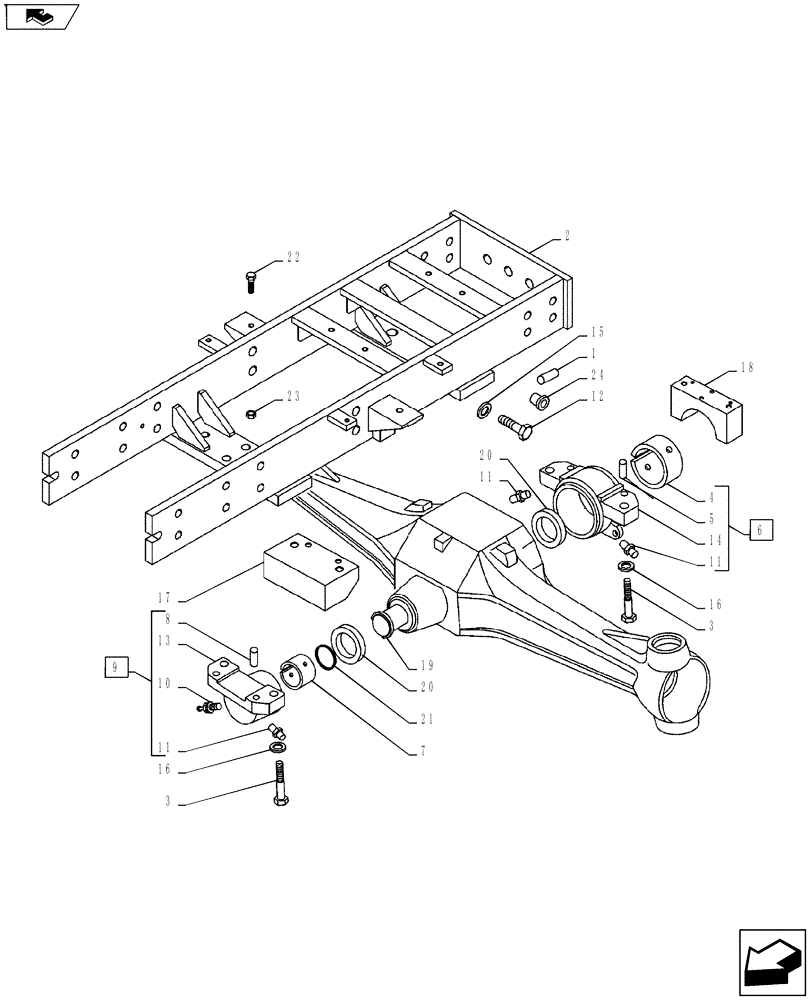

Схема запчастей Case IH FARMALL 55A - (44.101.01[02]) - FRONT AXLE SUPPORT - 4WD (44) - WHEELS
7
10
8
4
11
13
12
3
6
3
5
11
23
21
20
home
19
2
14
20
16
11
1
16
17
22
24
15
18
9

№

Артикул

Название

Примечание

Количество

1

87370424

DOWEL

4шт.

2

84143162

FRAME

Assy, Front Axle Mounting, Part Type 7 (Not a stocking part, order only as required), Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

2

84493453

FRAME

Frame Assy., Front Axle Mounting, Part Type 7 (Not a stocking part, order only as required), Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

2

84579405

FRAME

Frame Assy., Front Axle Mounting, Part Type 7 (Not a stocking part, order only as required)

1шт.

3

14271934

SCREW,Hex, M18 x 1.5 x 60mm, Cl 10.9

M18 x 1.5 x 60

6шт.

4

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

Rear

1шт.

4

84383500

Bushing, Rear, Serial Range: -`0

1шт.

Used With Ref 6 - Rear Hinge 84489818

1шт.

5

10837710

DOWEL,M10 x 25

2шт.

6

5140454

SUPPORT

Axle, Rear Hinge Assy. Includes Ref 4,5,10,11 & 14, Serial Range: -`0

1шт.

5140454 will sub to 84489818

1шт.

6

84342994

Axle, Rear Hinge Assy. Includes Ref 4,5,10,11 & 14

1шт.

7

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

Front

1шт.

7

84383501

Bushing, Front, Serial Range: -`0

1шт.

Used With Ref 9 - Front Axle Hinge 84342973

1шт.

8

10837710

DOWEL,M10 x 25

2шт.

9

5146124

SUPPORT

Axle, Front Hinge Assy. Includes Ref. 7,8,10,11 & 13, Serial Range: -`0

1шт.

5146124 will sub to 84342973

1шт.

9

84342973

Axle, Front Hinge Assy. Includes Ref. 7,8,10,11 & 13

1шт.

10

13411117

VALVE PRESSURE RELIE,M10, Black

M10

1шт.

11

13407211

LUBE NIPPLE,M10 x 1

2шт.

12

11255921

BOLT,Hex, M14 x 1.5 x 40, 8.8, Full Thd

18шт.

13

NSS

NOT SOLD SEPARAT

Axle, Front Hinge

1шт.

14

NSS

NOT SOLD SEPARAT

Axle, Rear Hinge

1шт.

15

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

18шт.

16

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

Lock Washer, M18

6шт.

17

84176133

SPACER

1шт.

18

84176134

SPACER

1шт.

19

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

20

5140455

SEALING RING

2шт.

21

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

22

82834828

SCREW,Hex, M16 x 2 x 50mm

M16 x 2 x 50

4шт.

23

82834829

NUT

M16 x 2

4шт.

24

84293166

PLUG

M8

1шт.

Выбрано товаров: 36
