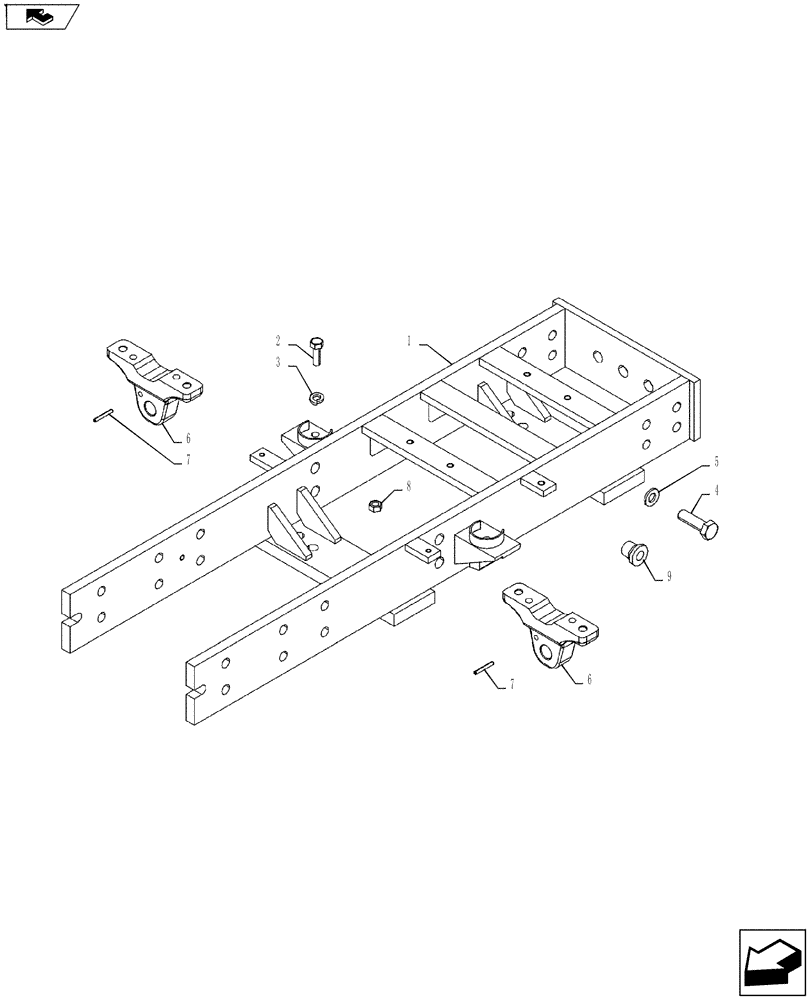

Запчасти Case IH FARMALL 55A (44.101.01[01]) - FRONT AXLE SUPPORT - 2WD (44) - WHEELS

1

87637556

FRAME

Front Axle Mounting 45 H.P, Part Type 7 (Not a stocking part, order only as required), Serial Range: -`0

1шт.

Requires serial number break

1шт.

1

84475589

FRAME

FRAME ASSY, Front Axle Mounting 45 H.P, Part Type 7 (Not a stocking part, order only as required), Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

1

84579403

FRAME

FRAME ASSY, Front Axle Mounting 45 H.P, Part Type 7 (Not a stocking part, order only as required)

1шт.

1

87645814

FRAME

Assy, Front Axle Mounting 55 H.P, Part Type 7 (Not a stocking part, order only as required), Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

1

84482714

FRAME

FRAME ASSY, Front Axle Mounting 55 H.P, Part Type 7 (Not a stocking part, order only as required), Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

1

84579404

FRAME

FRAME ASSY, Front Axle Mounting 55 H.P, Part Type 7 (Not a stocking part, order only as required)

1шт.

2

82834828

SCREW,Hex, M16 x 2 x 50mm

4шт.

3

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

4

11255921

BOLT,Hex, M14 x 1.5 x 40, 8.8, Full Thd

14шт.

5

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

14шт.

6

87637567

BODY

FARMALL 45A

2шт.

6

87645815

AXLE

FARMALL 55A

2шт.

7

10839910

DOWEL,15mm OD x 20mm L

2шт.

8

82834829

NUT

4шт.

9

84293166

PLUG

M8

1шт.
