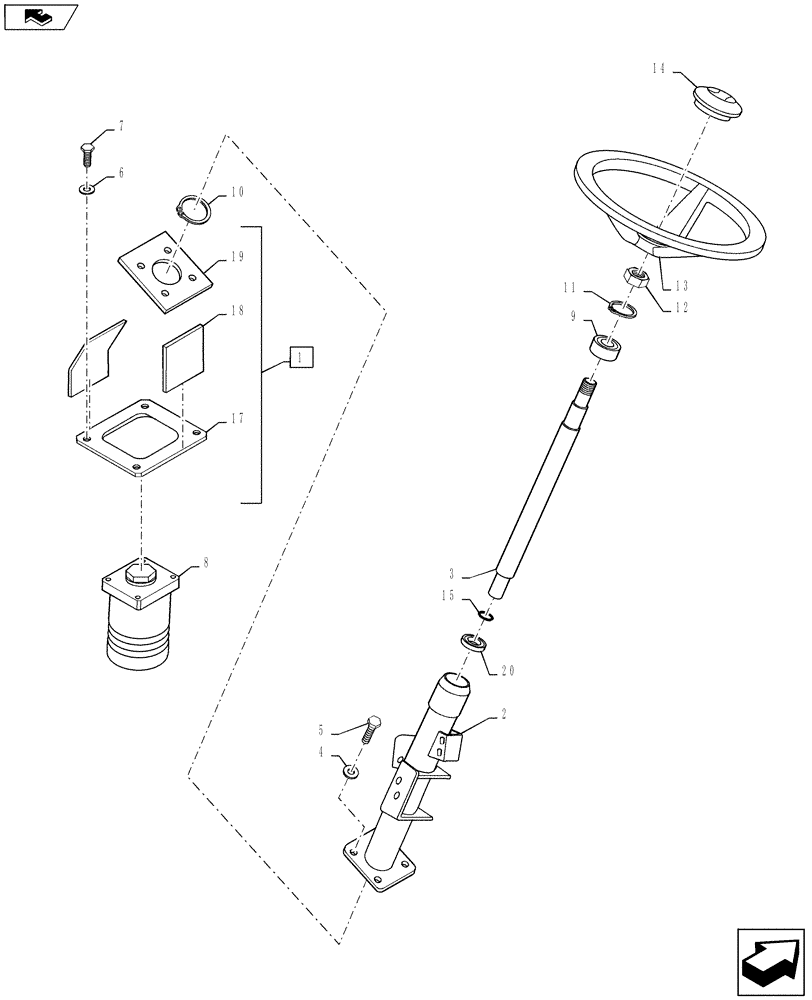

Запчасти Case IH FARMALL 55A (41.204.01) - STEERING COLUMN (41) - STEERING

1

84181086

BRACKET

Steering Column. Includes Ref 17 - 19

1шт.

2

84254470

STEERING COLUMN

Assy.

1шт.

3

84554014

STEERING SHAFT

Shaft, Steering Column

1шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

6

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

7

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

8

87578299

HYDRAULIC PUMP

Motor, Steering, 70 CC Reactive

1шт.

8

NSS

NOT SOLD SEPARAT

Motor, Hydraulic Assy, Steering Non Reactive ( P/N 84538269), Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

9

82824817

BALL BEARING,22 mm ID x 44 mm OD x 12 mm

22 x 44 x 12

1шт.

10

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

11

83957981

CIRCLIP

1шт.

12

12164111

NUT,M16, Cl 8

1шт.

13

82824105

STEERING WHEEL

1шт.

13

84292333

STEERING WHEEL

, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

14

87381681

PLUG

1шт.

15

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

16

84539292

MOTOR

Motor, Steering, 70CC Non Reactive, Inc. Ref 8, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET,Not Illustrated

1шт.

17

NSS

NOT SOLD SEPARAT

Base Plate (84577154)

1шт.

18

NSS

NOT SOLD SEPARAT

Steering Box, Plate Rear (84582941)

1шт.

19

NSS

NOT SOLD SEPARAT

Steering Box, Plate Top (84582940)

1шт.

20

84586672

SEAL,20mm ID x 45.3mm OD x 10mm Thk

Seal

1шт.
