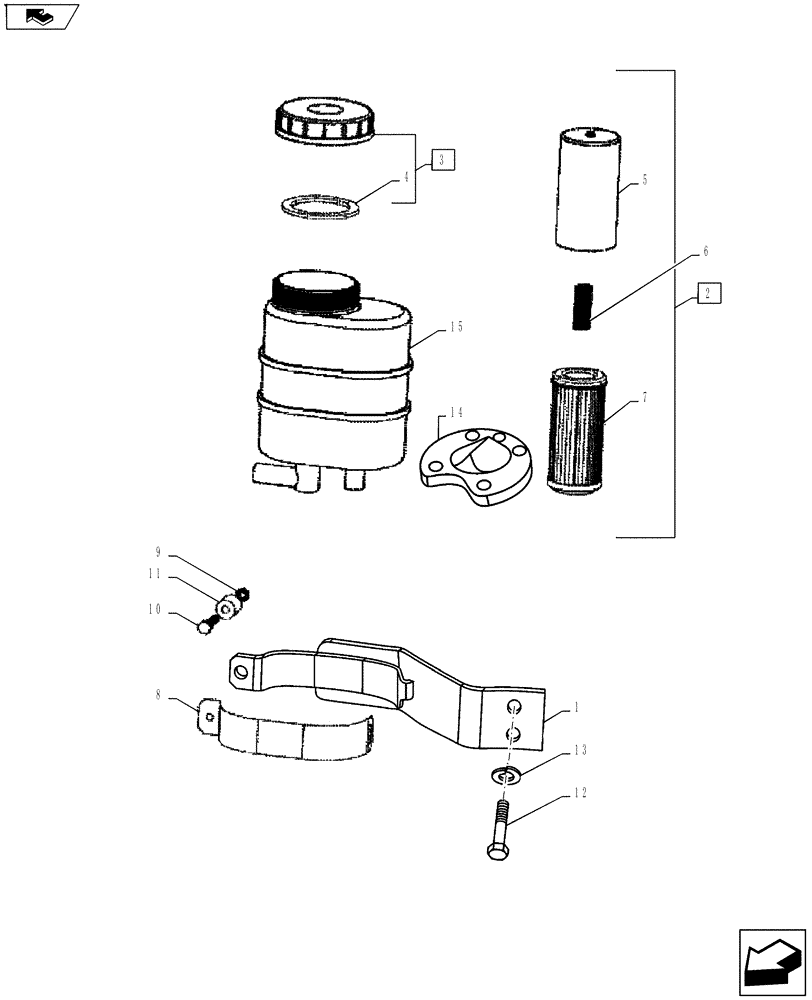

Запчасти Case IH FARMALL 55A (41.200.03) - POWER STEERING RESERVOIR (41) - STEERING

1

84298319

BRACKET

Mounting Oil Tank

1шт.

2

84264948

RESERVOIR, HYDRAULIC,0.85L

Includes Ref. 3, 5-7, 14-15

1шт.

3

84264968

PLUG

Includes Ref. 4

1шт.

4

5106750

SEAL,50mm ID x 66mm OD x 3mm Thk

D= 50 x 66 x 3

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

84264954

1шт.

6

5103058

SPRING,Cylindrical, 12.5mm OD x 70mm L

DO=14.9, DW=1.2, L=70

1шт.

7

1909143

FILTER

1шт.

8

5085974

BRACKET

1шт.

9

15896211

NUT,M6, Cl 8

1шт.

10

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

11

82824125

SPACER

Retaining Feed Tank

1шт.

12

4798845

BOLT,M8 x 1.25 x 16.50mm

M8 x 20, 8.8

2шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

14

NSS

NOT SOLD SEPARAT

Buffle, Steering Oil Reservoir

1шт.

84345190

1шт.

15

NSS

NOT SOLD SEPARAT

Tank

1шт.

84264959

1шт.

16

84273069

TRANSMISSION OIL

Oil Transmission, 56 Series NAR. Not Illustrated

2шт.
