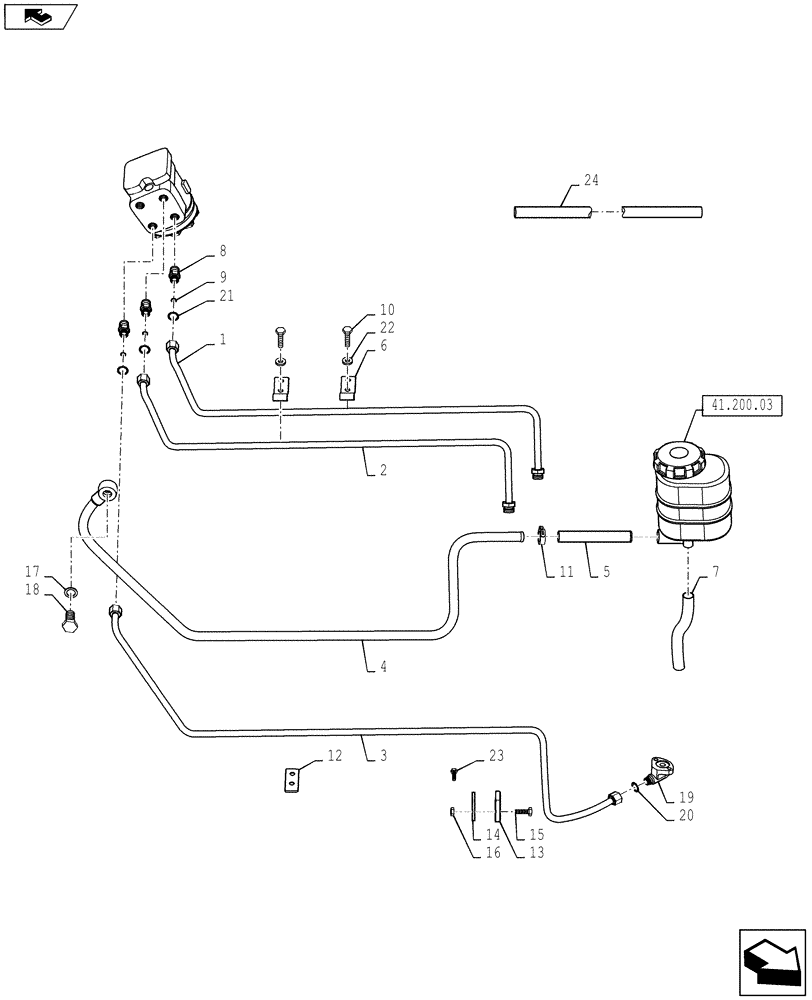

Запчасти Case IH FARMALL 55A (41.200.02) - STEERING RESERVOIR TO PUMP CIRCUIT (41) - STEERING

1

87669511

RIGID TUBE,9.58 mm DIA

Rigid Tube, Motor To Cylinder

1шт.

2

87669512

RIGID TUBE,0.76" DIA

Rigid Tube, Motor To Cylinder

1шт.

3

87669514

PRESSURE PIPE

Presure Pipe, Motor To Pump

1шт.

4

87669515

RIGID TUBE,15.5 mm DIA

Rigid Tube, Motor To Tank

1шт.

5

87303082

FLEXIBLE HOSE,300.00 mm

Oil Tank Steering

1шт.

5

84512376

HOSE,16mm ID x 286mm L, SAE 100R6

Hose, Oil Tank Steering ( Not used this application), Serial Range: -`0

1шт.

Requires serial number break

1шт.

6

87561271

BRACKET

Assy, Upper

2шт.

7

87600546

HOSE,15.5mm ID x 260mm L, SAE 100R6

Tank To Pump

1шт.

7

84543294

HOSE

Hose, Oil Tank Steering, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

8

82936641

ADAPTER

Tube to Motor

3шт.

9

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

3шт.

10

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

6шт.

11

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

Worm Gear 20 x 32

4шт.

12

87561273

BRACKET

1шт.

13

5126927

CLIP

Piping Hydraulic Power Steering

1шт.

14

4999560

COLLAR

Upper Piping

1шт.

15

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

16

15896211

NUT,M6, Cl 8

5шт.

17

10257460

SEAL,M20.3 x 26 x 1.5

2шт.

18

87329602

BANJO BOLT

3/4

1шт.

19

87558442

SUPPORT

Adaptor, Delivery Front

1шт.

20

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

21

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

90 Duro

3шт.

22

10571579

LOCK WASHER,M6

9шт.

23

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

24

87391328

HOSE,15.88mm ID x 140mm L, SAE 30R6

Oil Tank Steering

1шт.

24

84511883

HOSE,16mm ID x 140mm L, SAE 30R6

Hose, Oil Tank Steering, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.
