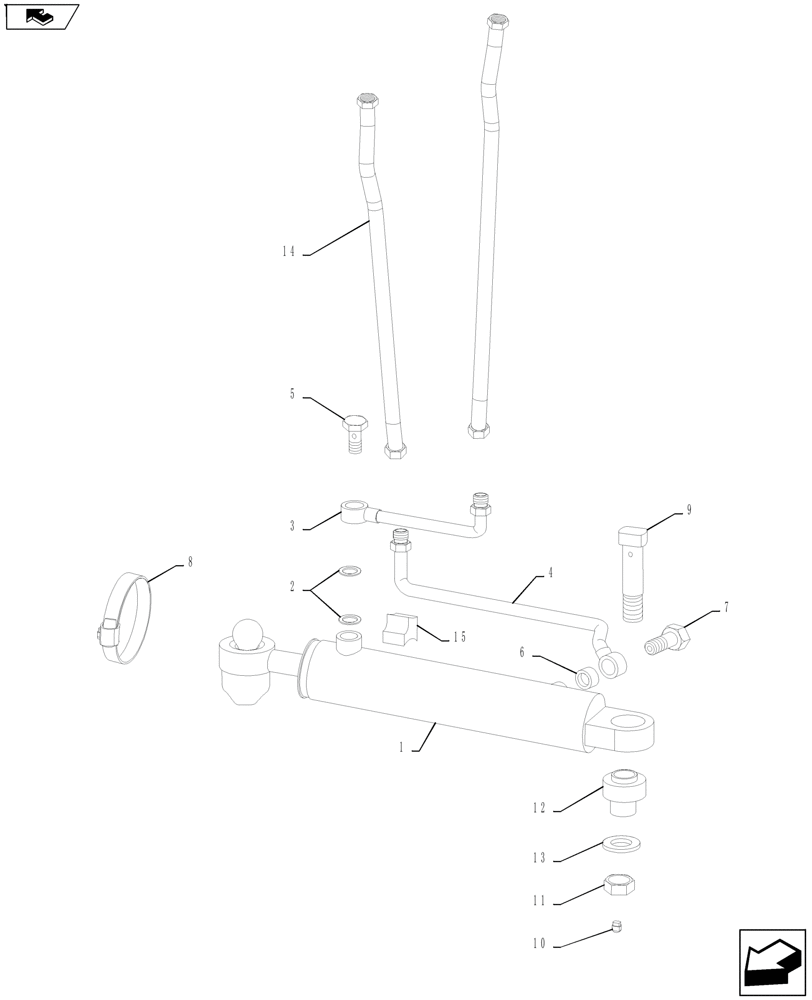

Запчасти Case IH FARMALL 55A (41.200.01[02]) - STEERING CYLINDER HOSES - 2WD (41) - STEERING

1

84249611

STEERING CYLINDER,22mm Rod, 215mm Stroke

Servo

1шт.

2

10280060

SEAL,M14.2 x 20 x 1.5

4шт.

3

5120997

HYD TUBE

LH

1шт.

4

5120999

TUBE

RH

1шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

1шт.

6

4999561

SPACER

D=14.2 x 22 x 13

1шт.

7

4999610

BANJO BOLT

M14 x 1.5 x 44

1шт.

8

13000990

COLLAR,60mm - 80mm, Worm Gear

60 x 80

1шт.

9

4997697

PIN,20mm OD x 80mm L

D20 x 80

1шт.

10

82824207

LUBE NIPPLE

1/4 x 28 Alternate Part {13406911}

1шт.

11

12576011

NUT,Hex, M18 x 1.5

M18 x 1.5

1шт.

12

5102972

BUSHING,20mm ID x 42mm OD x 41mm L

Cylinder Pivot

1шт.

13

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

1шт.

14

5126507

FLEXIBLE HOSE,8mm ID x 510mm L, SAE 100R2

M16 x 1.5, D8 x 510

2шт.

Requires Serial Number Break

1шт.

14

84597135

HOSE

FLEXIBLE HOSE, Steering Cylinder, M16 x1.5, D8 x 510

2шт.

15

5121043

SPACER

Steering Cylinder Hoses

1шт.
