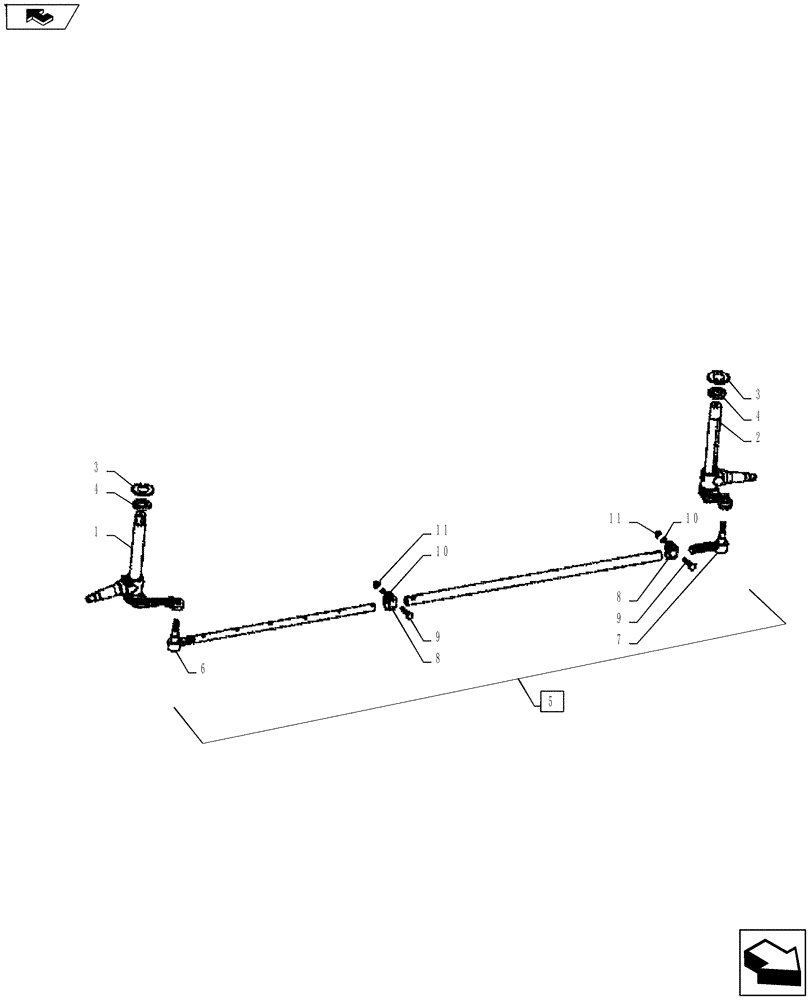

Запчасти Case IH FARMALL 55A (41.106.01[02]) - TIE-ROD AND SPINDLES - 2WD (41) - STEERING

1

87657446

STEERING KNUCKLE

RH

1шт.

2

87659424

SPINDLE

LH

1шт.

3

82833508

SEAL,38.2mm ID x 66mm OD x 1mm Thk

Upper

2шт.

4

82833509

SEAL,59mm ID x 85.4mm OD x 5mm Thk

Lower

2шт.

5

84307807

TIE-ROD

Includes Ref. 6-11 Smooth Tube NSS Order Tie Rod Assembly

1шт.

6

9970790

TRACK ROD END ASSY

LH

1шт.

7

9970791

TRACK ROD END ASSY

RH

1шт.

8

4997704

CLAMP

2шт.

9

11343824

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

10

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

11

12164724

NUT,M10 x 1.25, Cl 10

2шт.
