(37.140.07[01]) - FRONT WEIGHT CARRIER

Запчасти Case IH FARMALL 55A (37.140.07[01]) - FRONT WEIGHT CARRIER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

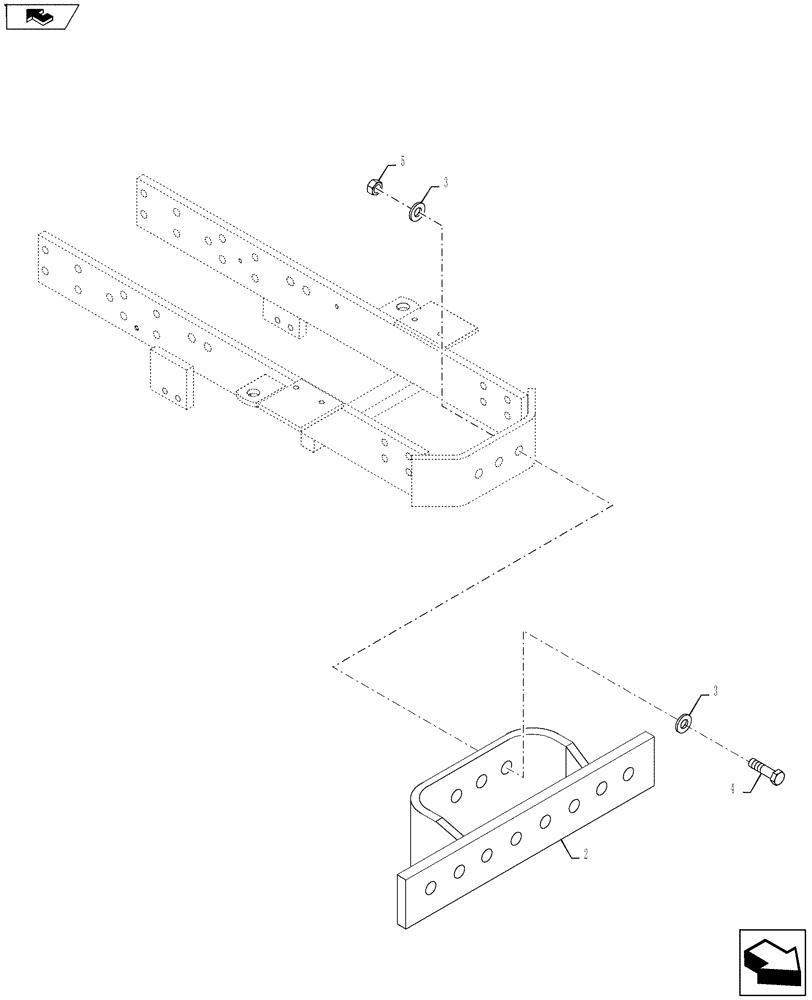

Схема запчастей Case IH FARMALL 55A - (37.140.07[01]) - FRONT WEIGHT CARRIER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
home
3
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718233016

DIA KIT, ADD PROD

Front Weight Carrier (Will Hold Up To (5) 60 lb. Weights (710215016) or (5) 100 lb. Weights (718215036)

1шт.

2

86404755

FRONT WEIGHT CARRIER

Bracket

1шт.

3

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

6шт.

4

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

3шт.

5

100020

NUT,M16 x 2.0, Cl 8

3шт.

Выбрано товаров: 5
