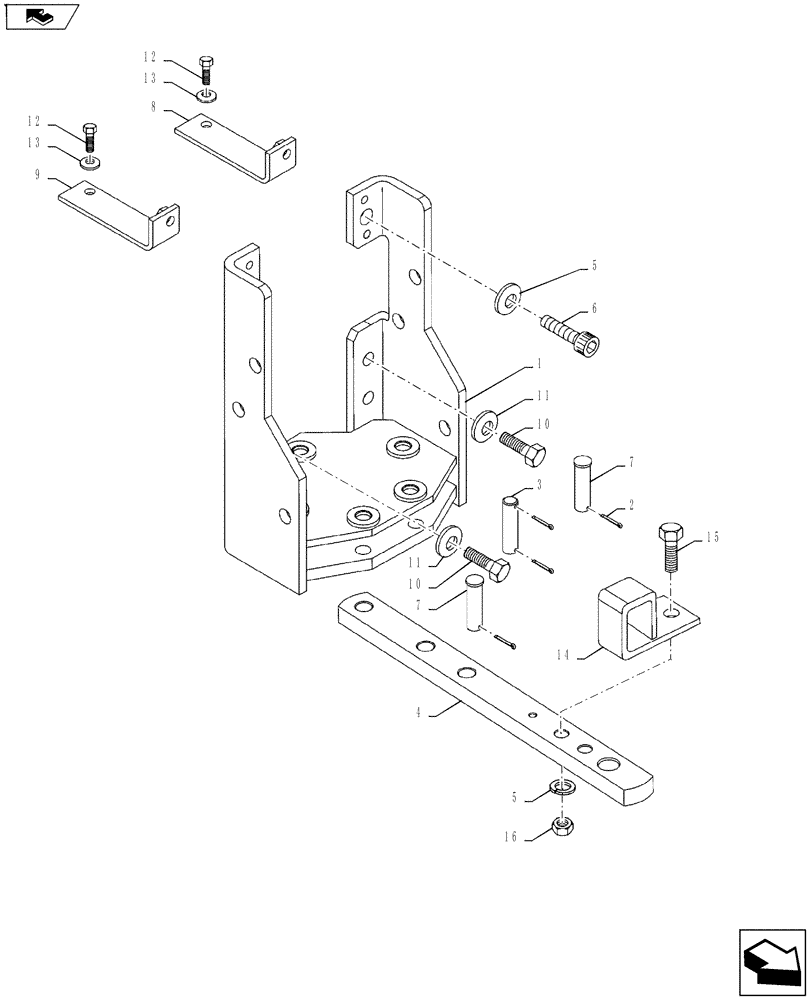

Запчасти Case IH FARMALL 55A (37.100.01) - SWINGING DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87490020

BRACKET

Drawbar

1шт.

2

5112606

COTTER PIN,2.5mm OD x 66.5mm L

Split

4шт.

3

87681274

PIN,25mm OD x 87mm L

1шт.

4

87370434

DRAWBAR

Swinging

1шт.

5

10572179

LOCK WASHER,M16

6шт.

6

82834828

SCREW,Hex, M16 x 2 x 50mm

Socket Hd, M16 x 1.5 x 40

6шт.

7

87680771

PIN

2шт.

8

87491127

BODY

Drawbar Support RH

1шт.

9

87491128

BODY

Drawbar Support LH

1шт.

10

14254531

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9

M14 x 1.5 x 35

2шт.

11

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

12

87536544

SCREW,Hex, M16 x 1.5 x 30mm, Gr 10.9

M16 x 1.5 x 30

2шт.

13

10520221

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

14

87302456

SUPPORT

Intermediate Safety Chain

1шт.

15

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

1шт.

16

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16 x 1.5

1шт.
